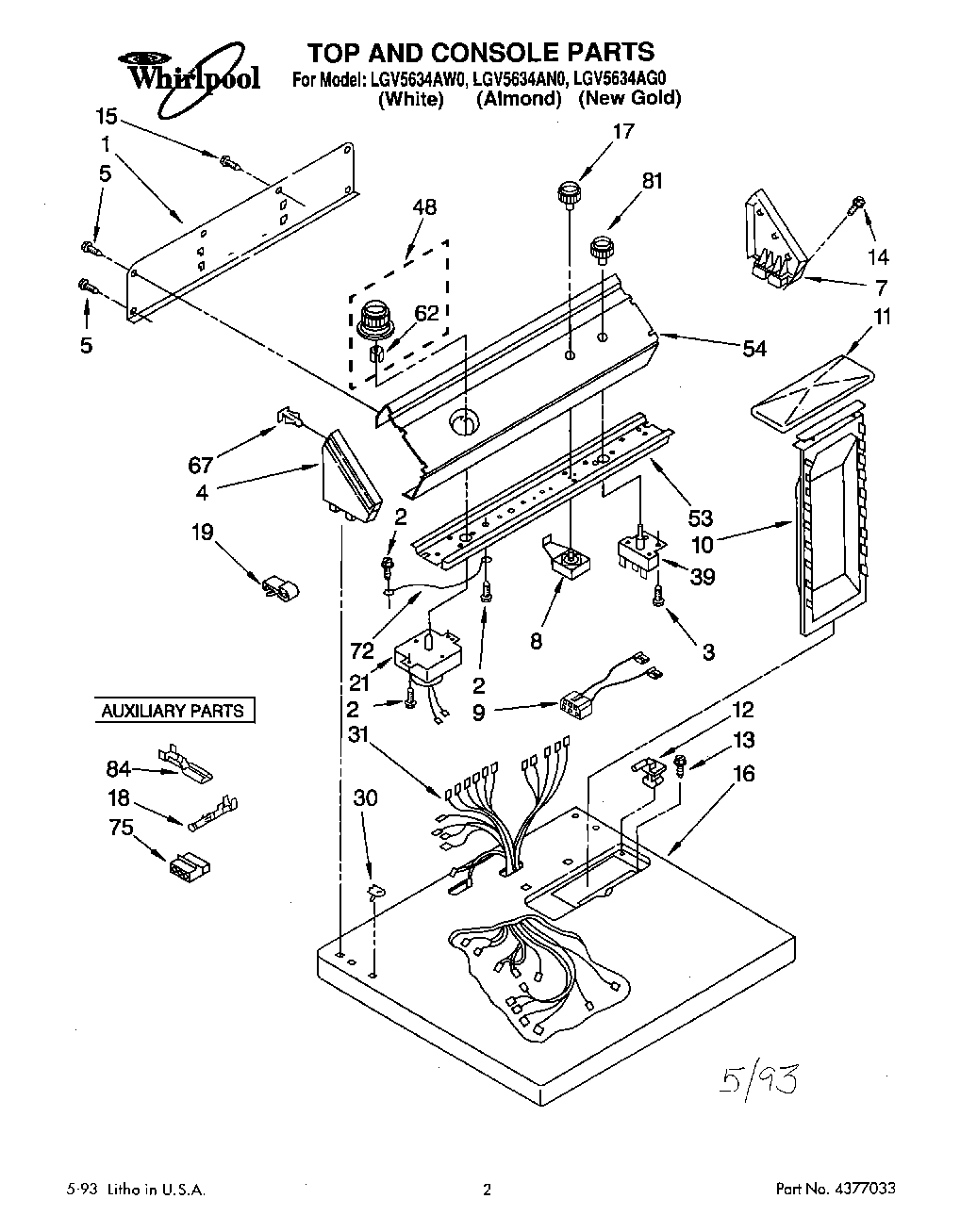

LGV5634AG0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGV5634AG0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGV5634AG0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Golden Harvest
Dryer
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Golden Harvest (Uncut)
Almond (Uncut)
Leveler (Thinner)
Guide, Use & Care
WP72107 Whirlpool Touchup
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
WPL LIT4377033
Instructions, Installation
799344 Whirlpool Refrigerator Paint
1Panel, Rear Console
2WPW10139210 Whirlpool Screw
3WP488729 Whirlpool Refrigerator Door Screw
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (Black/Chrome)
5WP489069 Whirlpool Compactor Screw
7WPL 3358518
7Cap, End (R.H.) (Almond)
7Cap, End (R.H.) (White)
8Switch, Temperature
98283286 Whirlpool Wire Harness
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP693995 Whirlpool Screw
16Top (Almond)
16Top (New Gold)
16Top (White)
17KNOB
18WP94614 Whirlpool Terminal
19Clip, Retainer
21WP3976568 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39(Alt.)
39Switch, Push-To-Start
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
54Panel, Control (New Gold)
54Panel, Control (Almond)
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81Knob, Push-To-Start
84WP596797 Whirlpool Terminal
