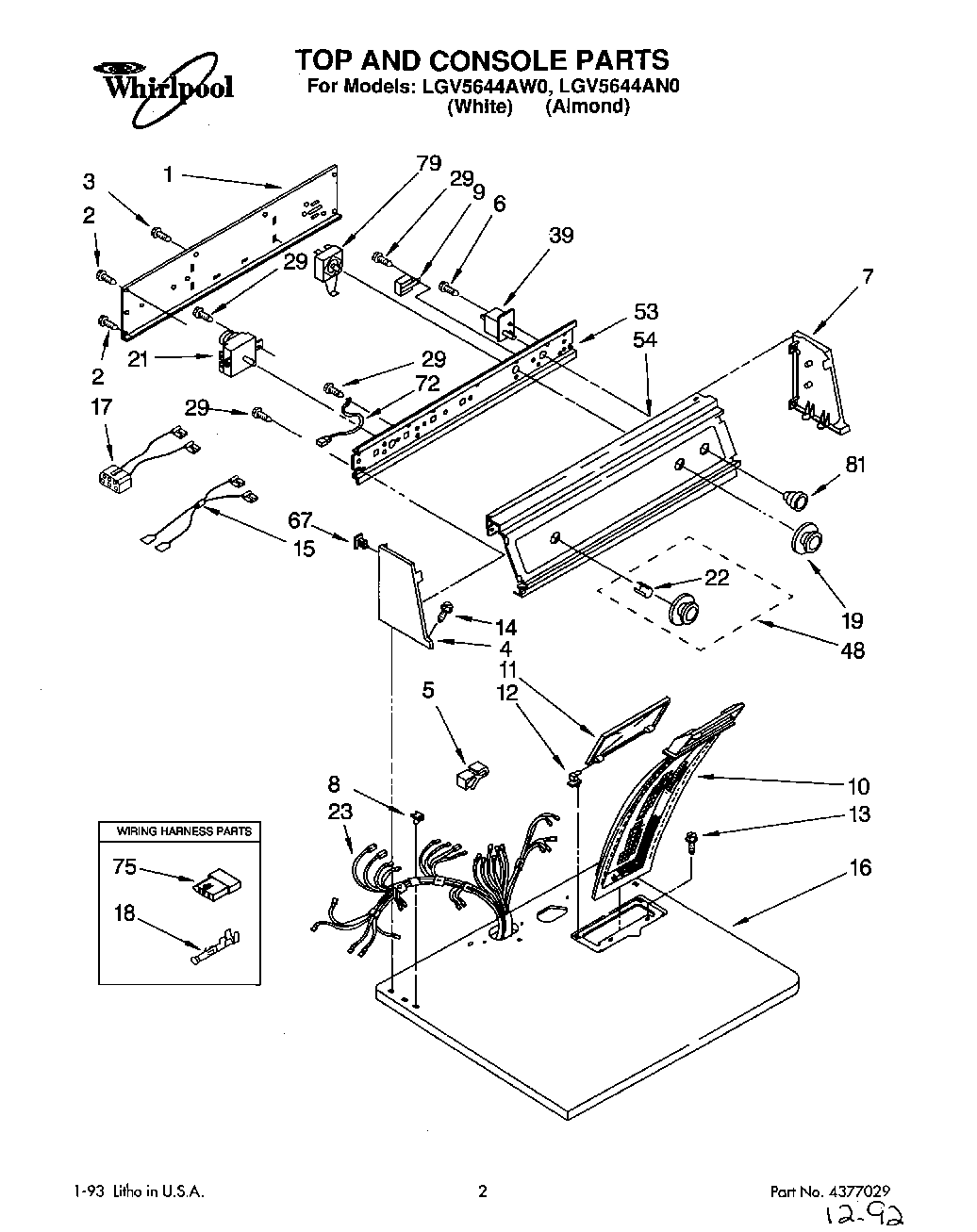

LGV5644AN0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Instructions, Installation
	Guide, Use & Care
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label, Operating Instructions
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	WPL LIT4377029
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	Clip, Retainer
6	WP488729 Whirlpool Refrigerator Door Screw
7	Cap, End (R.H.) (White)
7	Cap, End (R.H.) (Almond)
8	WP357213 Whirlpool Hinge Stopper
9	WP694419 Whirlpool Buzzer Adjuster
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Wire Jumper Assembly
16	Top (Almond)
16	Top (White)
17	8539893 Whirlpool Wire Harness
18	WP94614 Whirlpool Terminal
19	KNOB
21	WP3396047 Whirlpool Timer
22	WP688805 Whirlpool Spring Clip
23	Harness, Wiring
29	WPW10139210 Whirlpool Screw
39	Relay, Push-To-Start
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	WP3399639 Whirlpool Switch
81	Knob, Push-To-Start
