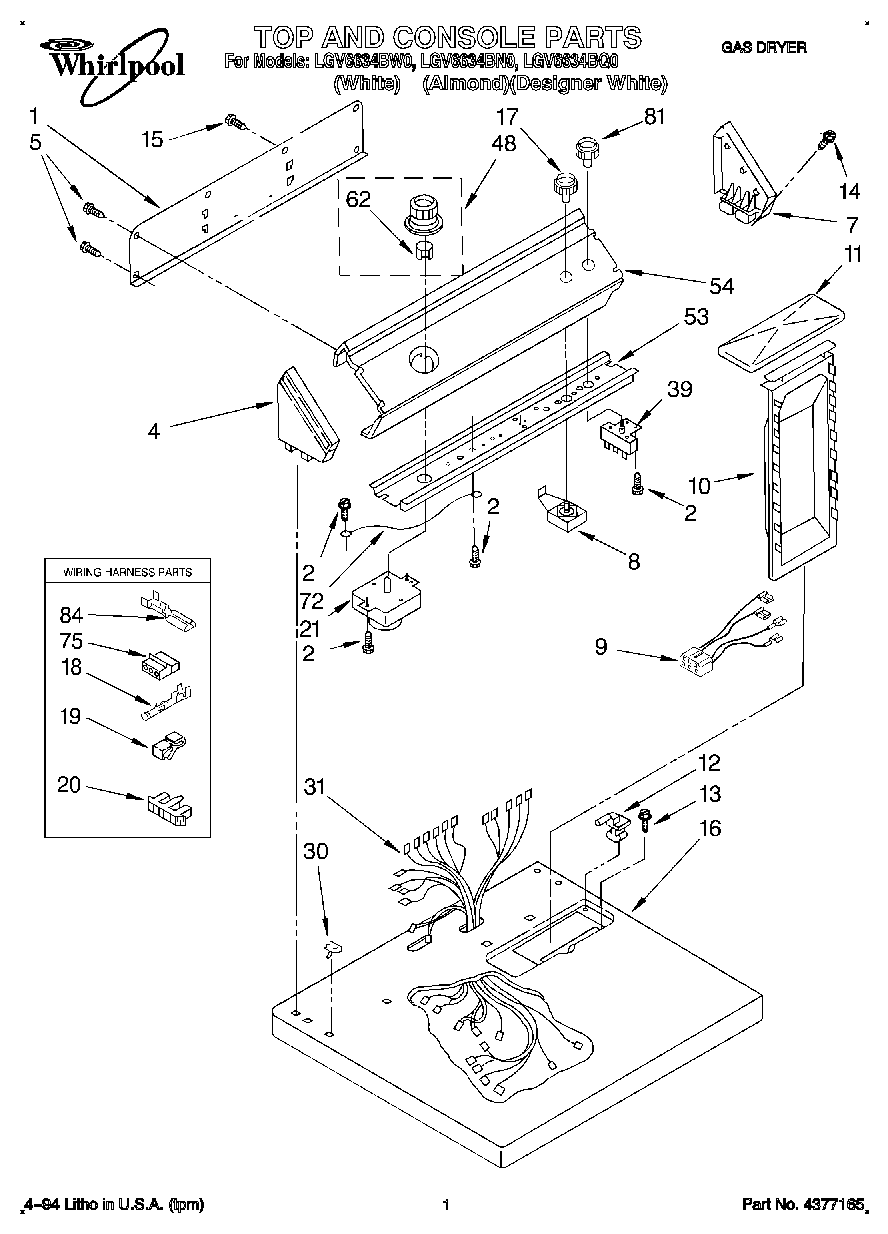

LGV6634BW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGV6634BW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGV6634BW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Almond (Uncut)
Instructions, Installation
Guide, Use & Care
799344 Whirlpool Refrigerator Paint
Label, Wiring Diagram
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
350956 Whirlpool Spray Assembly
Dryer
350938 Whirlpool Spray Gun
Leveler (Thinner)
1Panel, Rear Console
2WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5WP489069 Whirlpool Compactor Screw
7Cap, End (R.H.) (Almond)
7Cap, End (R.H.) (White)
8Switch, Temperature
98283286 Whirlpool Wire Harness
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP693995 Whirlpool Screw
16Top (White)
16Top (Almond)
17KNOB
17WP3957796 Whirlpool Knob
18WP94614 Whirlpool Terminal
19Clip, Retainer
20Connector, Timer
21WP3976568 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39Switch, Push-To-Start
39(Alt.)
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (FOR MODEL LGR6634BQ0)
54Power-Cord
54Panel, Control (LGV6634BN0)
62WP688805 Whirlpool Spring Clip
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81WP3957800 Whirlpool Knob
81Knob, Push-To-Start
84WP596797 Whirlpool Terminal
