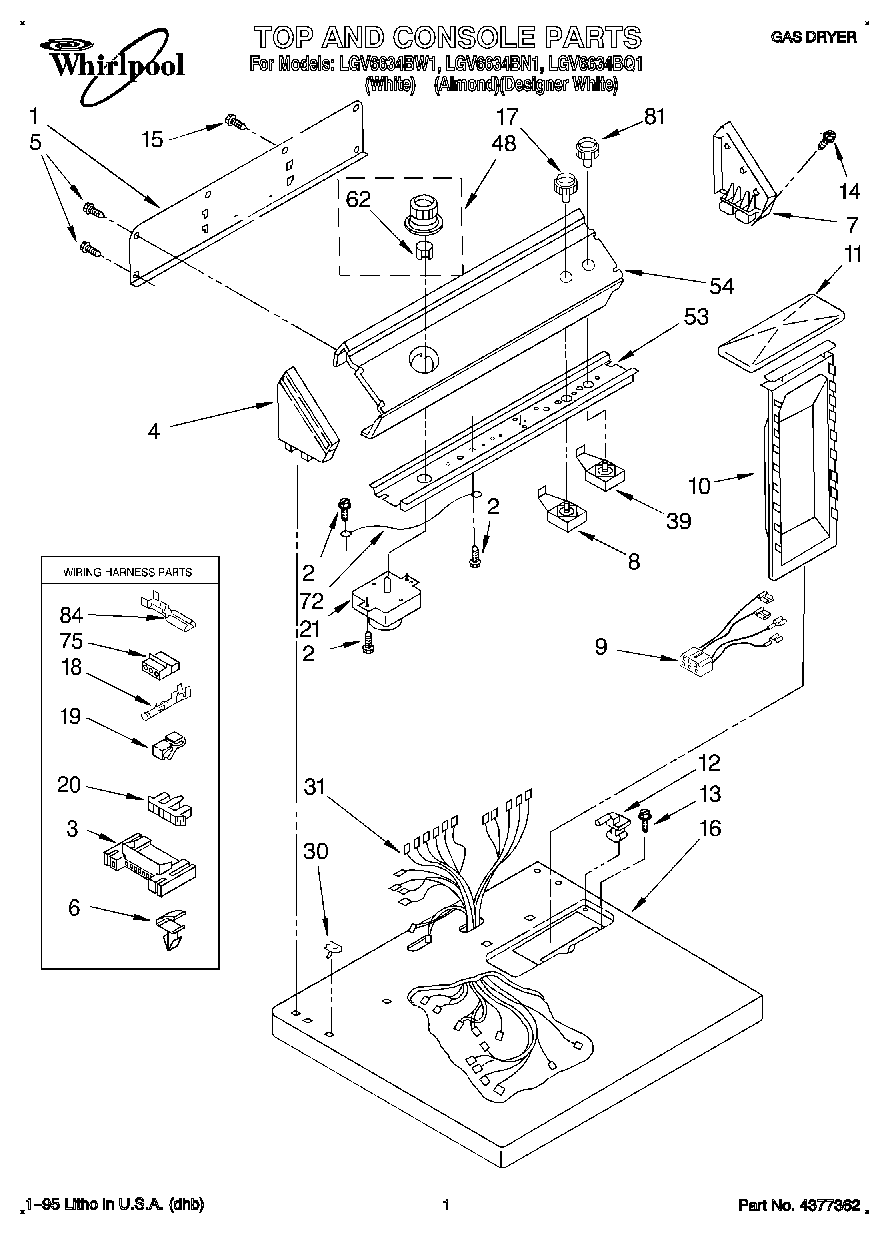

LGV6634BW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	Guide, Use & Care
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Label, Wiring Diagram
	350956 Whirlpool Spray Assembly
	Dryer
	350938 Whirlpool Spray Gun
	Instructions, Installation
1	Panel, Rear Console
2	WPW10139210 Whirlpool Screw
3	3395683 Whirlpool Connector
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	WP489069 Whirlpool Compactor Screw
6	WP3394427 Whirlpool Clip
7	Cap, End (R.H.) (White)
7	Cap, End (R.H.) (Almond)
8	Switch, Temperature
9	8283286 Whirlpool Wire Harness
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP693995 Whirlpool Screw
16	Top (Almond)
16	Top (White)
17	KNOB
17	WP3957796 Whirlpool Knob
19	Clip, Retainer
20	Connector, Timer
21	WP3976568 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Power-Cord
54	Panel, Control (FOR MODEL LGR6634BQ0)
54	Panel, Control (LGV6634BN0)
62	WP688805 Whirlpool Spring Clip
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
81	WP3957800 Whirlpool Knob
81	Knob, Push-To-Start
84	WP94614 Whirlpool Terminal
