LGV6634DQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL
Written by
in

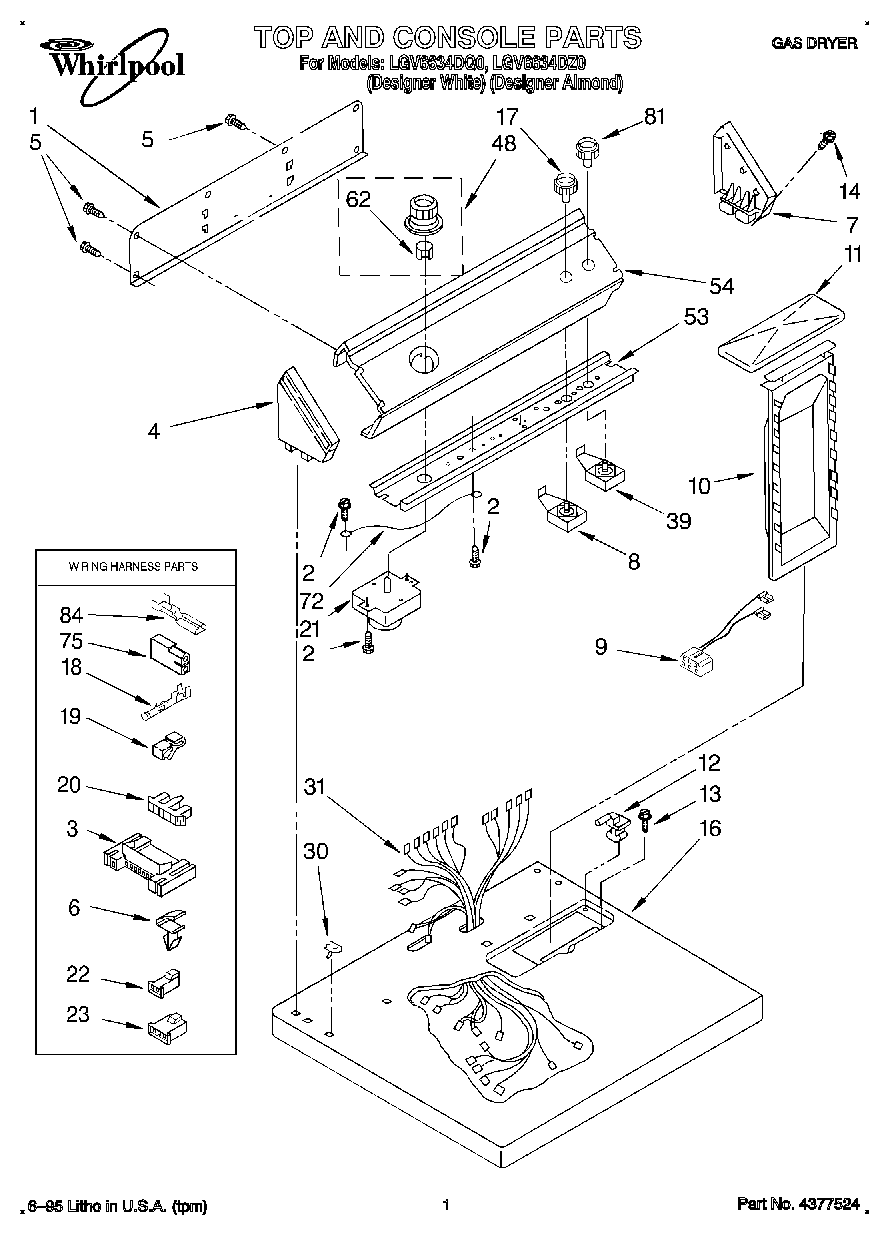

LGV6634DQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL
Products
Position
Product
350930 Whirlpool White Spray Paint
Instructions, Installation
Label, Wiring Diagram
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Dryer
72017 Whirlpool Appliance Touch-Up Paint White
Almond (Uncut)
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Guide, Use & Care
1
Panel, Rear Console
2
WPW10139210 Whirlpool Screw
3
3395683 Whirlpool Connector
4
Cap, End (L.H.) (Almond)
4
Cap, End (L.H.) (White)
5
WP693995 Whirlpool Screw
6
WP3394427 Whirlpool Clip
7
Cap, End (R.H.) (Almond)
7
Cap, End (R.H.) (White)
8
3399638 Whirlpool Switch
9
8283286 Whirlpool Wire Harness
10
339392V Whirlpool Dryer Lint Filter Screen
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (White)
12
WPW10044470 Whirlpool Hinge Assembly
12
WPW10044480 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WP388326 Whirlpool Screw
16
Top (White)
16
Top (Almond)
17
WP3957796 Whirlpool Knob
17
3957797 Whirlpool Knob
19
Clip, Retainer
20
Connector, Timer
21
WP3976568 Whirlpool Timer
22
Connector, 2-Position (Gas Valve)
23
Connector, 3-Position (Gas Valve)
30
WP357213 Whirlpool Hinge Stopper
31
Harness, Wiring
39
WP3395382 Whirlpool Push To Start Switch
48
WP3957752 Whirlpool Knob
48
3957753 Whirlpool Knob
53
Bracket, Control
54
Panel, Control (LGR6634DZ1)
54
Panel, Control (LGR6634DQ1)
62
WP688805 Whirlpool Spring Clip
72
Wire, Ground
75
Receptacle, Latching (2-Way) (Uses Terminal 94614)
81
WP3957800 Whirlpool Knob
84
WP94614 Whirlpool Terminal
←
