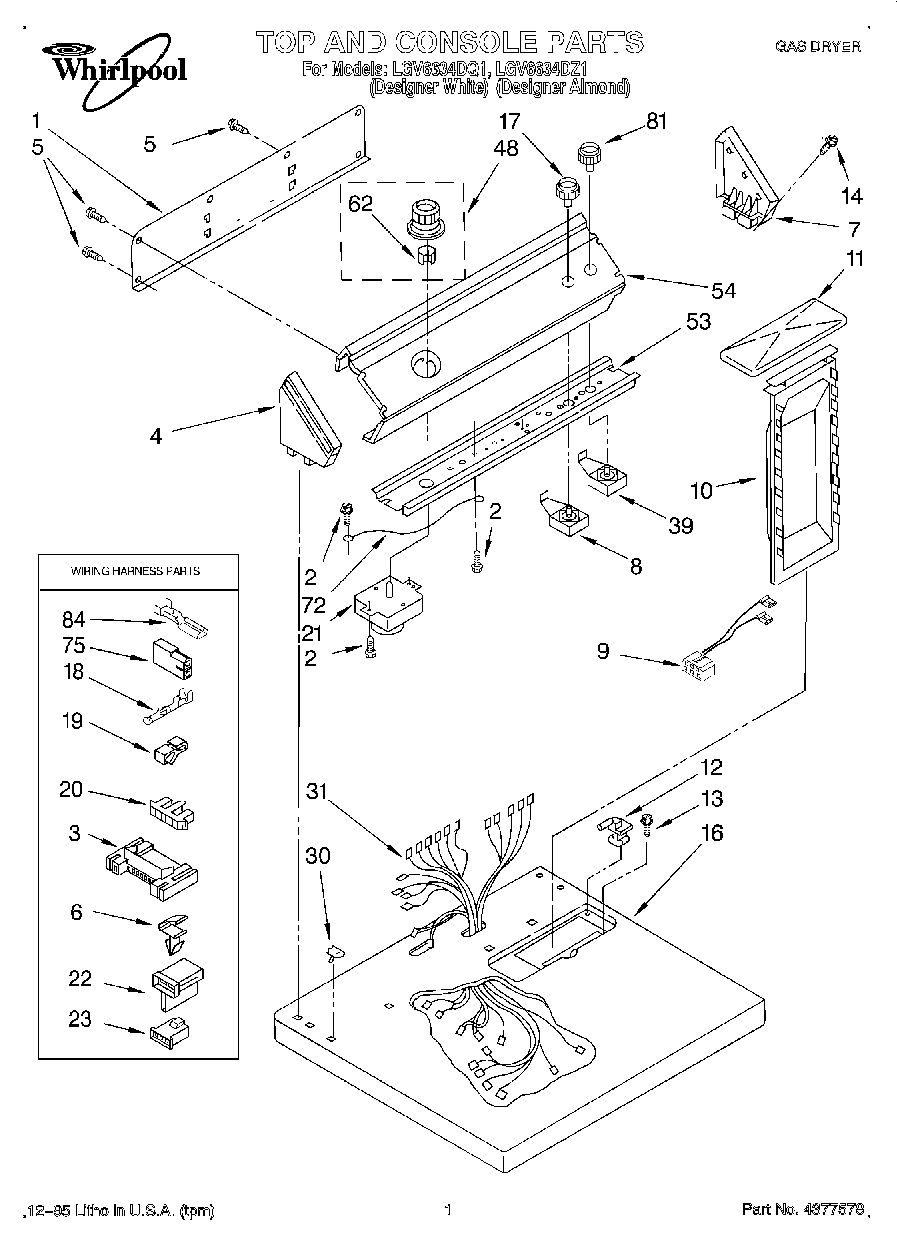

LGV6634DQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Instructions, Installation
Label, Wiring Diagram
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Dryer
72017 Whirlpool Appliance Touch-Up Paint White
Almond (Uncut)
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Guide, Use & Care
1Panel, Rear Console
2WPW10139210 Whirlpool Screw
33395683 Whirlpool Connector
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5WP693995 Whirlpool Screw
6WP3394427 Whirlpool Clip
7Cap, End (R.H.) (Almond)
7Cap, End (R.H.) (White)
83399638 Whirlpool Switch
98283286 Whirlpool Wire Harness
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (White)
16Top (Almond)
173957797 Whirlpool Knob
17WP3957796 Whirlpool Knob
19Clip, Retainer
20Connector, Timer
21WP3976568 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
53Bracket, Control
54Panel, Control (LGR6634DZ1)
54Panel, Control (LGR6634DQ1)
62WP688805 Whirlpool Spring Clip
72Wire, Ground
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
81WP3957800 Whirlpool Knob
84WP94614 Whirlpool Terminal
