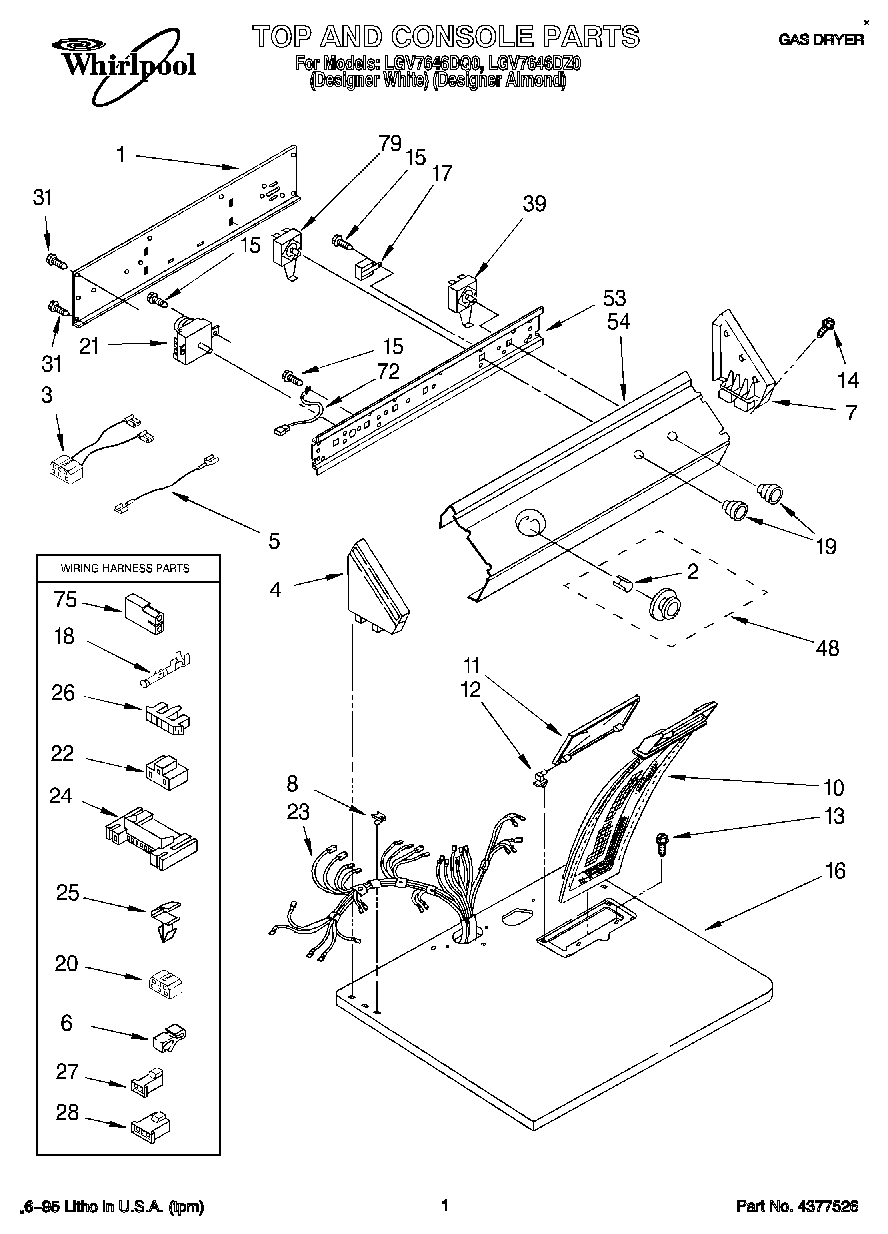

LGV7646DZ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Guide, Use & Care
Dryer
Instructions, Installation
Label, Wiring Diagram
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
1Panel, Rear Console
2WP688805 Whirlpool Spring Clip
38539893 Whirlpool Wire Harness
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
5Wire, Jumper (Black)
6Clip, Retainer
7Cap, End (R.H.) (Almond)
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WPW10139210 Whirlpool Screw
16Top (White)
16Top (Almond)
17WP694419 Whirlpool Buzzer Adjuster
18WP94614 Whirlpool Terminal
193957797 Whirlpool Knob
19WP3957796 Whirlpool Knob
20Block, Disconnect
21WP3976574 Whirlpool Timer
223401144 Whirlpool Connector
23Harness, Wiring
243395683 Whirlpool Connector
25WP3394427 Whirlpool Clip
26Connector, Timer
27Connector, 2-Position (Gas Valve)
28Connector, 3-Position (Gas Valve)
31WP693995 Whirlpool Screw
39WP3398095 Whirlpool Dryer Start Relay
483957753 Whirlpool Knob
48WP3957752 Whirlpool Knob
53Bracket, Control
54WPL 3399034
54WPL 3399033
72Wire, Ground
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
79WP3399639 Whirlpool Switch
