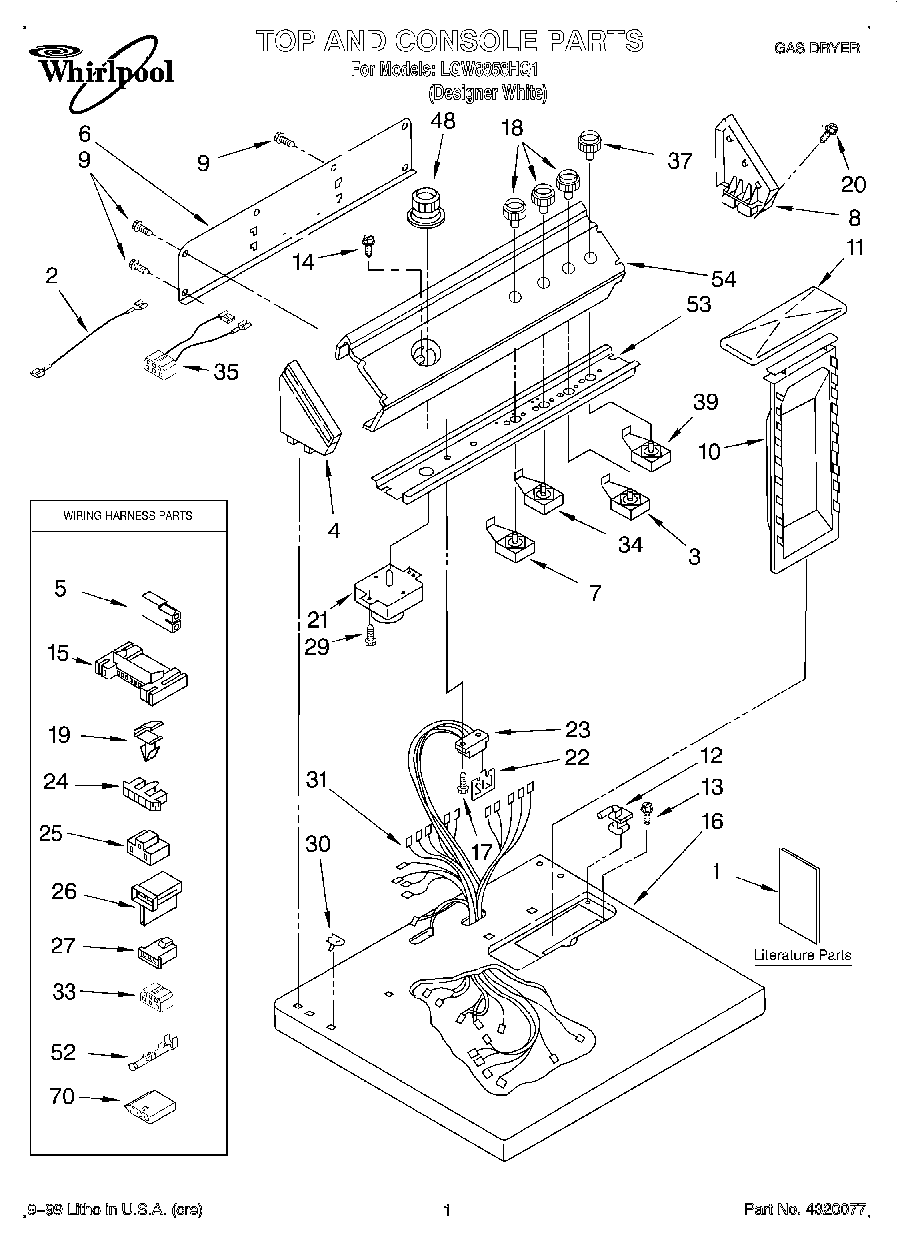

LGW8858HQ1 01 – SECTION

Products

PositionProduct
Dryer
1Literature Parts (Use & Care Guide)
1Instructions, Installation
1Literature Parts (Label, Wiring Diagram)
2Wire, Jumper (Tan)
3WP3398093 Whirlpool Buzzer Adjuster
4Cap, End (L.H.)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6Panel, Rear Console
7WP3399640 Whirlpool Switch
8Cap, End (R.H.)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (White)
17SCREW
18WP3957796 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3976570 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Block, Disconnect
34WP3405156 Whirlpool Switch
35Wire, Jumper
37WP3957800 Whirlpool Knob
39WP3398094 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
70350930 Whirlpool White Spray Paint
7072017 Whirlpool Appliance Touch-Up Paint White
70Almond (Uncut)
70WP72107 Whirlpool Touchup
70799344 Whirlpool Refrigerator Paint
70350956 Whirlpool Spray Assembly
70350938 Whirlpool Spray Gun
703936144 Whirlpool Connector
