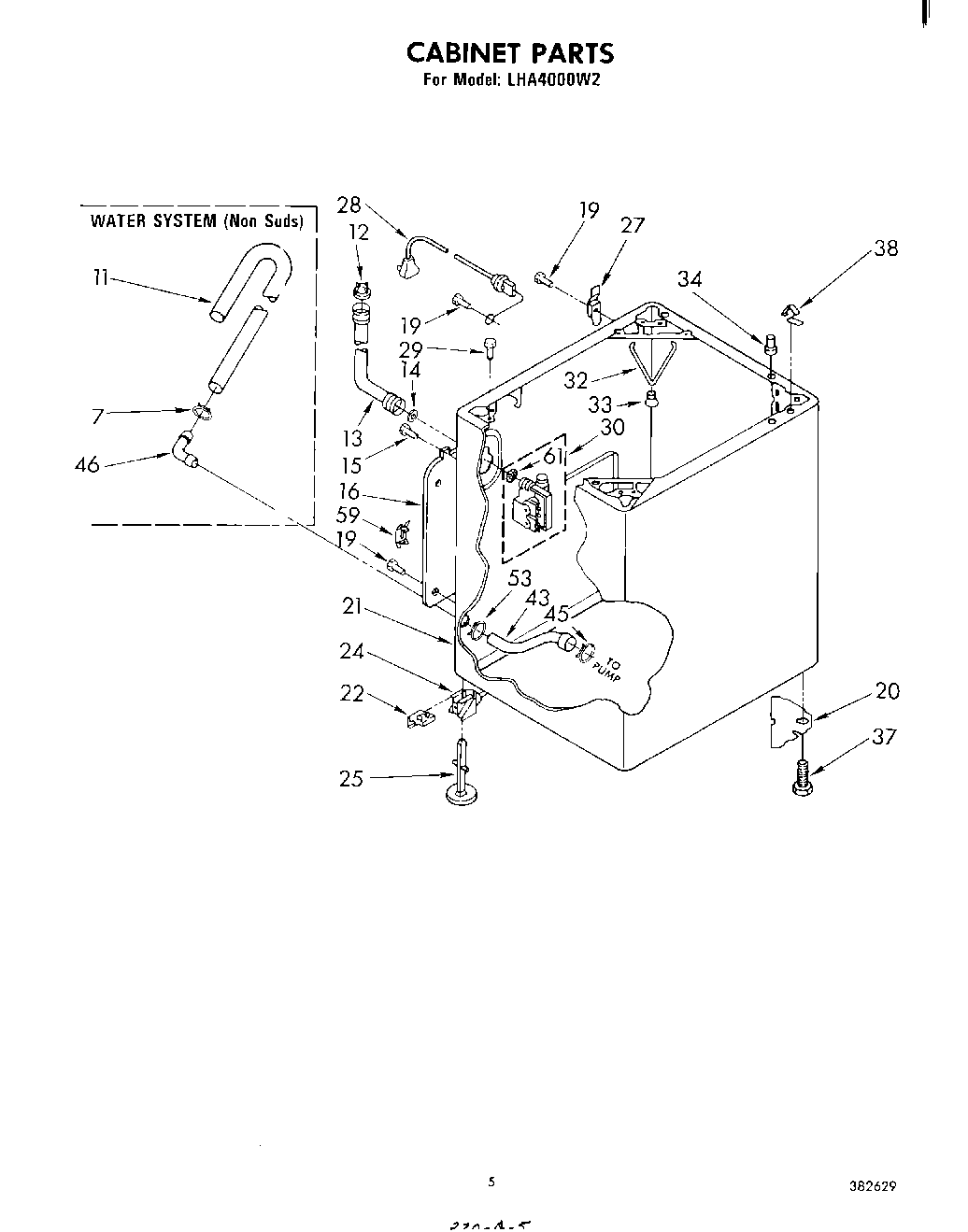

LHA4000W2 05 – CABINET

Products

Position	Product
7	WP356138 Whirlpool Hose Clamp
11	WP96743 Whirlpool Hose
12	285452A Whirlpool Hose Seal and Screen
13	WP89503 Whirlpool Washer Fill Hose
14	WP16123 Whirlpool Washer
15	WP3351614 Whirlpool Screw
16	Panel, Rear
20	Plate, Gusset
21	Cabinet (White)
22	WP359364 Whirlpool Clip
24	Link, Leveling
25	WP358594 Whirlpool Leveling Feet
27	Hinge, R.H.
27	Hinge, L.H.
28	Cord, Power (60 Hz.)
29	SCREW
30	Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
30	Valve, Mixing (Alt.)
32	Spring, Snubber
33	Pad, Snubber
34	Locator, Top
37	WP367594 Whirlpool Leveling Feet
38	WP18776 Whirlpool Lock
43	Hose, Pump Discharge
45	WP285655 Whirlpool Hose Clamp
46	Connector, Hose
59	Plug, Cabinet
61	WP96160 Whirlpool Washer Inlet Valve Screen
