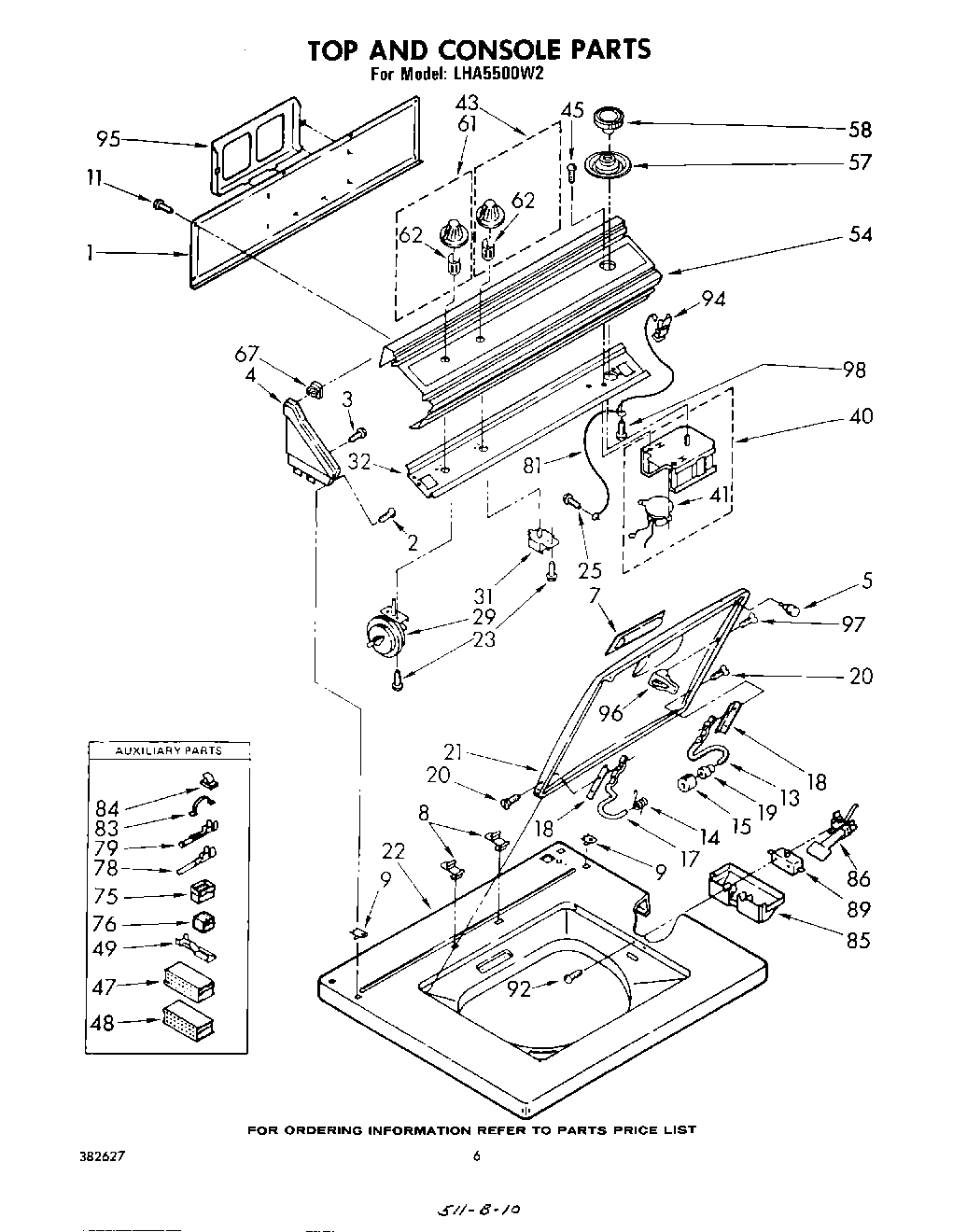

LHA5500W2 06 – TOP AND CONSOLE

Products

Position	Product
1	Panel, Rear Console
2	Screw, 8-18 x 1 (2)
3	WPL 355326
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (Coffee)
4	End Cap Assembly, L.H. (Coffee)
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (White)
4	End Cap Assembly, L.H. (New Avocado)
5	WP9724509 Whirlpool Bumper
7	Handle, Lid (Almond)
7	Handle, Lid (White)
7	Handle, Lid (Coffee)
7	Handle, Lid (Golden Harvest)
7	Handle, Lid (New Avocado)
8	Stop, Push-In Top
9	Nut, Push-In (2)
11	W11693756 Whirlpool Screw Assembly
13	WP91770 Whirlpool Hinge
14	Spring, Hinge
15	Bumper, Lid Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (Almond)
21	Lid (Golden Harvest)
21	Lid (New Avocado)
21	Lid (White)
21	Lid (Coffee)
22	Top (Almond)
22	Top (Coffee)
22	Top (New Avocado)
22	Top (White)
22	Top (Golden Harvest)
23	WP90767 Whirlpool Screw
25	WP3351614 Whirlpool Screw
29	Switch, Water Level (Alternate)
29	Switch, Water Level (Alternate)
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature (Alt.)
32	Bracket, Control
40	Timer, 60 Hz. (Mallory (Alternate))
40	Timer, 60 Hz. (C.C.A. (Alternate))
41	Motor, Timer 60 Hz.
41	Use W/C.C.A. Timer
43	Knob, Water Temperature
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
48	Timer, Block Disconnect (White)
49	Terminal, Female
54	WPL 380110
57	Dial, Timer
58	Knob, Timer
61	Knob Assembly, Water Level
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
81	Wire, Ground
83	8528351 Whirlpool Clip
84	WP90016 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
92	Screw & Washer, Lid Switch (2)
94	W10113937 Whirlpool Clamp
95	Rack, Literature
96	Strike, Lid Switch
97	Screw & Washer
98	SCREW
