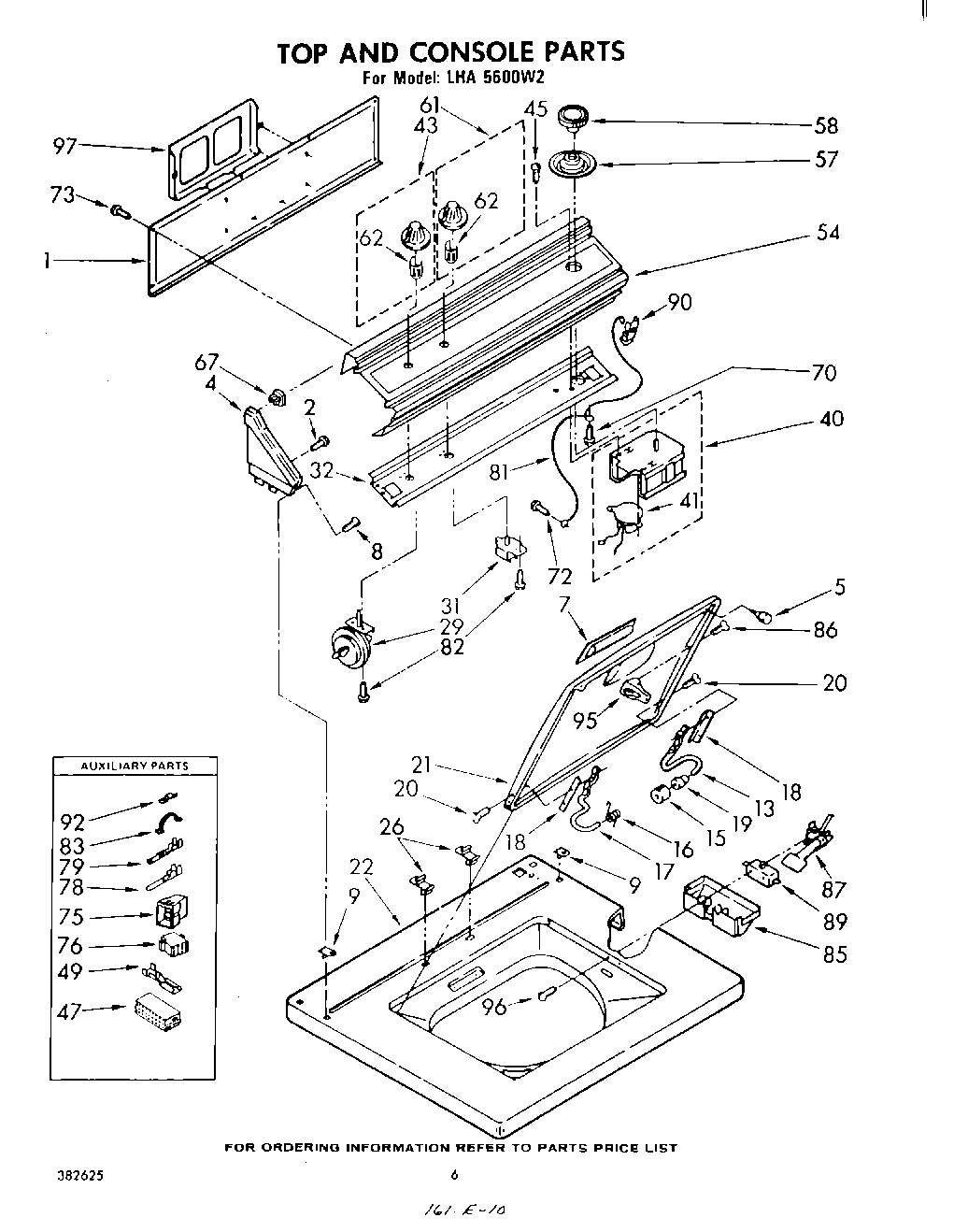

LHA5600W2 06 – TOP AND CONSOLE

Products

Position	Product
1	Panel, Rear Console
2	WPL 355326
4	End Cap Assembly, L.H. (Coffee)
4	End Cap Assembly, L.H. (Coffee)
4	End Cap Assembly, L.H. (New Avocado)
4	Cap, End L.H. (White)
4	End Cap Assembly, L.H. (New Avocado)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
5	WP9724509 Whirlpool Bumper
7	Handle, Lid (White)
7	Handle, Lid (Almond)
7	Handle, Lid (Coffee)
7	Handle, Lid (Golden Harvest)
7	Handle, Lid (New Avocado)
8	Screw, 8-18 x 1 (2)
9	Nut, Push-In (2)
13	WP91770 Whirlpool Hinge
15	Bumper, Lid Hinge
16	Spring, Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (Golden Harvest)
21	Lid (Coffee)
21	Lid (Almond)
21	Lid (White)
21	Lid (New Avocado)
22	Top (White)
22	Top (Almond)
22	Top (Golden Harvest)
22	Top (Coffee)
22	Top (New Avocado)
26	Stop, Push-In Top
29	Switch, Water Level (Alternate)
29	Switch, Water Level (Alternate)
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature (Alt.)
32	Bracket, Control
40	Timer, 60 Hz. (C.C.A. (Alternate))
40	Timer, 60 Hz. (Mallory (Alternate))
41	Use W/C.C.A. Timer
41	Motor, Timer 60 Hz.
43	Knob Assembly, Water Level
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
47	Timer, Block Disconnect (White)
49	Terminal, Female
54	WPL 380119
57	Dial, Timer
58	Knob, Timer
61	Knob, Water Temperature
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
70	WP3351614 Whirlpool Screw
72	SCREW
73	W11693756 Whirlpool Screw Assembly
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
81	Wire, Ground
82	WP90767 Whirlpool Screw
83	8528351 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Screw & Washer
87	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
90	W10113937 Whirlpool Clamp
92	WP90016 Whirlpool Clip
95	Strike, Lid Switch
96	Screw & Washer, Lid Switch (2)
97	Rack, Literature
