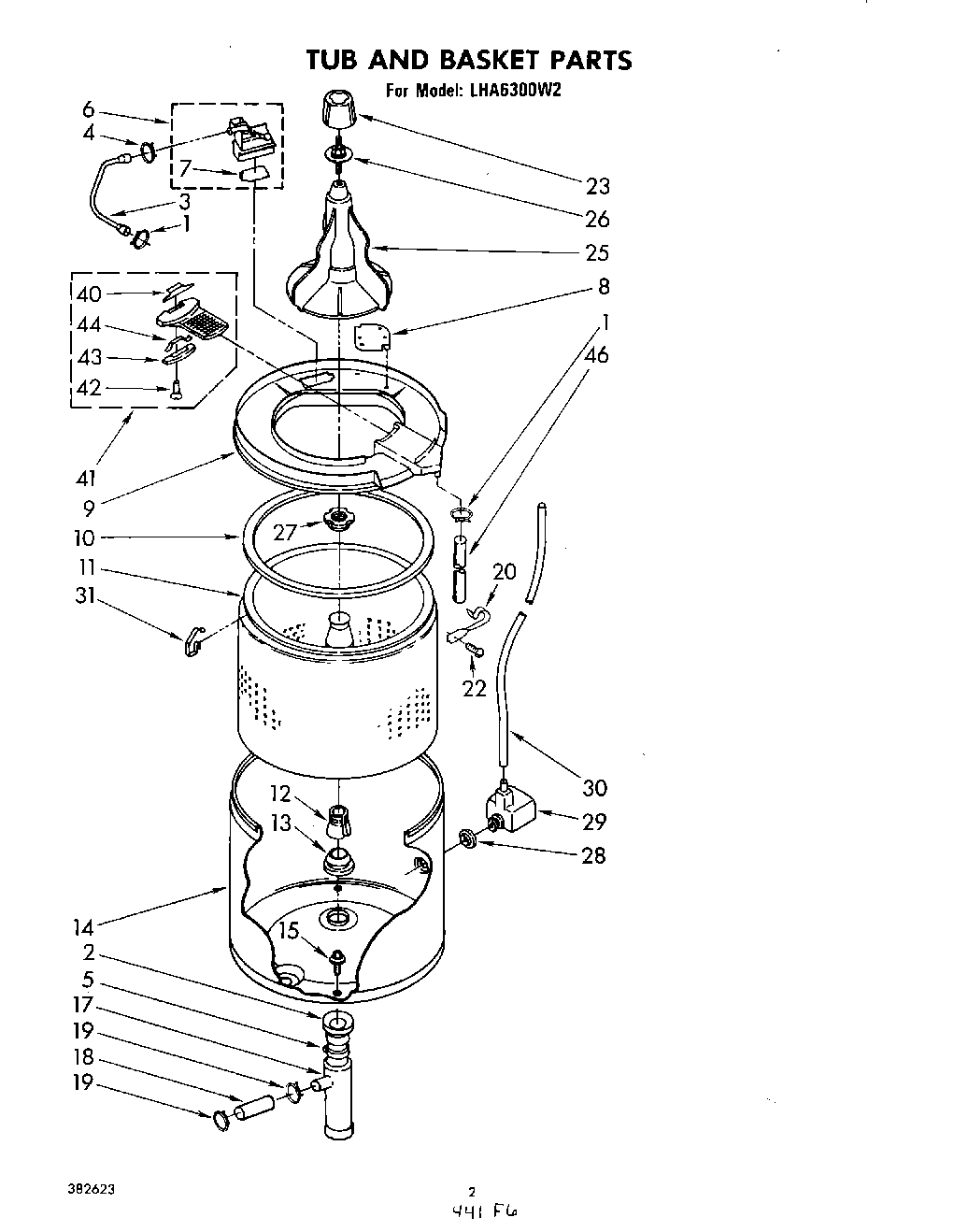

LHA6300W2 02 – TUB AND BASKET

Products

PositionProduct
1WP596669 Whirlpool Hose Clamp
2Hose, Tub Outlet
3Hose, Water Inlet
5Clip, Hose
6Inlet, Water
7Flapper
8Plate, Snubber
9Ring & Filter, Tub (Includes Illus. 8 & 41)
10Seal, Tub Ring
11Basket
12Block, Drive
13W10814296 Whirlpool Washer Center Post Seal Gasket
14Tub
15Screw & Washer, Tub (4)
17Manifold
18Hose
19WP285655 Whirlpool Hose Clamp
20Bracket, Hose
22W11573574 Whirlpool Screw
23Cap, Agitator
25Agitator
26Stud, Agitator Shaft
27WP21366 Whirlpool Spanner Nut
28Seal
29Air Dome Assembly
30WP353244 Whirlpool Hose
31Clip, Tub Ring (4)
40Latch
41Filter
42Screw (2)
43Retainer
44Spring
46Hose, Pump To Filter
46Harness, Cabinet
46Harness, Console
