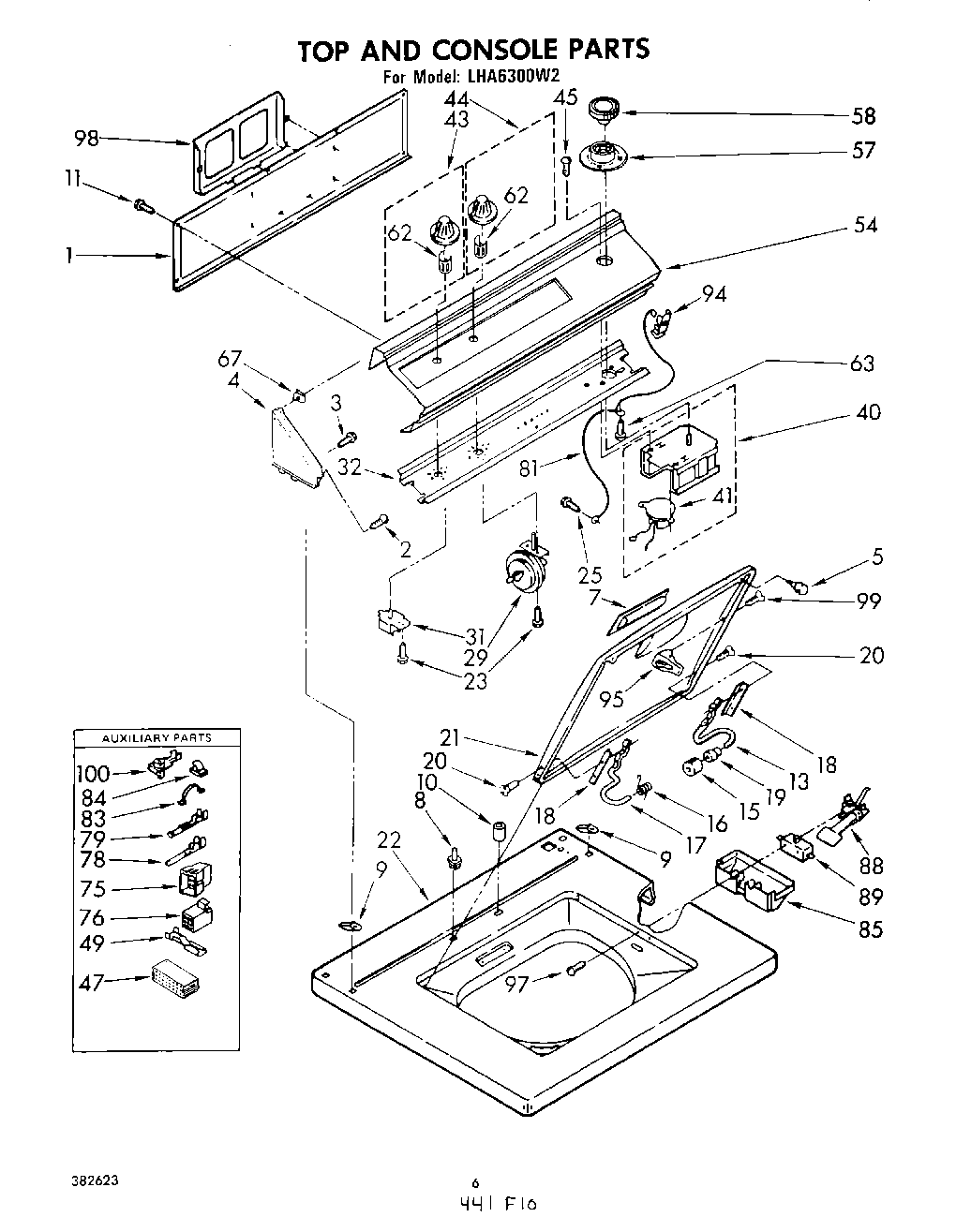

LHA6300W2 06 – TOP AND CONSOLE

LHA6300W2 06 – TOP AND CONSOLE

Written by

in

LHA6300W2 06 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear Console
2Screw, 8-18 x 1 (2)
3WPL 355326
4White
4Golden Harvest
4Coffee
4Almond
4New Avocado
4Coffee
4Golden Harvest Cap, End. (R.H.)
4Almond
4White
4New Avocado
5WP9724509 Whirlpool Bumper
7Handle, Lid (Coffee)
7Handle, Lid (Golden Harvest)
7Handle, Lid (New Avocado)
7Handle, Lid (White)
7Handle, Lid (Almond)
8Nut, Push-In (2)
9WP357213 Whirlpool Hinge Stopper
10Sleeve, Anchor (2)
11W11693756 Whirlpool Screw Assembly
13WP91770 Whirlpool Hinge
15Bumper, Lid Hinge
16Spring, Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (Almond)
21Lid (Golden Harvest)
21Lid (Coffee)
21Lid (New Avocado)
21Lid (White)
22Top (White)
22Top (Almond)
22Top (Golden Harvest)
22Top (Coffee)
22Top (New Avocado)
23WP90767 Whirlpool Screw
25WP3351614 Whirlpool Screw
29Switch, Water Level (Alternate)
29Switch, Water Level (Alternate)
31Switch, Water Temperature (Alt.)
31Switch, Water Temperature (Alt.)
32Bracket, Control
40Timer, 60 Hz. (C.C.A. (Alternate))
40Timer, 60 Hz. (Mallory (Alternate))
41Use W/C.C.A. Timer
41Motor, Timer 60 Hz.
43WPL 368769
44Knob Assembly, Water Level
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
49Terminal, Female
54WPL 380537
57WPL 359382
58WPL 356500
62Clip
63SCREW
67Clip (4)
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
81Wire, Ground
838528351 Whirlpool Clip
84WP90016 Whirlpool Clip
85WP359231 Whirlpool Shield
88Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
94W10113937 Whirlpool Clamp
95Strike, Lid Switch
97Screw & Washer, Lid Switch (2)
98Rack, Literature
99Screw & Washer
100WPL 357695
