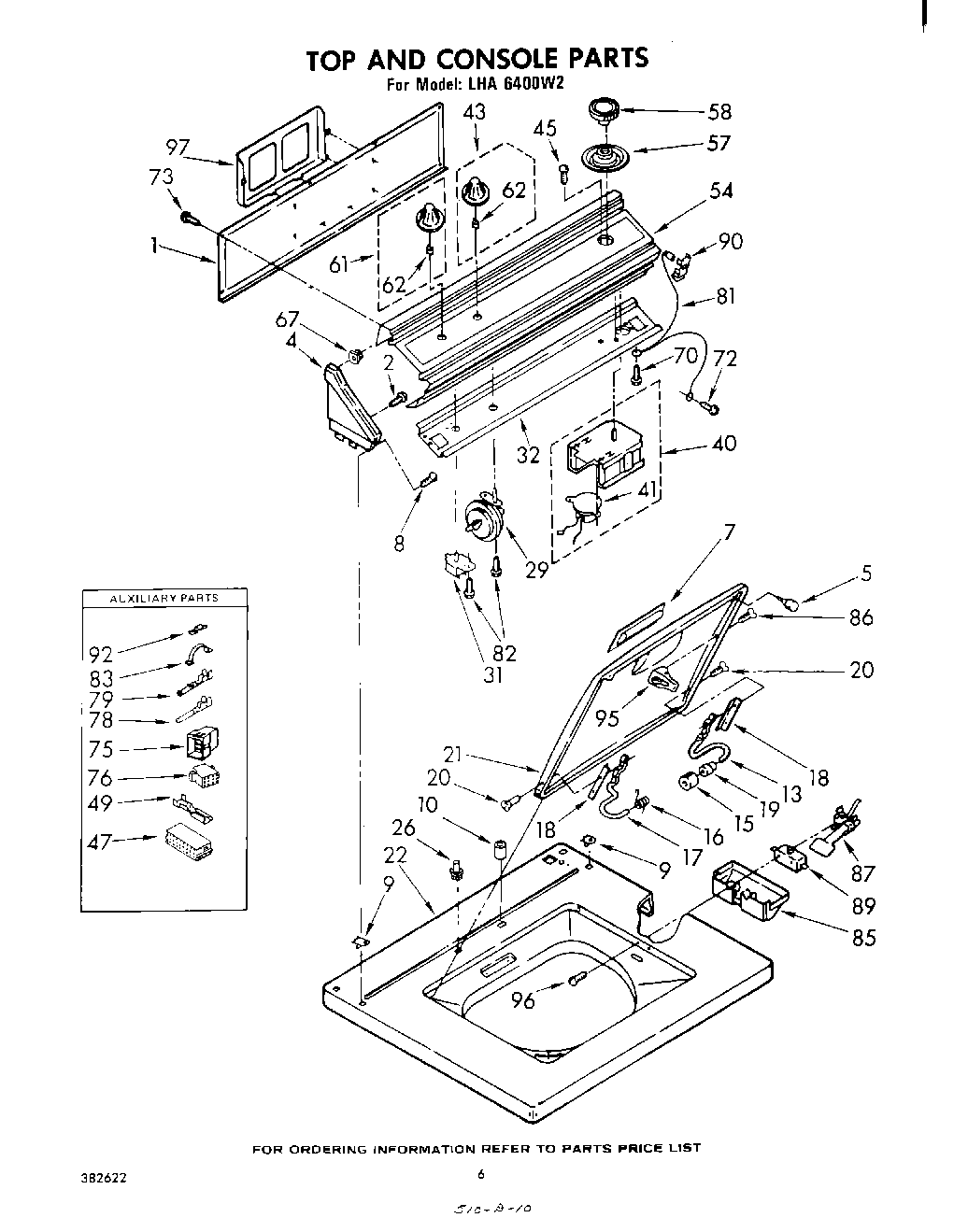

LHA6400W2 06 – TOP AND CONSOLE

LHA6400W2 06 – TOP AND CONSOLE

Written by

in

LHA6400W2 06 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear Console
2WPL 355326
4White
4White
4Almond
4Golden Harvest
4New Avocado
4Coffee
4Almond
4Coffee
4Cap, End (L.H.)
4Golden Harvest Cap, End. (R.H.)
4New Avocado
5WP9724509 Whirlpool Bumper
7Handle, Lid (Coffee)
7Handle, Lid (White)
7Handle, Lid (New Avocado)
7Handle, Lid (Golden Harvest)
7Handle, Lid (Almond)
8Screw, 8-18 x 1 (2)
9WP357213 Whirlpool Hinge Stopper
10Sleeve, Anchor (2)
13WP91770 Whirlpool Hinge
15Bumper, Lid Hinge
16Spring, Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (New Avocado)
21Lid (Golden Harvest)
21Lid (Almond)
21Lid (White)
21Lid (Coffee)
22Top (Almond)
22Top (Golden Harvest)
22Top (New Avocado)
22Top (White)
22Top (Coffee)
26Nut, Push-In (2)
29Switch, Water Level (Alternate)
29Switch, Water Level (Alternate)
31Switch, Water Temperature (Alt.)
31Switch, Water Temperature (Alt.)
32Bracket, Control
40Timer, 60 Hz. (C.C.A. (Alternate))
40Timer, 60 Hz. (Mallory (Alternate))
41Use W/C.C.A. Timer
41Motor, Timer 60 Hz.
43Knob Assembly, Water Level
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
49Terminal, Female
54WPL 380538
57WPL 359381
58WPL 356500
61WPL 368769
62Clip
67Clip (4)
70WP3351614 Whirlpool Screw
72SCREW
73W11693756 Whirlpool Screw Assembly
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
81Wire, Ground
82WP90767 Whirlpool Screw
838528351 Whirlpool Clip
85WP359231 Whirlpool Shield
86Screw & Washer
87Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
90W10113937 Whirlpool Clamp
92WP90016 Whirlpool Clip
95Strike, Lid Switch
96Screw & Washer, Lid Switch (2)
97Rack, Literature
