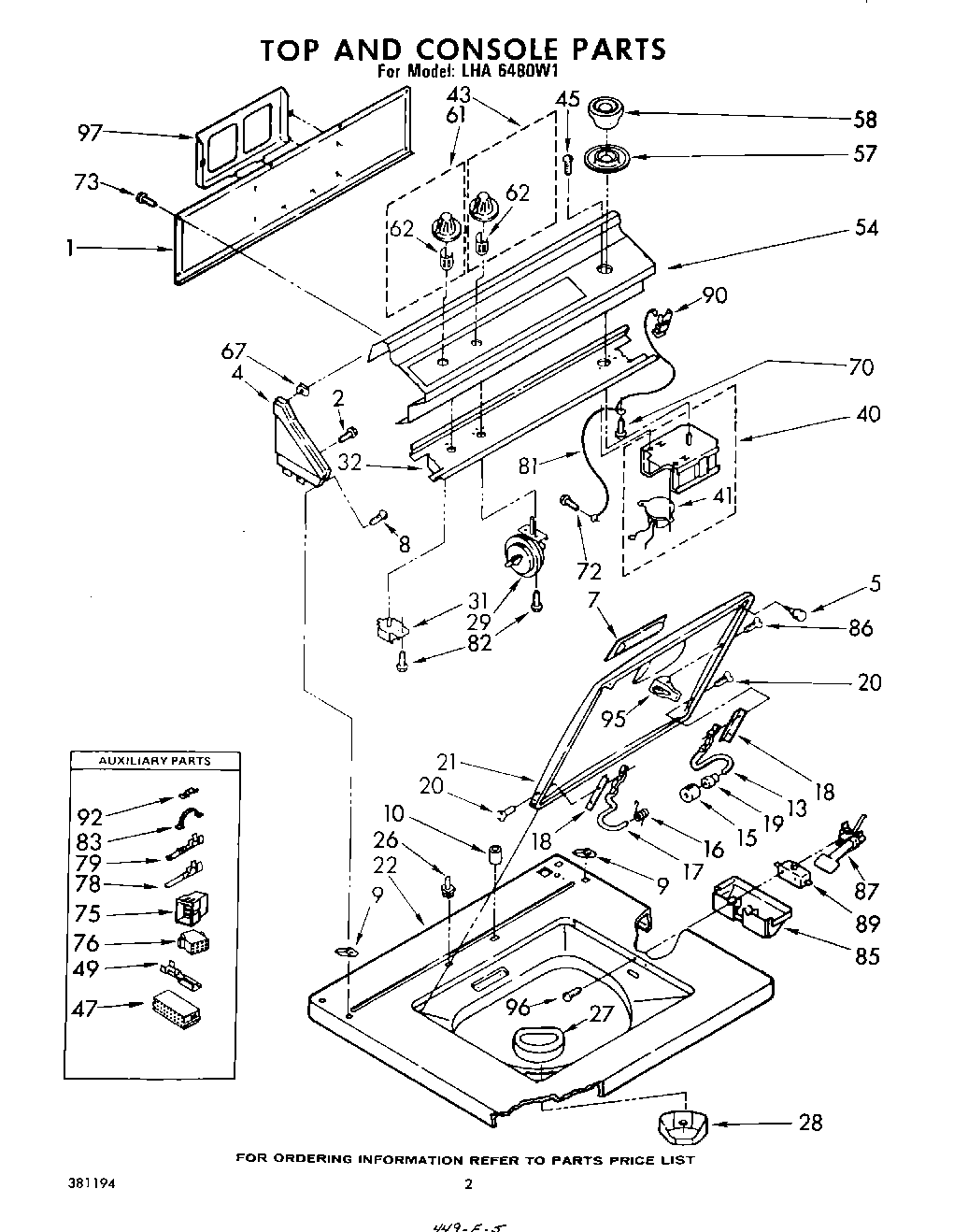

LHA6480W1 02 – TOP AND CONSOLE , LIT/OPTIONAL

LHA6480W1 02 – TOP AND CONSOLE , LIT/OPTIONAL

Written by

in

LHA6480W1 02 – TOP AND CONSOLE , LIT/OPTIONAL

Products

PositionProduct
WPL ARI117831A
Wire, 25` Roll (Red 12 Ga.)
WPL ARI117830A
1Panel, Rear Console
2WPL 355326
4White
4Coffee
4White
4New Avocado
4Almond
4Coffee
4Golden Harvest
4Almond
4New Avocado
4Golden Harvest Cap, End. (R.H.)
5WP9724509 Whirlpool Bumper
7Handle, Lid (Coffee)
7Handle, Lid (White)
7Handle, Lid (Almond)
7Handle, Lid (New Avocado)
7Handle, Lid (Golden Harvest)
8Screw, 8-18 x 1 (2)
9WP357213 Whirlpool Hinge Stopper
10Sleeve, Anchor (2)
13WP91770 Whirlpool Hinge
15Bumper, Lid Hinge
16Spring, Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (White)
21Lid (Almond)
21Lid (Golden Harvest)
21Lid (Coffee)
21Lid (New Avocado)
22Top (New Avocado)
22Top (Coffee)
22Top (Golden Harvest)
22Top (White)
22Top (Almond)
26Nut, Push-In (2)
27WPL 352821
28WPL 352827
29Switch, Water Level
31Switch, Water Temperature (Alt.)
31Switch, Water Temperature (Alt.)
32Bracket, Control
40Timer Assembly (60 Hz.) (Mallory)
40Timer Assembly (60 Hz.) (C.C.A.)
41Motor, Timer 60 Hz.
41Use W/C.C.A. Timer
43WPL 367676
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
49Terminal, Female
54WPL 380540
57WPL 359379
58WPL 356500
61WPL 368769
62Clip
67Clip (4)
70WP3351614 Whirlpool Screw
72SCREW
73W11693756 Whirlpool Screw Assembly
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
81Wire, Ground
82WP90767 Whirlpool Screw
838528351 Whirlpool Clip
85WP359231 Whirlpool Shield
86Screw & Washer
87Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
90W10113937 Whirlpool Clamp
92WP90016 Whirlpool Clip
95Strike, Lid Switch
96Screw & Washer, Lid Switch (2)
97350930 Whirlpool White Spray Paint
97Golden Harvest (Uncut)
9772109 Whirlpool Dacor Avocado Touch-Up Paint
97Golden Harvest
9772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
97Almond (Uncut)
97Leveler (Thinner)
97WP72107 Whirlpool Touchup
97799344 Whirlpool Refrigerator Paint
9772017 Whirlpool Appliance Touch-Up Paint White
97350956 Whirlpool Spray Assembly
97Paint, Touch-Up 1/2 Oz. (Coffee)
97WPL 382240
97Harness, Console
97Guide, Laundry
97Miscellaneous Parts Bag
97Harness, Cabinet
97WPL 372846
97Rack, Literature
97WPL 799351
97WPL 380464
97Enamel, New Avocado (1 Qt. Uncut)
97WPL 381194
97Enamel, Coffee (1 Qt. Uncut)
97Paint, Spray 13 Oz. (Avocado)
97paint, spray 13 oz. (coffee)
97350938 Whirlpool Spray Gun
