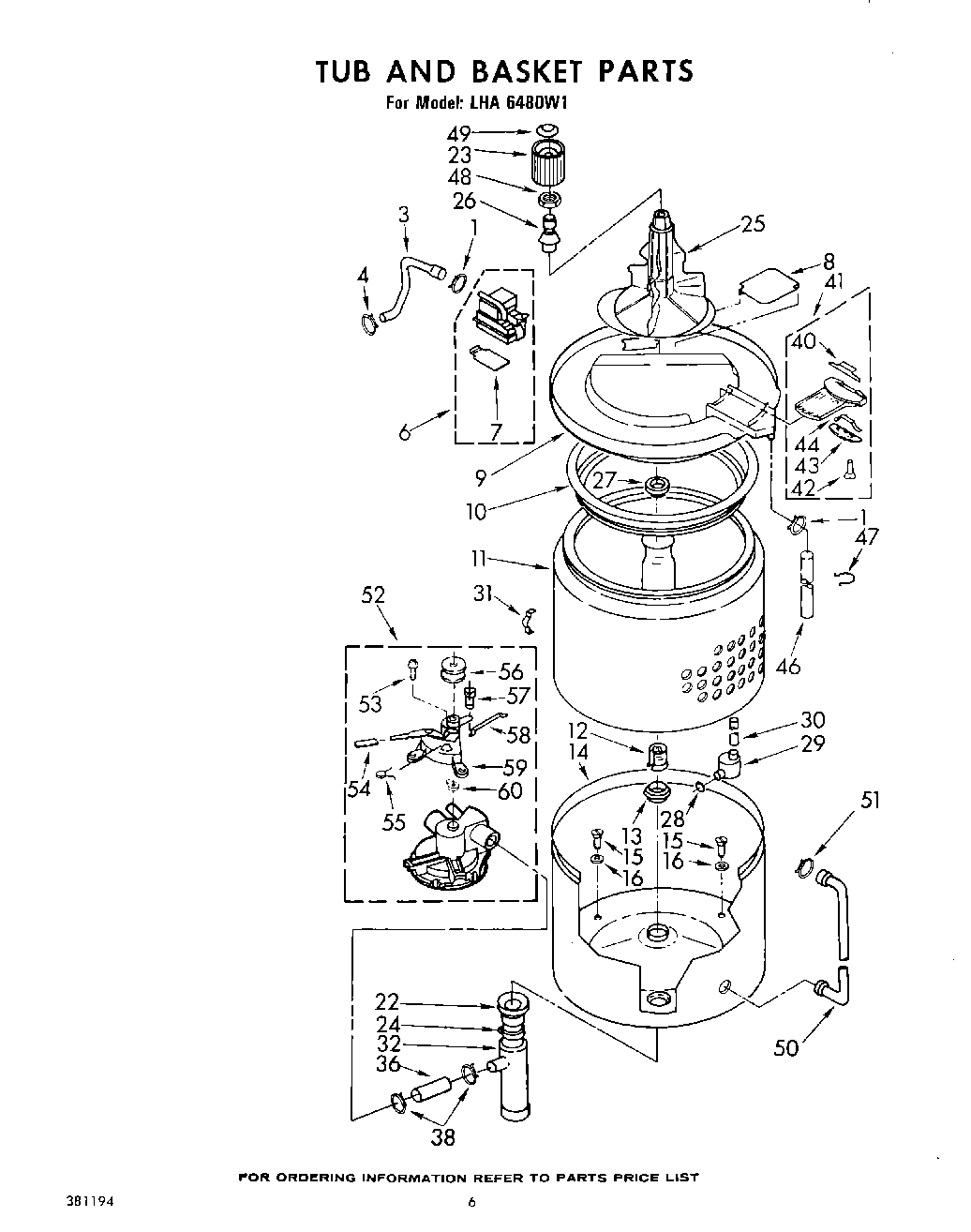

LHA6480W1 04 – TUB AND BASKET

Products

Position	Product
1	WP596669 Whirlpool Hose Clamp
3	Hose, Water Inlet
6	Inlet, Water
7	Flapper
8	Plate, Snubber
9	Ring & Filter, Tub (Includes Illus. 41)
10	Seal, Tub Ring
11	Basket
12	WP389140 Whirlpool Drive Block or Bell
13	W10814296 Whirlpool Washer Center Post Seal Gasket
14	Tub
15	Screw, Tub
16	WASHER
22	Hose, Tub Outlet
23	Cap, Agitator
24	Clip, Hose
25	Agitator & Insert Assembly
26	Stud & Washer
27	WP21366 Whirlpool Spanner Nut
28	Seal
29	Air Dome Assembly
30	WP353244 Whirlpool Hose
31	Clip, Tub Ring (3)
32	Manifold
36	Hose
38	WP285655 Whirlpool Hose Clamp
40	Latch
41	Element, Filter
42	Screw (2)
43	Retainer
44	Spring
46	Hose, Pump To Filter
47	16515 Whirlpool Clip
48	Locknut
49	Insert, Agitator Cap
50	Hose, Bleach Dispenser
52	Pump Assembly
53	WP273556 Whirlpool Screw
54	Sleeve
55	Spring, Toggle
56	Pulley, Pump (Alternate)
57	Lever, Valve
58	Rod, Connecting
59	Bearing Block Assembly
60	Wick, Oil
