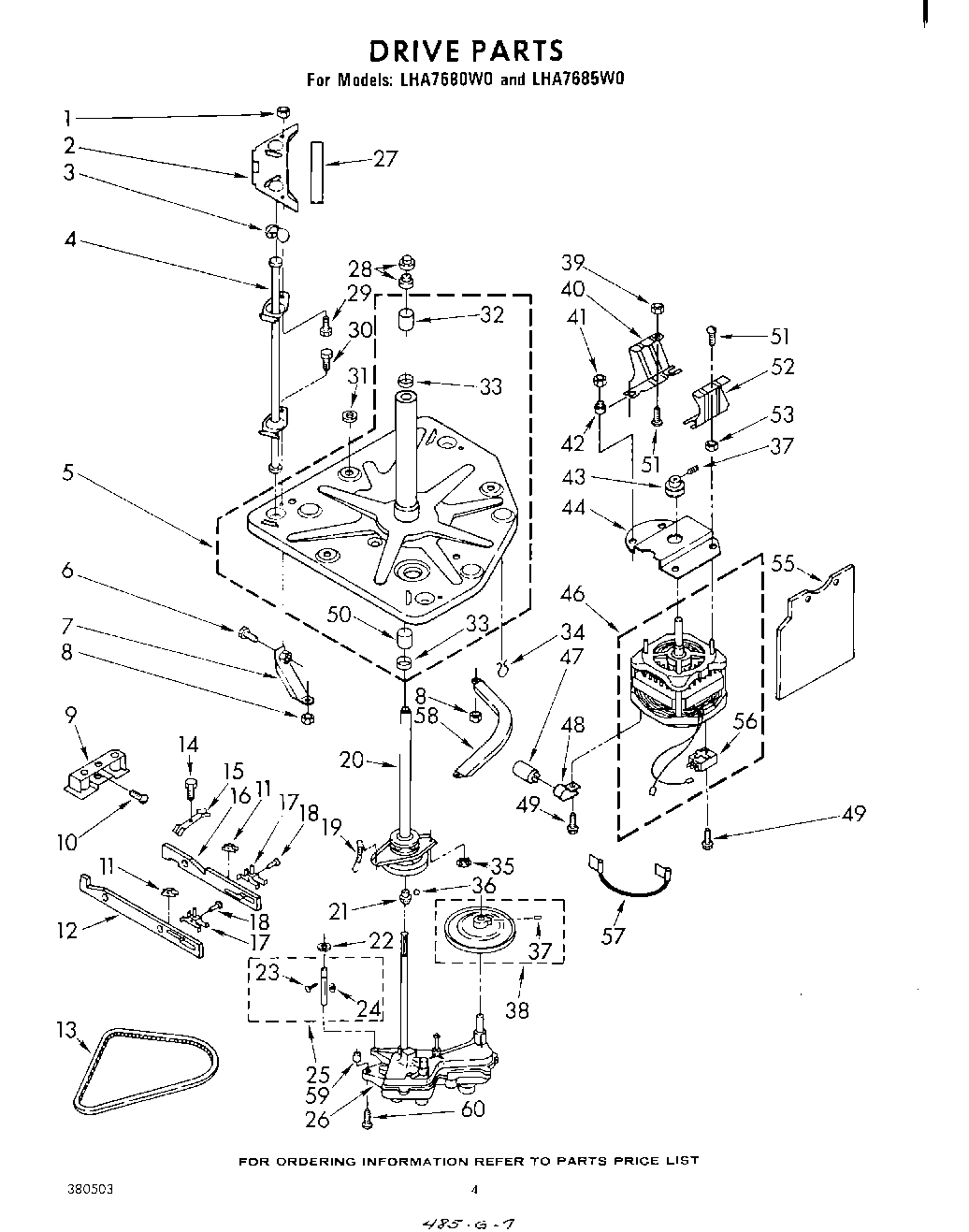

LHA7680W0 03 – DRIVE , LIT/OPTIONALadmin2025-04-26T12:16:00+00:00LHA7680W0 03 – DRIVE , LIT/OPTIONAL
Products
| Position | Product |
|---|
| Wire, 25` Roll (Red 12 Ga.) |
| Almond (Uncut) |
| Enamel, Coffee (1 Qt. Uncut) |
| Enamel, New Avocado (1 Qt. Uncut) |
| 799344 Whirlpool Refrigerator Paint |
| WPL 010875 |
| Golden Harvest (Uncut) |
| 1 | 90984 Whirlpool Nut |
| 2 | Cover, Gusset (L.F.) |
| 2 | Cover, Gusset (L.R.) |
| 3 | Ball, Suspension (6) |
| 4 | Rod, Suspension (3) |
| 5 | Baseplate & Centerpost |
| 6 | WP3400516 Whirlpool Screw |
| 7 | Brace, Baseplate |
| 8 | Nut, 5/16-24 |
| 9 | Magnet |
| 10 | Screw, Taper End |
| 11 | Guide, Cam Bar |
| 12 | Cam, Bar Spin |
| 13 | WP95405 Whirlpool Belt |
| 14 | Screw, 1/4-28 x 1/2 |
| 15 | Spring, Brake |
| 16 | Cam, Agitator & Pump |
| 17 | Plunger |
| 18 | Rivet |
| 19 | Spring, Brake Yoke |
| 20 | Basket Drive & Brake |
| 21 | Support, Spin Tube |
| 22 | WP120393 Whirlpool Washer Assembly |
| 23 | Pin, Gear Fork Shaft |
| 24 | Roller, Gear Fork Shaft |
| 25 | Shaft, Basket Clutch |
| 26 | Gearcase (Complete) |
| 27 | Pad, Gusset Cover (4) |
| 28 | WP8577376 Whirlpool Seal |
| 29 | Bolt, 5/16 x 5/8 (2) |
| 29 | Bolt, Snubber (1) |
| 29 | Bolt, 5/16 x 1 (3) |
| 30 | Bolt, 5/16-24 |
| 31 | Gasket, Tub (7) |
| 32 | WP8546455 Whirlpool Bearing |
| 33 | W11095997 Whirlpool Seal |
| 34 | 16515 Whirlpool Clip |
| 35 | Retainer, Brake Yoke |
| 36 | Ball |
| 37 | Setscrew, 5/16-18 x 1/2 |
| 38 | Pulley, Main Drive |
| 39 | WP358160 Whirlpool Nut |
| 40 | Bracket, Motor Mounting |
| 41 | Nut (4) |
| 42 | Grommet, Motor Bracket (4) |
| 43 | Pulley, Motor (60 Hz.) |
| 44 | Shield, Motor (Upper) |
| 46 | Motor, 60 Hz. (Alt.) (G |
| 46 | Motor (Emerson) 60 Hz. |
| 47 | CAPACITOR |
| 48 | 357030 Whirlpool Clamp |
| 49 | WP3390631 Whirlpool Screw |
| 50 | WPL 354195 |
| 51 | WPL 98537 |
| 52 | WPL 93549 |
| 53 | WPL 95721 |
| 55 | WPL 357395 |
| 56 | WPL 362086 |
| 56 | WPL 362738 |
| 57 | WPL 370950 |
| 58 | WPL 351499 |
| 58 | WPL 351500 |
| 59 | WPL 16062 |
| 60 | WP72107 Whirlpool Touchup |
| 60 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 60 | 350956 Whirlpool Spray Assembly |
| 60 | 350938 Whirlpool Spray Gun |
| 60 | WPL 90877 |
| 60 | WPL 359325 |
| 60 | WPL 359326 |
| 60 | WPL 369743 |
| 60 | WPL 372832 |
| 60 | WPL 380472 |
| 60 | WPL 380503 |
| 60 | 350930 Whirlpool White Spray Paint |
| 60 | Bag, Miscellaneous |
| 60 | WPL 799351 |
| 60 | Paint, Spray 13 Oz. (Avocado) |
| 60 | paint, spray 13 oz. (coffee) |
| 60 | Paint, Touch-Up 1/2 Oz. (Coffee) |
| 60 | Harness, Cabinet |
| 60 | 72109 Whirlpool Dacor Avocado Touch-Up Paint |
| 60 | Guide, Laundry |
| 60 | Golden Harvest |
| 60 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 60 | Leveler (Thinner) |
| 60 | WPL 88916 |
