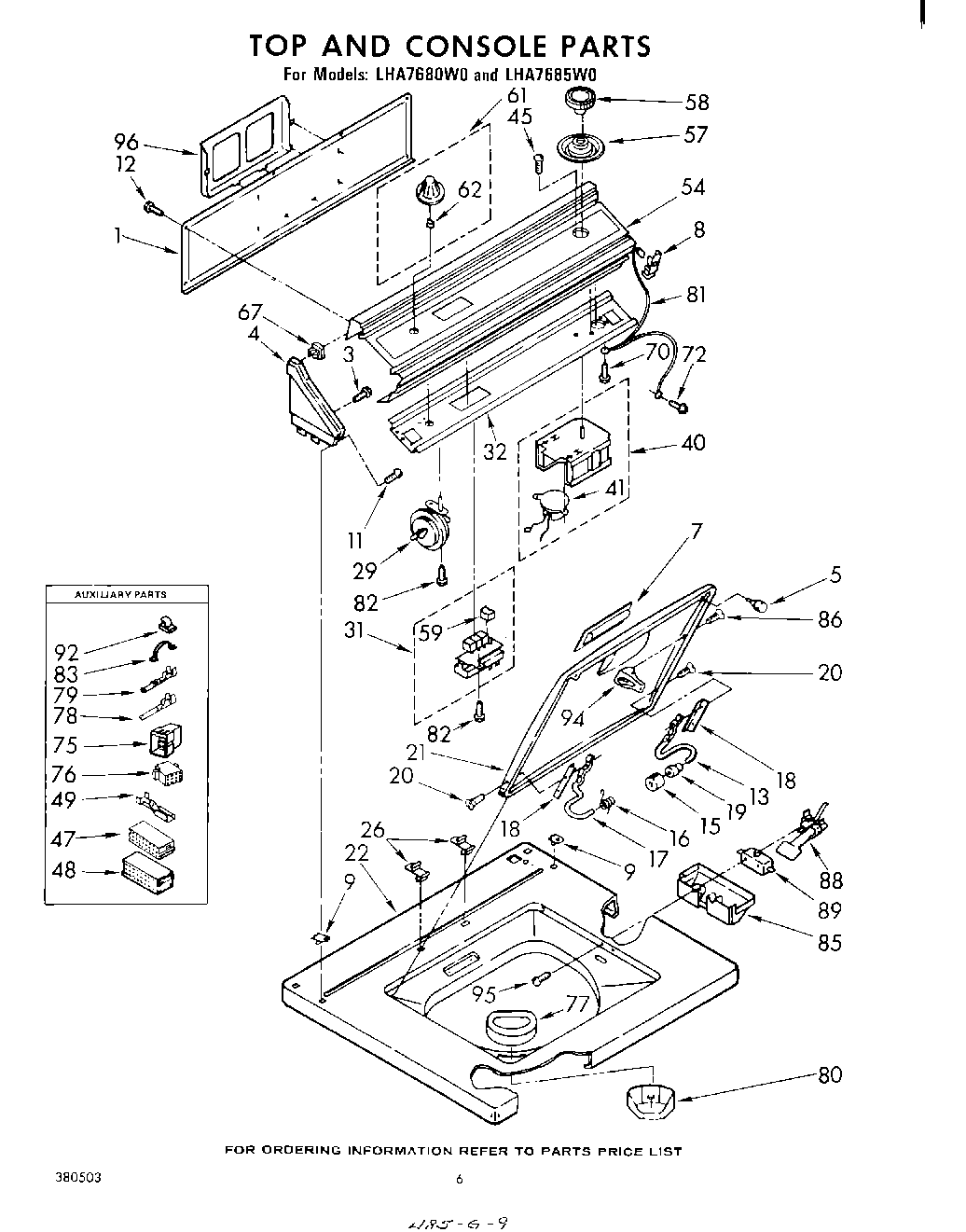

LHA7680W0 04 – TOP AND CONSOLE

Products

Position	Product
1	Panel, Rear Console
3	WPL 355326
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (Coffee)
4	End Cap Assembly, L.H. (Coffee)
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (White)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Almond)
5	WP9724509 Whirlpool Bumper
7	Handle, Lid (Golden Harvest)
7	Handle, Lid (Coffee)
7	Handle, Lid (White)
7	Handle, Lid (Almond)
7	Handle, Lid (New Avocado)
8	W10113937 Whirlpool Clamp
9	Nut, Push-In (2)
11	Screw, 8-18 x 1 (2)
12	W11693756 Whirlpool Screw Assembly
13	WP91770 Whirlpool Hinge
15	Bumper, Lid Hinge
16	Spring, Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (White)
21	Lid (Almond)
21	Lid (Coffee)
21	Lid (Golden Harvest)
21	Lid (New Avocado)
22	Top (Coffee)
22	Top (New Avocado)
22	Top (Golden Harvest)
22	Top (Almond)
22	Top (White)
26	Stop, Push-In Top
29	Switch, Water Level
31	Switch, Water Temperature
32	Bracket, Control
40	Timer Assembly (60 Hz.) (Mallory)
40	Timer Assembly (60 Hz.) (C.C.A.)
40	Timer Assembly, 60 Hz. (Mallory (Suds))
41	Motor, Timer 60 Hz.
41	Use W/C.C.A. Timer
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
48	Timer, Block Disconnect (White)
49	Terminal, Female
54	WPL 380123
54	WPL 380124
57	Dial, Timer
58	Knob, Timer
59	WPL 301008
61	WPL 690301
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
70	WP3351614 Whirlpool Screw
72	SCREW
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
77	WPL 352821
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
80	WPL 352827
81	Wire, Ground
82	WP90767 Whirlpool Screw
83	8528351 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Screw & Washer
88	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
92	WP90016 Whirlpool Clip
94	Strike, Lid Switch
95	Screw & Washer, Lid Switch (2)
96	Rack, Literature
