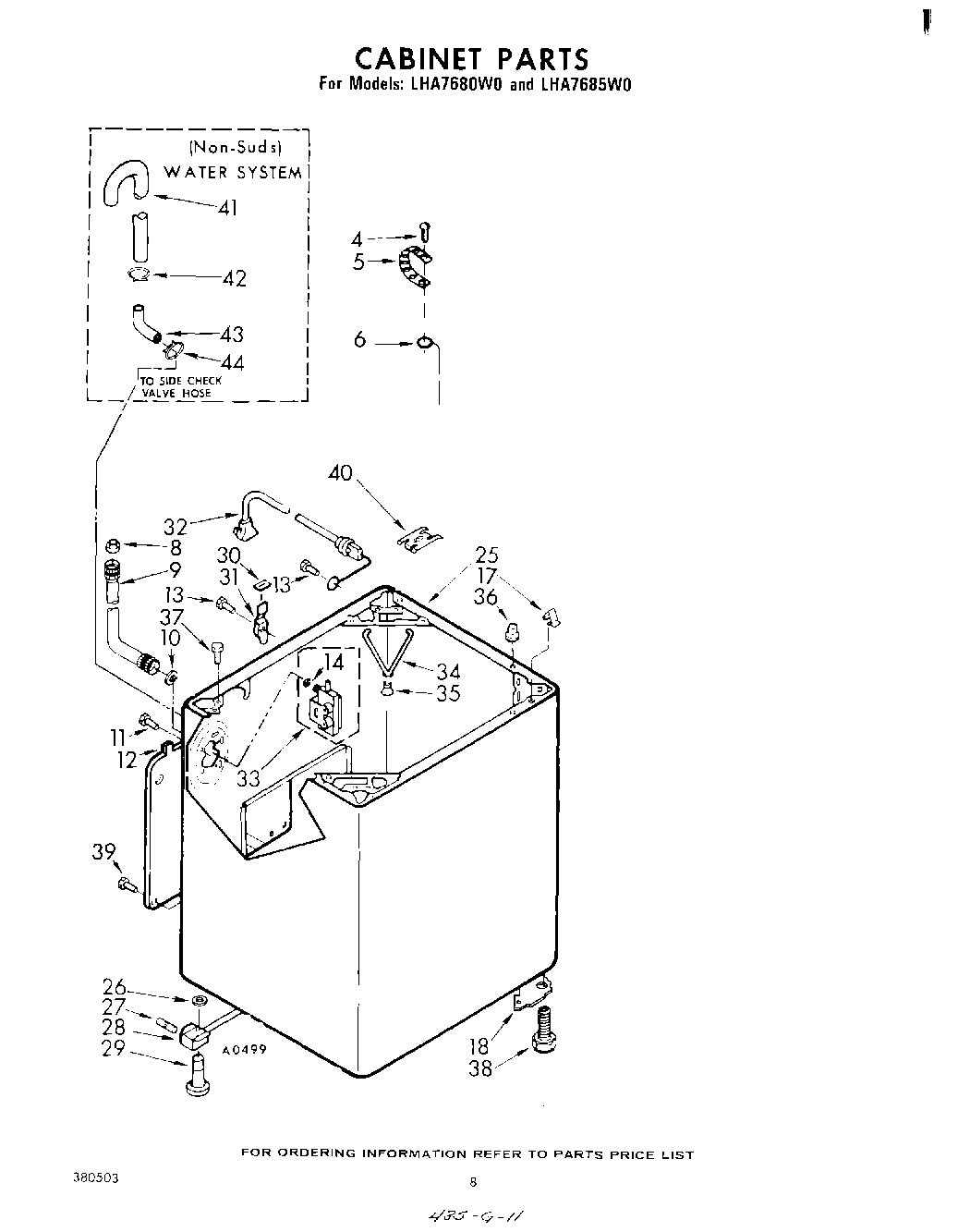

LHA7680W0 05 – CABINET

LHA7680W0 05 – CABINET

Written by

in

LHA7680W0 05 – CABINET

Products

PositionProduct
4Screw, Ground (10-24 x 1)
5Strap, Ground
6WPL 364089
8285452A Whirlpool Hose Seal and Screen
9WP89503 Whirlpool Washer Fill Hose
10WP16123 Whirlpool Washer
11WP3351614 Whirlpool Screw
12Panel, Rear (Suds)
12Panel, Rear
13SCREW
14WP96160 Whirlpool Washer Inlet Valve Screen
17WP18776 Whirlpool Lock
18Plate, Gusset
25Cabinet (Golden Harvest)
25Cabinet (New Avocado)
25Cabinet (Coffee)
25Cabinet (Almond)
25Cabinet (White)
26Washer, Friction
27WP62837 Whirlpool Dowel Pin
28Link, Leveling
29Foot, Rear (2)
3018849 Whirlpool Pad
31Hinge, L.H.
31Hinge, R.H.
32Cord, Power (60 Hz.)
33Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
33Valve, Mixing (Alt.)
34Spring, Snubber
35Pad, Snubber
36Locator, Top
38WP367594 Whirlpool Leveling Feet
40Plug, Cabinet
41Hose, Gooseneck
42WP356138 Whirlpool Hose Clamp
43Connector, Hose
44WP285655 Whirlpool Hose Clamp
