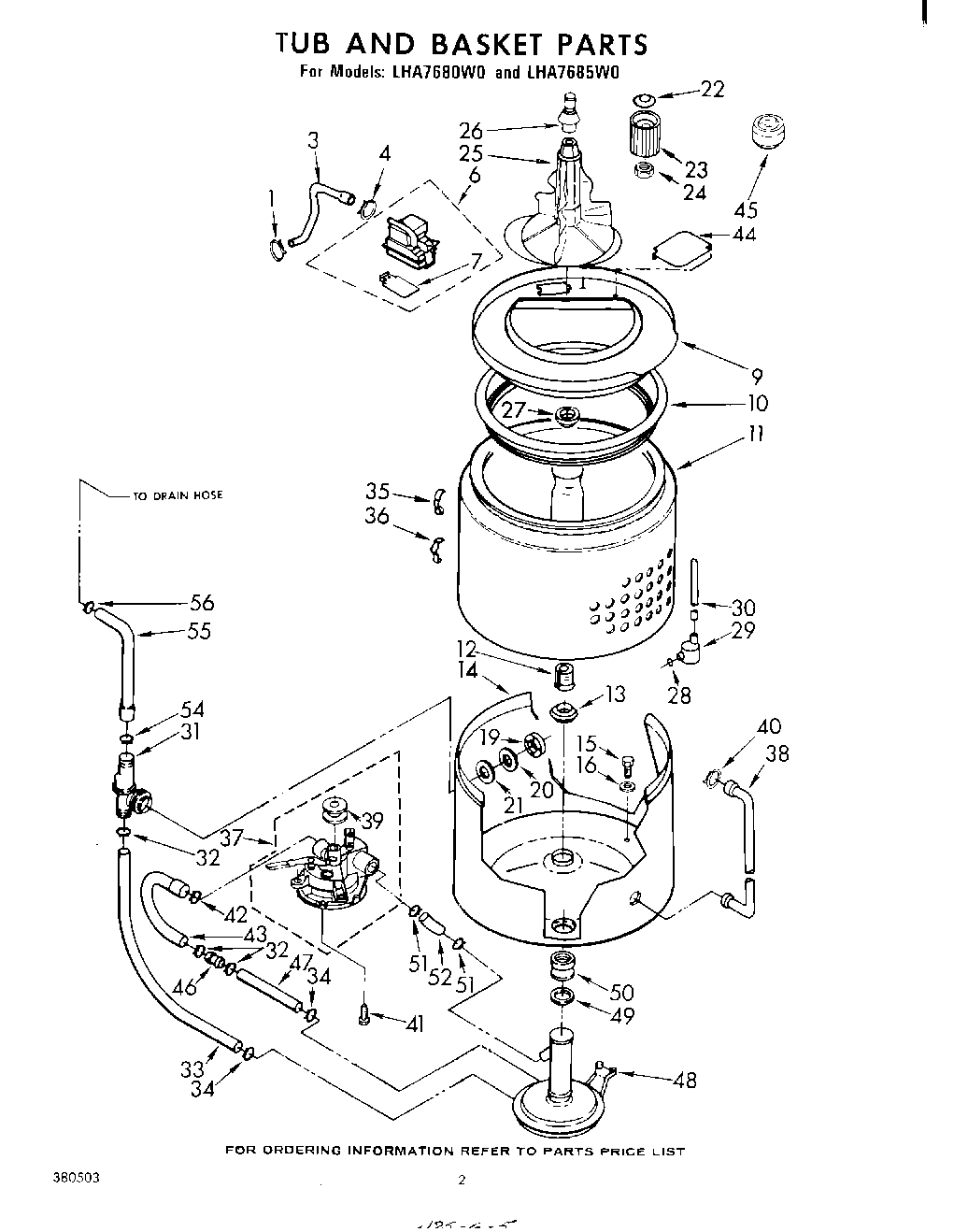

LHA7685W0 02 – TUB AND BASKET

Products

Position	Product
1	WP596669 Whirlpool Hose Clamp
3	Hose, Water Inlet
6	Inlet, Water
7	Flapper
9	Ring, Tub
10	Seal, Tub Ring
11	Basket
12	WP389140 Whirlpool Drive Block or Bell
13	W10814296 Whirlpool Washer Center Post Seal Gasket
14	Tub
15	Screw, Tub
16	WASHER
19	Nut, Spanner
20	Washer, Fiber
21	Washer, Rubber
22	Insert, Agitator Cap
23	Cap, Agitator
24	Locknut
25	Agitator & Insert Assembly
26	Stud & Washer
27	WP21366 Whirlpool Spanner Nut
28	Seal
29	Air Dome Assembly
30	WP353244 Whirlpool Hose
31	Valve, Side Check
32	Clamp, Hose (Alternate)
33	Hose, Side Check To Filter
35	Clip, Tub Ring (3)
36	Clip, Tub Ring (1)
37	350365 Whirlpool Dryer Washer Water Pump, 2-Port
38	Hose, Bleach Dispenser
39	Pulley, Pump (Alternate)
41	386011 Whirlpool Screw
42	WP616099 Whirlpool Clamp
43	Hose
44	Plate, Snubber
45	Dispenser, Rinse
46	WP16272 Whirlpool Hose Coupling
47	Hose, Pump To Filter
48	Manifold & Filter
49	Clip, Hose
50	Hose, Tub Outlet
51	WP285655 Whirlpool Hose Clamp
52	Hose, Pump To Manifold
54	WP356138 Whirlpool Hose Clamp
55	Hose, Side Check To Drain (Non-Suds & Suds)
