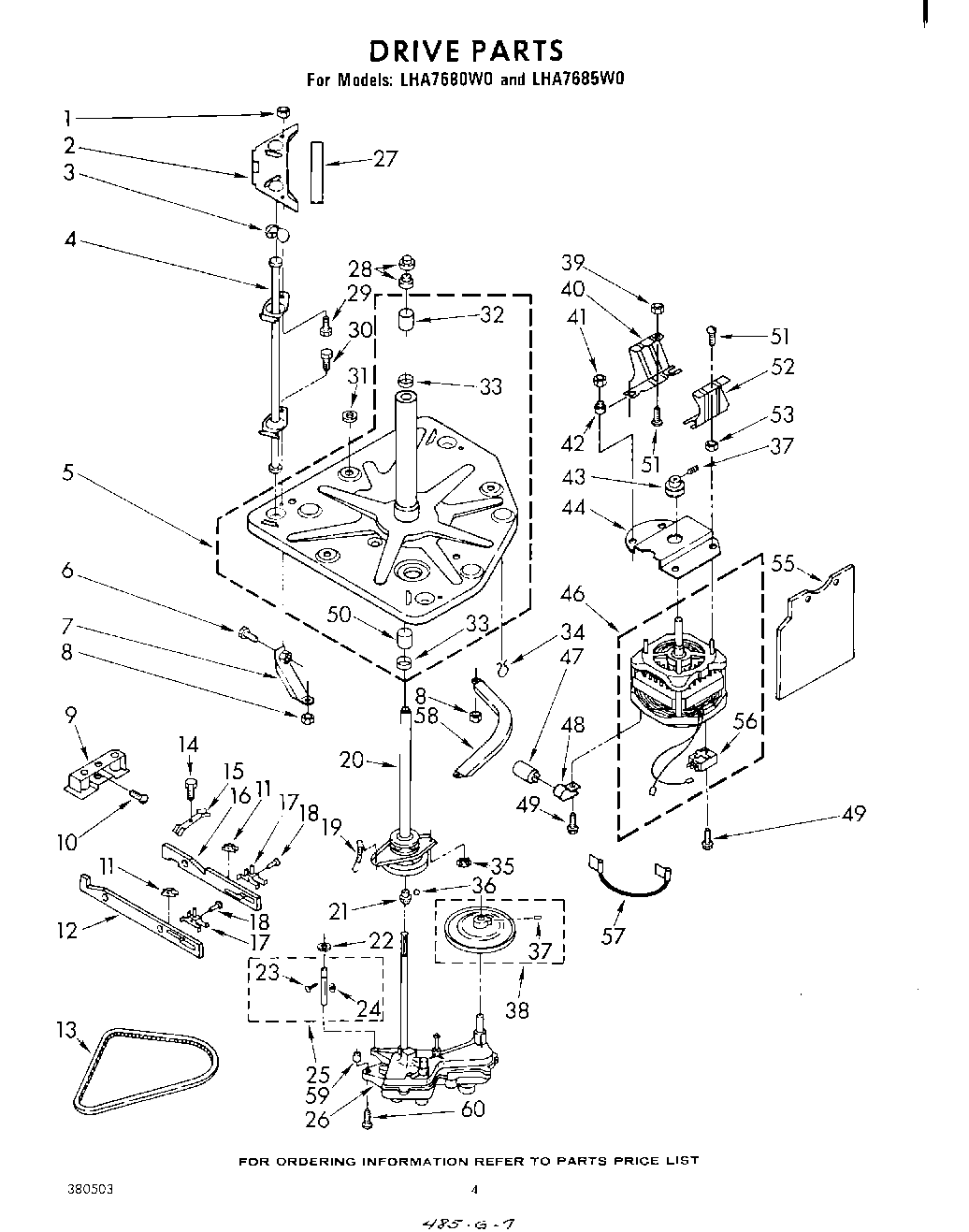

LHA7685W0 03 – DRIVE , LIT/OPTIONAL

LHA7685W0 03 – DRIVE , LIT/OPTIONAL

Written by

in

LHA7685W0 03 – DRIVE , LIT/OPTIONAL

Products

Position	Product
	Wire, 25` Roll (Red 12 Ga.)
	Almond (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	WPL 010875
	Golden Harvest (Uncut)
1	90984 Whirlpool Nut
2	Cover, Gusset (L.F.)
2	Cover, Gusset (L.R.)
3	Ball, Suspension (6)
4	Rod, Suspension (3)
5	Baseplate & Centerpost
6	WP3400516 Whirlpool Screw
7	Brace, Baseplate
8	Nut, 5/16-24
9	Magnet
10	Screw, Taper End
11	Guide, Cam Bar
12	Cam, Bar Spin
13	WP95405 Whirlpool Belt
14	Screw, 1/4-28 x 1/2
15	Spring, Brake
16	Cam, Agitator & Pump
17	Plunger
18	Rivet
19	Spring, Brake Yoke
20	Basket Drive & Brake
21	Support, Spin Tube
22	WP120393 Whirlpool Washer Assembly
23	Pin, Gear Fork Shaft
24	Roller, Gear Fork Shaft
25	Shaft, Basket Clutch
26	Gearcase (Complete)
27	Pad, Gusset Cover (4)
28	WP8577376 Whirlpool Seal
29	Bolt, 5/16 x 5/8 (2)
29	Bolt, Snubber (1)
29	Bolt, 5/16 x 1 (3)
30	Bolt, 5/16-24
31	Gasket, Tub (7)
32	WP8546455 Whirlpool Bearing
33	W11095997 Whirlpool Seal
34	16515 Whirlpool Clip
35	Retainer, Brake Yoke
36	Ball
37	Setscrew, 5/16-18 x 1/2
38	Pulley, Main Drive
39	WP358160 Whirlpool Nut
40	Bracket, Motor Mounting
41	Nut (4)
42	Grommet, Motor Bracket (4)
43	Pulley, Motor (60 Hz.)
44	Shield, Motor (Upper)
46	Motor, 60 Hz. (Alt.) (G
46	Motor (Emerson) 60 Hz.
47	CAPACITOR
48	357030 Whirlpool Clamp
49	WP3390631 Whirlpool Screw
50	WPL 354195
51	WPL 98537
52	WPL 93549
53	WPL 95721
55	WPL 357395
56	WPL 362086
56	WPL 362738
57	WPL 370950
58	WPL 351499
58	WPL 351500
59	WPL 16062
60	WP72107 Whirlpool Touchup
60	72017 Whirlpool Appliance Touch-Up Paint White
60	350956 Whirlpool Spray Assembly
60	350938 Whirlpool Spray Gun
60	WPL 90877
60	WPL 359325
60	WPL 359326
60	WPL 369743
60	WPL 372832
60	WPL 380472
60	WPL 380503
60	350930 Whirlpool White Spray Paint
60	Bag, Miscellaneous
60	WPL 799351
60	Paint, Spray 13 Oz. (Avocado)
60	paint, spray 13 oz. (coffee)
60	Paint, Touch-Up 1/2 Oz. (Coffee)
60	Harness, Cabinet
60	72109 Whirlpool Dacor Avocado Touch-Up Paint
60	Guide, Laundry
60	Golden Harvest
60	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
60	Leveler (Thinner)
60	WPL 88916
