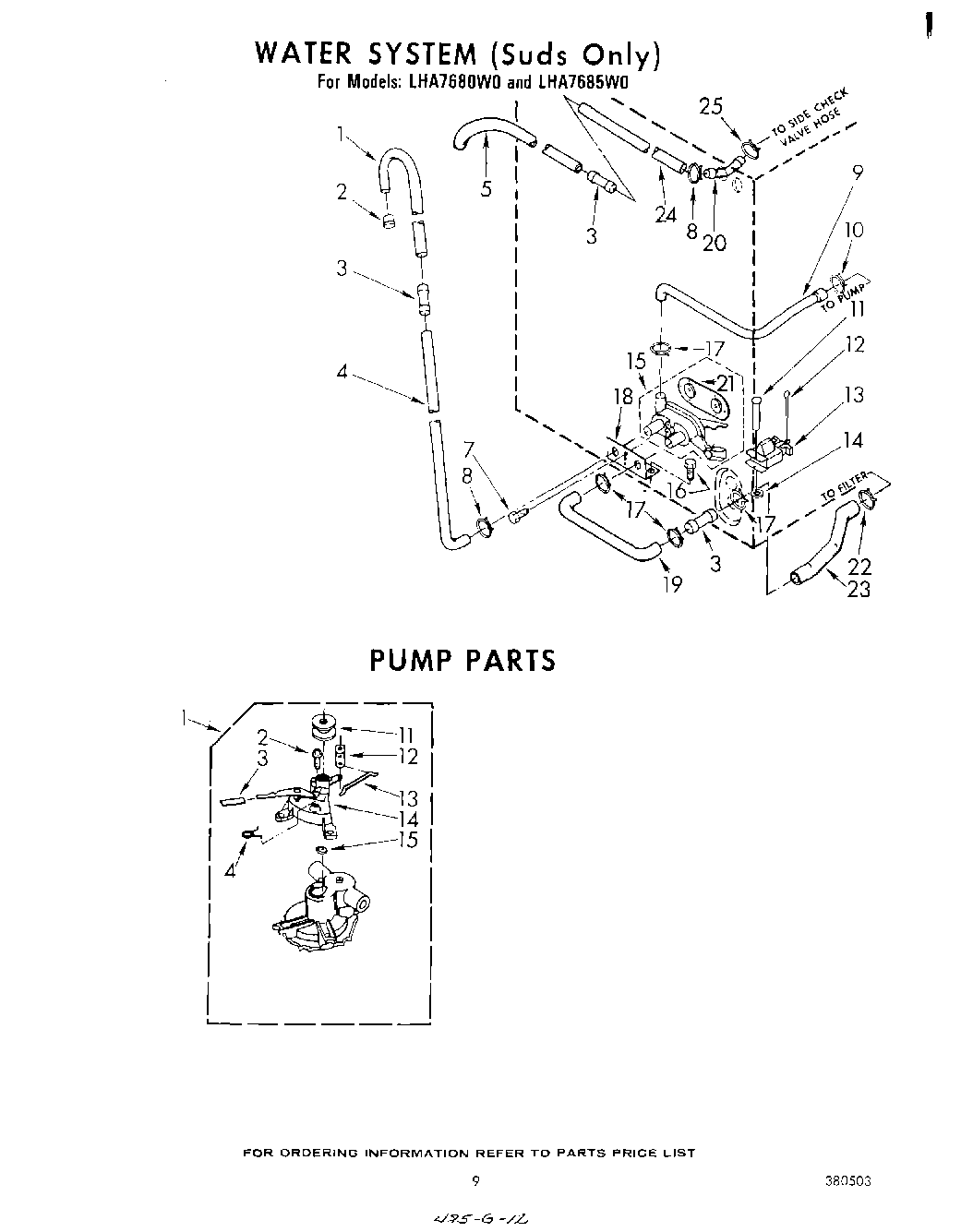

LHA7685W0 06 – WATER SYSTEM , PUMP

Products

Position	Product
1	350365 Whirlpool Dryer Washer Water Pump, 2-Port
1	Hose, Gooseneck
2	WP273556 Whirlpool Screw
2	Strainer, Hose
3	Sleeve
3	WP16272 Whirlpool Hose Coupling
4	Spring, Toggle
4	96746 Whirlpool Drain Hose Assembly
5	Hose, Gooseneck
7	Screw & Washer
8	WP356138 Whirlpool Hose Clamp
9	Hose, Pump To Two-Way Valve
10	WP616099 Whirlpool Clamp
11	Rivet
11	Pulley, Pump (Alternate)
12	Lever, Valve
12	Pin, Cotter (1/8 x 3/4)
13	Rod, Connecting
13	Solenoid
14	Bearing Block Assembly
14	WP90296 Whirlpool Clip
15	Wick, Oil
15	Valve, Two-Way
16	SCREW
18	Bracket
19	Hose, Two-Way Valve To Connector
20	Connector, Hose
21	Diaphragm
23	Hose, Filter To Cabinet
24	Hose, Outlet
25	WP285655 Whirlpool Hose Clamp
