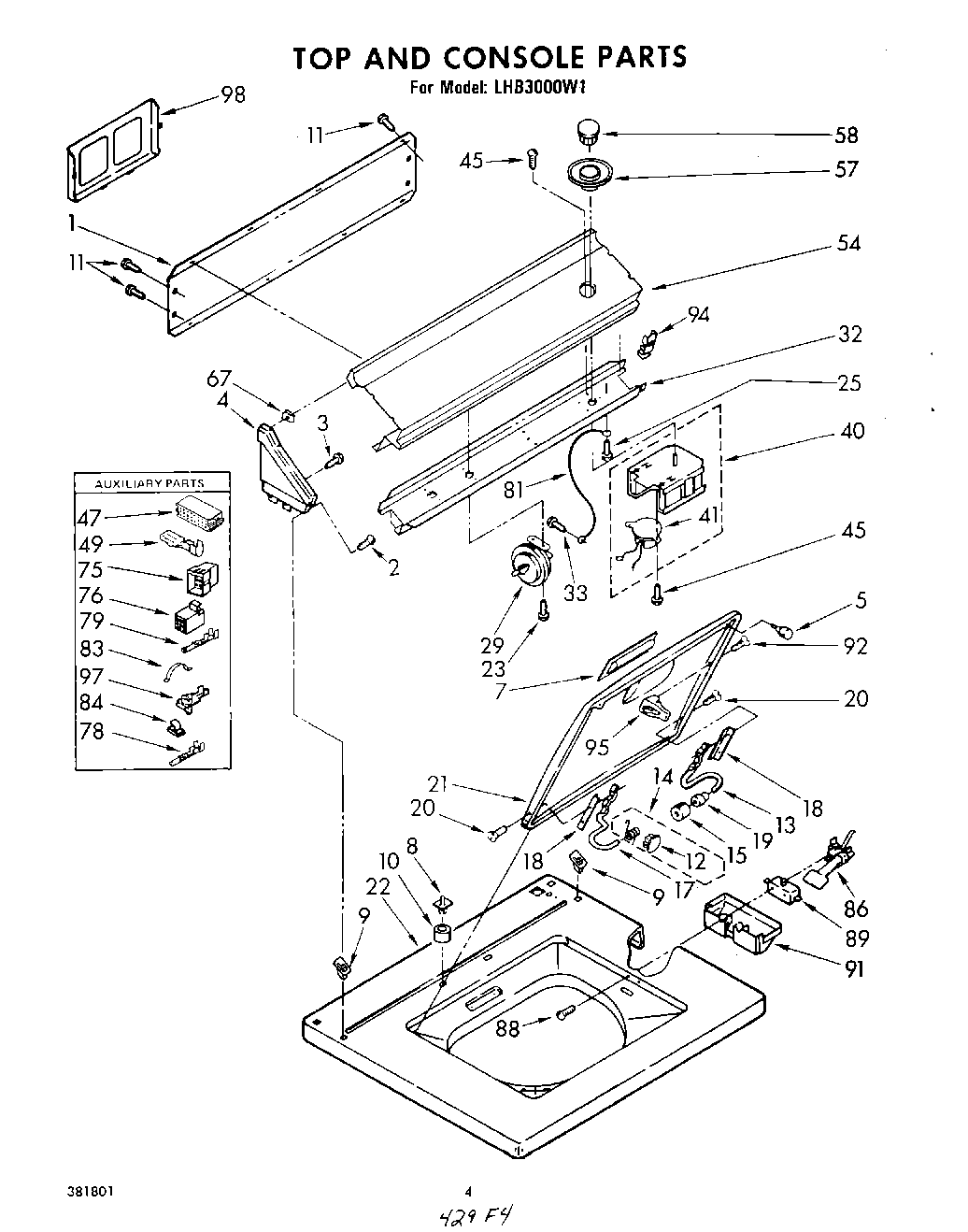

LHB3000W1 04 – TOP AND CONSOLEadmin2025-04-26T12:16:36+00:00LHB3000W1 04 – TOP AND CONSOLE
Products
| Position | Product |
|---|
| 799344 Whirlpool Refrigerator Paint |
| 1 | Panel, Rear Console |
| 2 | Screw, 8-18 x 1 (2) |
| 3 | WPL 355326 |
| 4 | Cap, End (L.H.) (White Cap, End (R.H.)) |
| 4 | Cap, End (L.H.) (White) |
| 5 | WP9724509 Whirlpool Bumper |
| 7 | WP686711 Whirlpool Door Handle |
| 8 | Nut, Push-In (2) |
| 9 | WP357213 Whirlpool Hinge Stopper |
| 10 | Sleeve, Anchor (2) |
| 11 | W11693756 Whirlpool Screw Assembly |
| 12 | Plug, Button |
| 13 | WP91770 Whirlpool Hinge |
| 14 | Spring & Button, Lid ((L.H.)) |
| 15 | Bumper, Lid Hinge |
| 17 | WP54584 Whirlpool Hinge |
| 18 | WP21097 Whirlpool Pad |
| 19 | WP21258 Whirlpool Washer Lid Hinge Bearing |
| 20 | SCREW |
| 21 | Lid (White) |
| 22 | Lid (White) |
| 23 | WP90767 Whirlpool Screw |
| 25 | WP3351614 Whirlpool Screw |
| 29 | Switch, Water Level |
| 32 | Bracket, Control |
| 33 | SCREW |
| 40 | Timer, 60 Hz. (C.C.A.) |
| 41 | Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) |
| 45 | WP356418 Whirlpool Screw |
| 47 | W10876590 Whirlpool Connector |
| 49 | Terminal, Female |
| 54 | Panel, Control |
| 57 | Dial, Timer |
| 58 | Knob, Timer |
| 67 | Clip (4) |
| 75 | Cap, Terminal (Console Harness) |
| 76 | Plug, Terminal (Cabinet Harness) |
| 78 | WP596797 Whirlpool Terminal |
| 79 | WP94614 Whirlpool Terminal |
| 81 | Wire, Ground |
| 83 | 8528351 Whirlpool Clip |
| 84 | WP90016 Whirlpool Clip |
| 86 | Switch Actuator Assembly |
| 88 | Screw & Washer, Lid Switch (2) |
| 89 | W10820036 Whirlpool Door Switch Kit |
| 91 | WP359231 Whirlpool Shield |
| 92 | Screw & Washer |
| 94 | W10113937 Whirlpool Clamp |
| 95 | Strike, Lid Switch |
| 97 | WPL 357695 |
| 98 | WPL 799351 |
| 98 | 350930 Whirlpool White Spray Paint |
| 98 | Leveler (Thinner) |
| 98 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 98 | 350938 Whirlpool Spray Gun |
| 98 | Rack, Literature |
