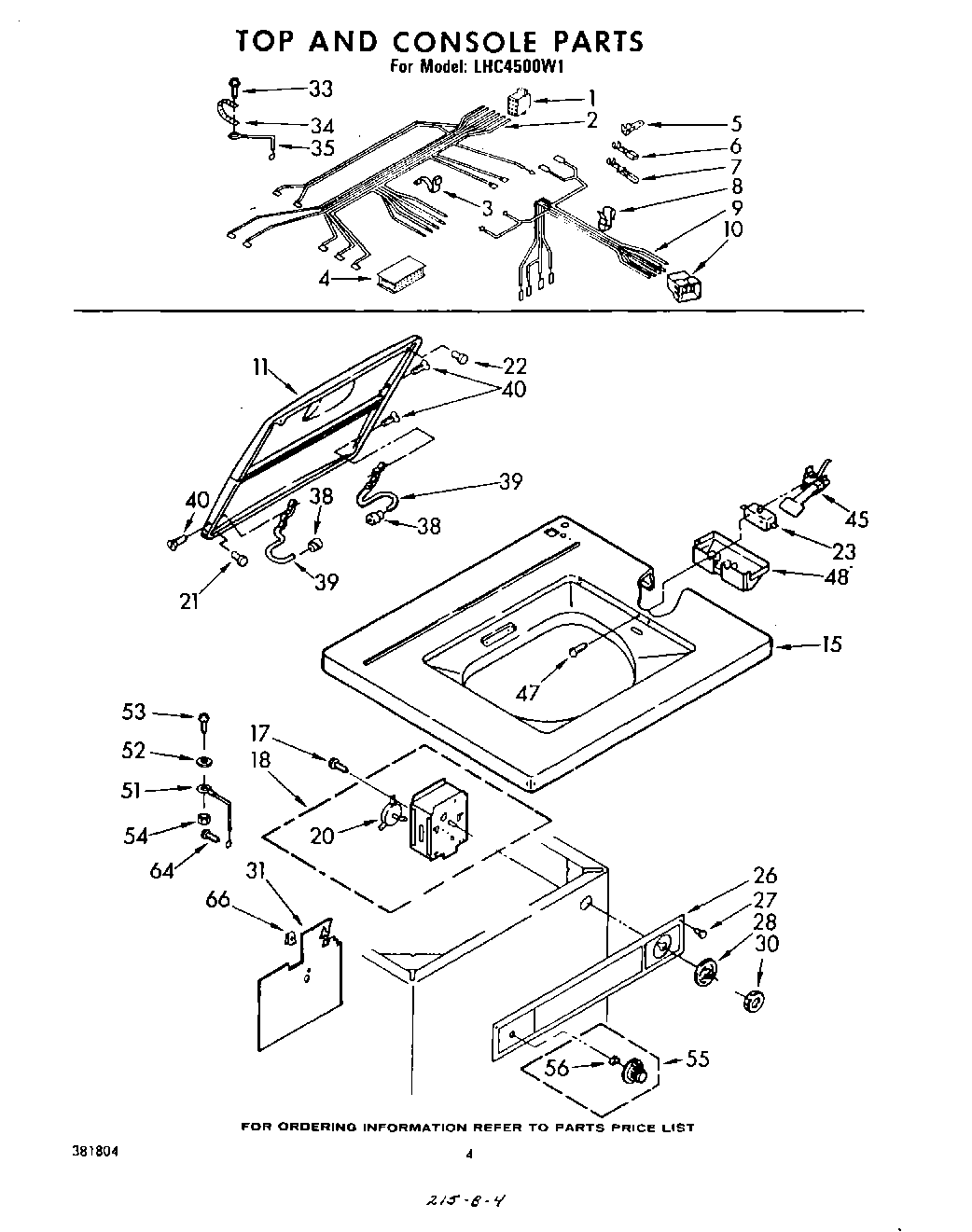

LHC4500W1 03 – TOP AND CONSOLE

LHC4500W1 03 – TOP AND CONSOLE

Written by

in

LHC4500W1 03 – TOP AND CONSOLE

Products

Position	Product
	Almond (Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Golden Harvest (Uncut)
	799344 Whirlpool Refrigerator Paint
	Enamel, Coffee (1 Qt. Uncut)
1	Plug, Terminal (Cabinet Harness)
2	Harness, Upper
3	WP90016 Whirlpool Clip
4	W10876590 Whirlpool Connector
5	Terminal, Female
6	WP94614 Whirlpool Terminal
7	WP596797 Whirlpool Terminal
8	Clip, Harness
9	Harness, Lower
10	Cap, Terminal (Console Harness)
11	Lid (White)
11	Lid (Almond)
11	Lid (Golden Harvest)
11	Lid (New Avocado)
11	Lid (Coffee)
15	Top (Almond)
15	Top (Golden Harvest)
15	Top (New Avocado)
15	Top (White)
15	Top (Coffee)
17	WP356418 Whirlpool Screw
18	Timer, Disconnect
20	Motor, Timer 60 Hz.
21	Bumper, Rear Lid
22	Bumper, Front Lid
23	W10820036 Whirlpool Door Switch Kit
26	Panel, Control
27	Rivet
28	Dial, Timer
30	WPL 356500
31	Shield, Timer
33	Screw, Ground (10-24 x 1)
34	Strap, Ground
35	WPL 364089
38	WP21258 Whirlpool Washer Lid Hinge Bearing
39	WP91770 Whirlpool Hinge
40	SCREW
45	Actuator, Lid Switch
47	Screw & Washer, Lid Switch (2)
48	WP359231 Whirlpool Shield
51	Wire, Ground
52	Washer, Lock
53	WP308544 Whirlpool Screw
54	W10080180 Whirlpool Nut
55	Control Knob Assembly
56	Clip
64	WP488234 Whirlpool Air Conditioner Screw
66	350956 Whirlpool Spray Assembly
66	Leveler (Thinner)
66	WP72107 Whirlpool Touchup
66	72017 Whirlpool Appliance Touch-Up Paint White
66	350938 Whirlpool Spray Gun
66	WPL 379237
66	WPL 381804
66	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
66	Golden Harvest
66	350930 Whirlpool White Spray Paint
66	Miscellaneous Parts Bag
66	Guide, Laundry
66	Installation Instructions
66	WPL 799351
66	Paint, Spray 13 Oz. (Avocado)
66	paint, spray 13 oz. (coffee)
66	72109 Whirlpool Dacor Avocado Touch-Up Paint
66	Paint, Touch-Up 1/2 Oz. (Coffee)
66	Clip, Push-On
