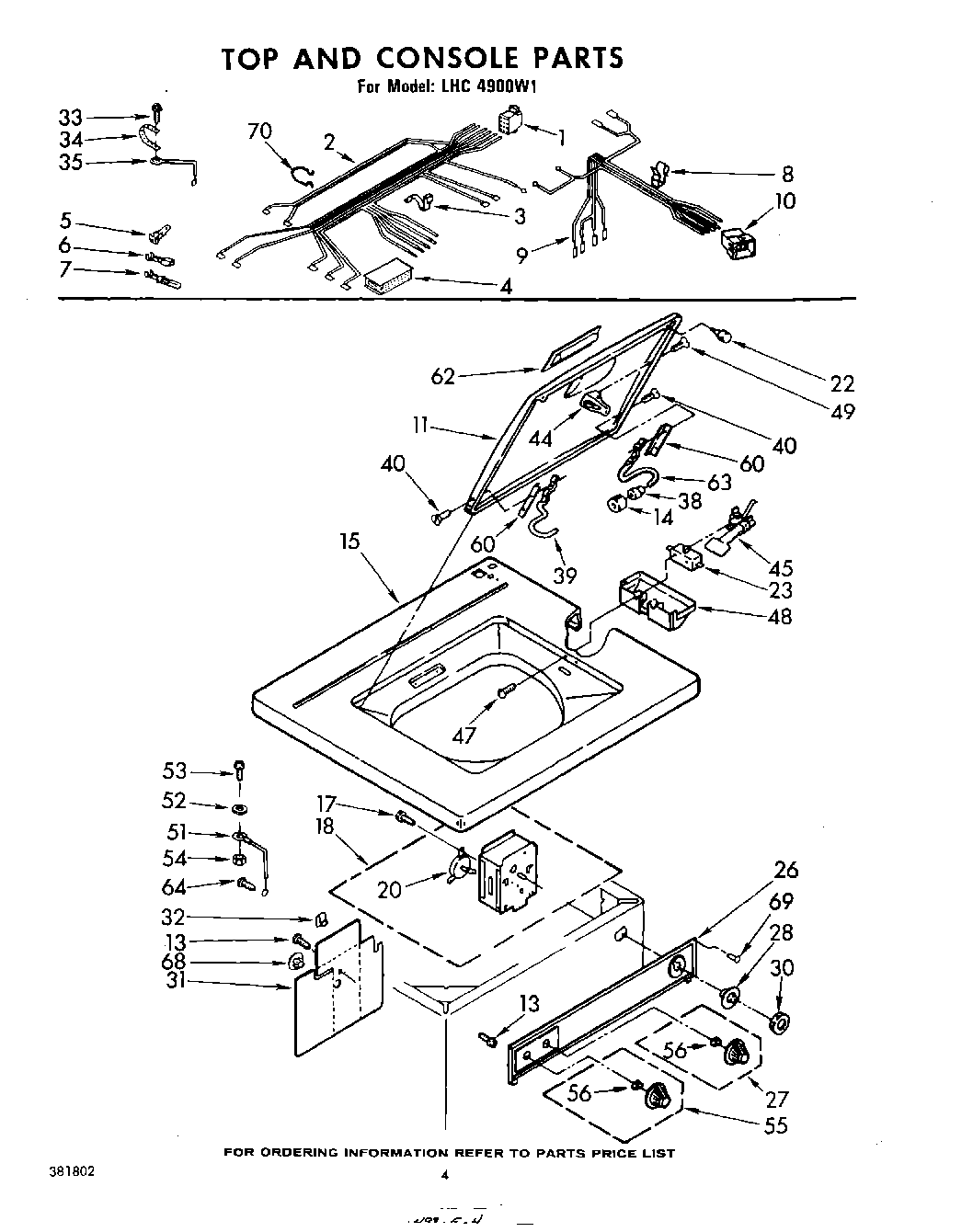

LHC4900W1 03 – TOP AND CONSOLEadmin2025-04-26T12:18:01+00:00LHC4900W1 03 – TOP AND CONSOLE
Products
| Position | Product |
|---|
| 1 | Plug, Terminal (Cabinet Harness) |
| 2 | Harness, Upper |
| 3 | WP90016 Whirlpool Clip |
| 4 | W10876590 Whirlpool Connector |
| 5 | Terminal, Female |
| 6 | WP94614 Whirlpool Terminal |
| 7 | WP596797 Whirlpool Terminal |
| 8 | Clip, Harness |
| 9 | Harness, Lower |
| 10 | Cap, Terminal (Console Harness) |
| 11 | Lid (New Avocado) |
| 11 | Lid (Almond) |
| 11 | Lid (White) |
| 11 | Lid (Golden Harvest) |
| 11 | Lid (Coffee) |
| 13 | SCREW |
| 14 | Bumper, Lid Hinge |
| 15 | Top (White) |
| 15 | Top (Golden Harvest) |
| 15 | Top (New Avocado) |
| 15 | Top (Almond) |
| 15 | Top (Coffee) |
| 17 | WP356418 Whirlpool Screw |
| 18 | Timer, Disconnect |
| 20 | Motor, Timer 60 Hz. |
| 22 | WP9724509 Whirlpool Bumper |
| 23 | W10820036 Whirlpool Door Switch Kit |
| 26 | Panel, Control |
| 27 | Control Knob Assembly |
| 28 | Dial, Timer |
| 30 | WPL 356500 |
| 31 | Shield, Timer |
| 32 | Clip, Harness |
| 33 | Screw, Ground (10-24 x 1) |
| 34 | Strap, Ground |
| 35 | WPL 364089 |
| 38 | WP21258 Whirlpool Washer Lid Hinge Bearing |
| 39 | WP54584 Whirlpool Hinge |
| 40 | SCREW |
| 44 | Strike, Lid Switch |
| 45 | Actuator, Lid Switch |
| 47 | Screw & Washer, Lid Switch (2) |
| 48 | WP359231 Whirlpool Shield |
| 49 | Screw & Washer |
| 51 | Wire, Ground |
| 52 | Washer, Lock |
| 53 | WP308544 Whirlpool Screw |
| 54 | W10080180 Whirlpool Nut |
| 55 | Knob Assembly, Water Level |
| 56 | Clip |
| 60 | WP21097 Whirlpool Pad |
| 62 | Handle, Lid (New Avocado) |
| 62 | Handle, Lid (Golden Harvest) |
| 62 | Handle, Lid (Almond) |
| 62 | Handle, Lid (Coffee) |
| 62 | Handle, Lid (White) |
| 63 | WP91770 Whirlpool Hinge |
| 64 | WP488234 Whirlpool Air Conditioner Screw |
| 68 | Clip, Push-On |
| 69 | Rivet |
| 70 | Clip, Harness (2) |
