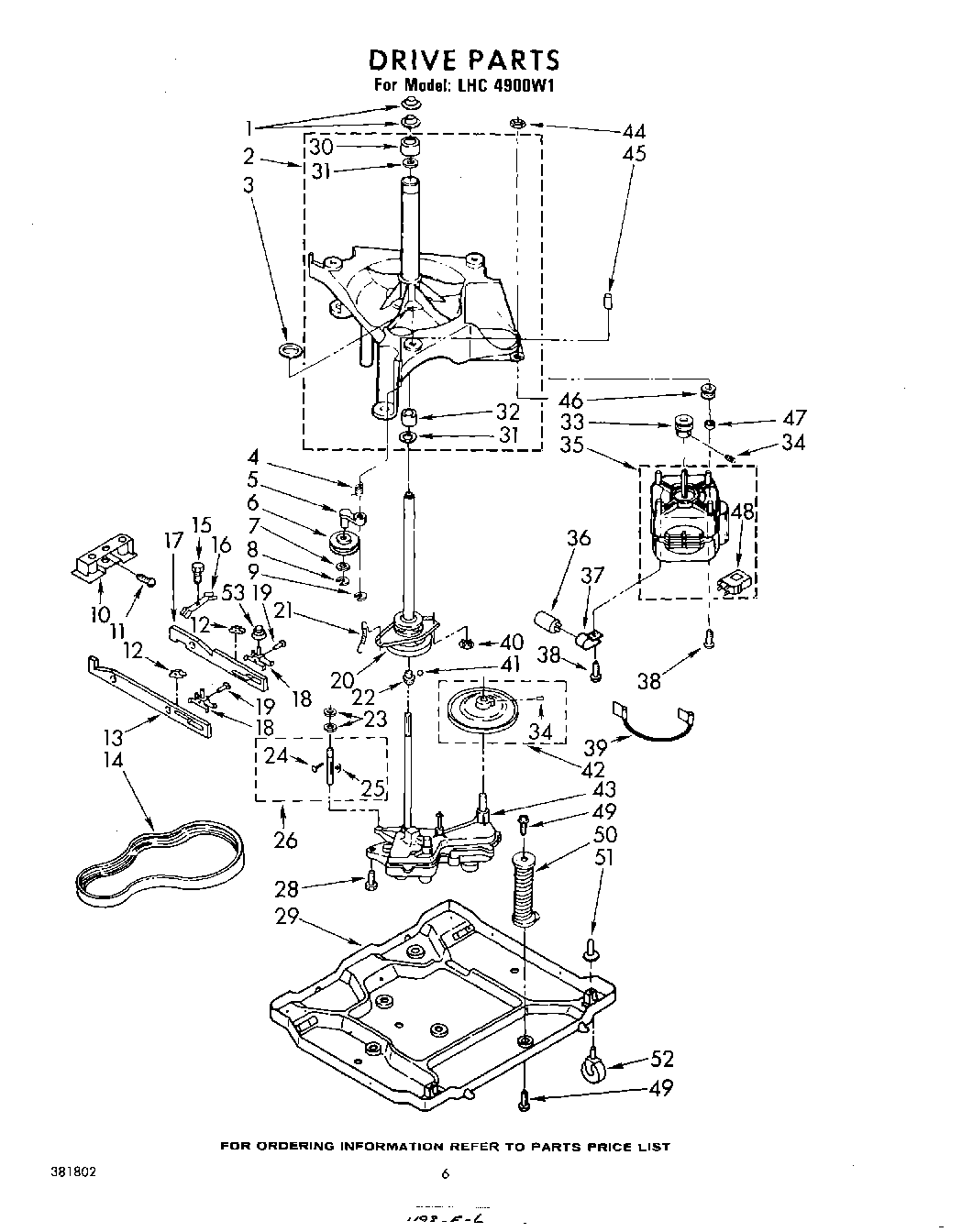

| 1 | WP8577376 Whirlpool Seal |
| 2 | Baseplate & Centerpost |
| 3 | Gasket, Tub (7) |
| 4 | Spring, Idler Arm |
| 5 | Idler Arm & Shaft |
| 6 | Pulley, Idler |
| 7 | Washer, Thrust |
| 8 | Ring, Retainer |
| 9 | Ring, Retainer |
| 10 | Magnet |
| 11 | Screw, Taper End |
| 12 | Guide, Cam Bar |
| 13 | Cam, Bar Spin |
| 14 | Belt, ``V`` (Alternate) |
| 14 | Belt, ``V`` ((Alternate)) |
| 15 | Screw, 1/4-28 x 1/2 |
| 16 | Spring, Brake |
| 17 | Cam, Agitator & Pump |
| 18 | Plunger |
| 19 | Rivet |
| 20 | Basket Drive & Brake |
| 21 | Spring, Brake Yoke |
| 22 | Support, Spin Tube |
| 23 | WP120393 Whirlpool Washer Assembly |
| 24 | Pin, Gear Fork Shaft |
| 25 | Roller, Gear Fork Shaft |
| 26 | Shaft, Basket Clutch |
| 28 | Screw & Washer (3) |
| 29 | Baseplate, Lower |
| 30 | Bearing, Upper |
| 31 | W11095997 Whirlpool Seal |
| 32 | WPL 354195 |
| 33 | Pulley, Motor |
| 34 | Setscrew, 5/16-18 x 1/2 |
| 35 | Motor, 60 Hz. (Emerson) |
| 36 | CAPACITOR |
| 37 | 357030 Whirlpool Clamp |
| 38 | WP3390631 Whirlpool Screw |
| 39 | WPL 370950 |
| 40 | Retainer, Brake Yoke |
| 41 | Ball |
| 42 | Pulley, Main Drive |
| 43 | Gearcase (Complete) |
| 44 | Nut (4) |
| 45 | Sleeve, Cabinet Support (2) |
| 46 | Grommet, Motor (4) |
| 47 | Bumper, Lid Hinge |
| 48 | WPL 362738 |
| 49 | Screw & Washer |
| 50 | Spring & Dampener (No. 3) |
| 50 | Spring & Dampener (No. 1) |
| 50 | Spring & Dampener (No. 2) |
| 51 | Socket, Caster (Alternate) |
| 52 | WP3370639 Whirlpool Caster |
| 53 | Spring, Agitator Plunger |
