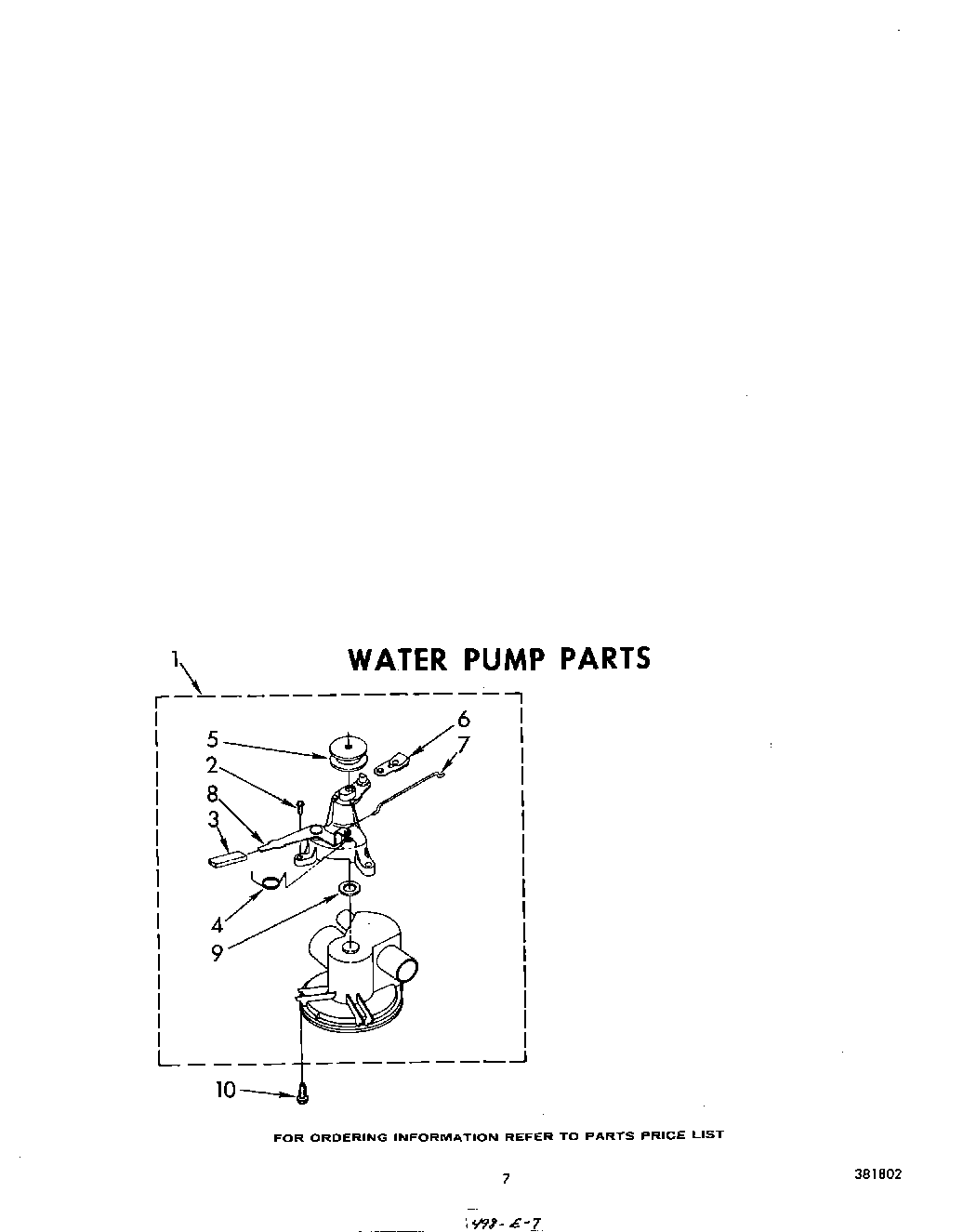

LHC4900W1 05 – WATER PUMP , LIT/OPTIONAL

LHC4900W1 05 – WATER PUMP , LIT/OPTIONAL

Written by

in

LHC4900W1 05 – WATER PUMP , LIT/OPTIONAL

Products

PositionProduct
1Pump Assembly (Complete)
2WP273556 Whirlpool Screw
3Sleeve
4Spring, Toggle
5Pulley, Pump
6Lever, Valve
7Rod, Connecting
8Bearing Block Assembly
9Wick, Oil
10386011 Whirlpool Screw
