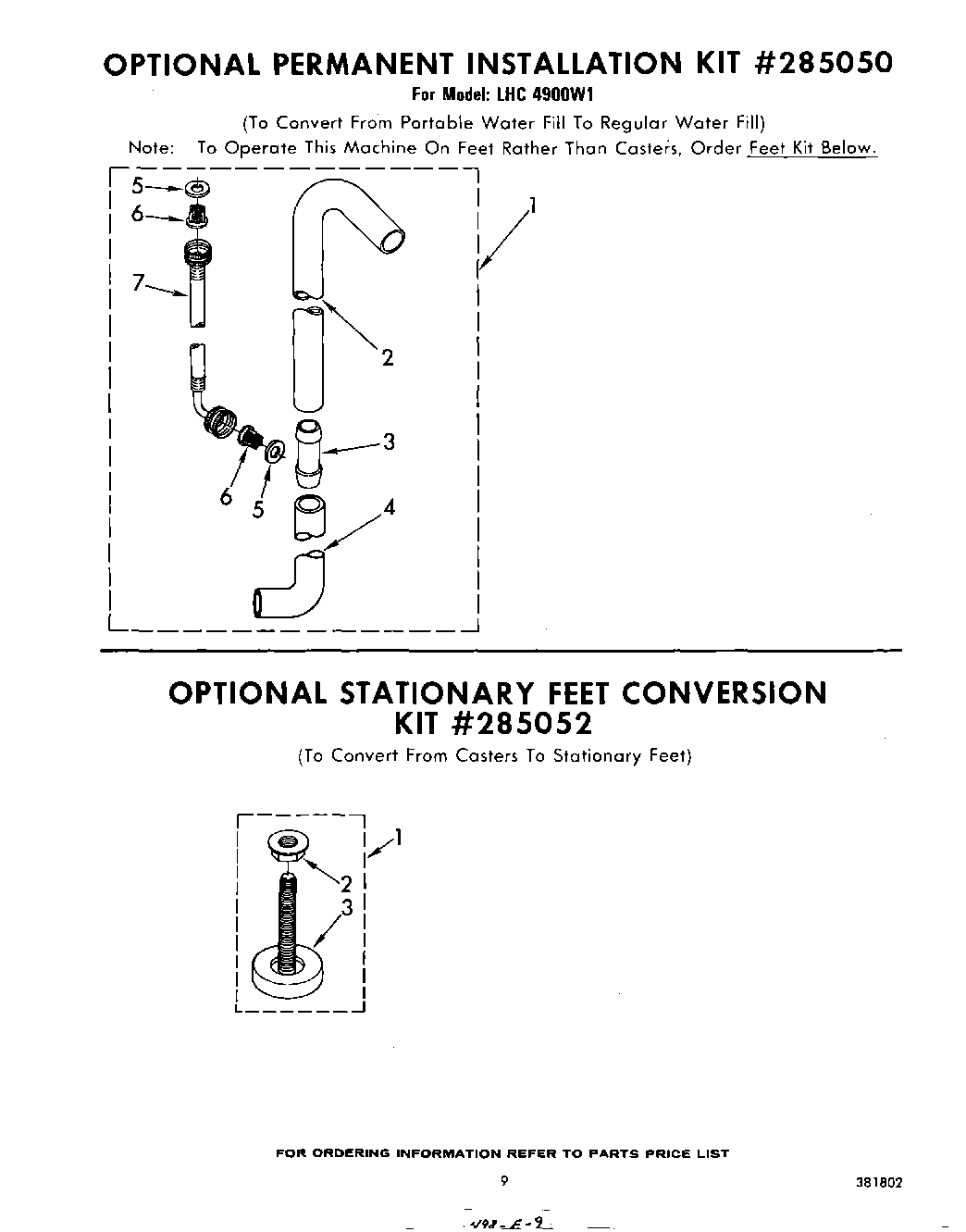

LHC4900W1 07 – OPTIONAL PERMANENT INSTALLATION 28

Written by

Products

Position	Product
1	Hose Kit, Permanent Installation
1	Feet Kit (Kit Contains 4 Feet & 4 Locknuts)
2	Hose, Drain
2	Nut, Flange (4)
3	WP16272 Whirlpool Hose Coupling
3	WPW10001130 Whirlpool Leveling Leg
4	96746 Whirlpool Drain Hose Assembly
5	WP16123 Whirlpool Washer
6	285452A Whirlpool Hose Seal and Screen
7	WP76314 Whirlpool Fill Hose
