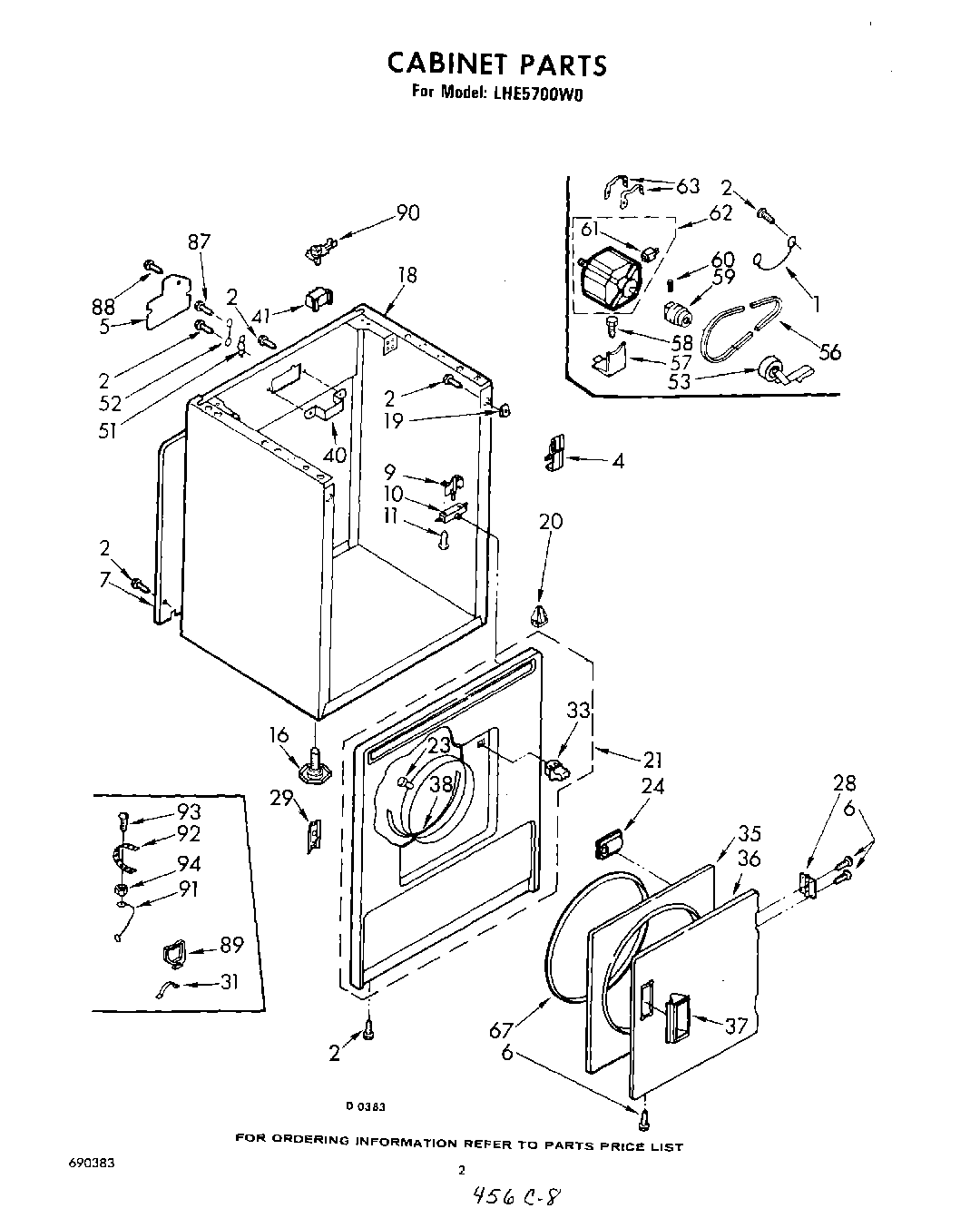

LHE5700W0 02 – SECTION
Written by
in
LHE5700W0 02 – SECTION
Products
Position
Product
1
Wire, Ground (Motor)
4
Clip, Retainer
5
Cover, Terminal Block
6
Screw
7
Panel, Rear
9
WP691581 Whirlpool Actuator
10
W10820036 Whirlpool Door Switch Kit
11
WP98129 Whirlpool Screw
16
49621 Whirlpool Leveling Feet
18
Cabinet Assembly (New Avocado)
18
Cabinet Assembly (Almond)
18
Cabinet Assembly (Golden Harvest)
18
Cabinet Assembly (White)
18
Cabinet Assembly (Coffee)
19
WP98234 Whirlpool Nut
20
WP18776 Whirlpool Lock
21
Upper Front Panel Assembly (Almond)
21
Upper Front Panel Assembly (White)
21
Upper Front Panel Assembly (Coffee)
21
Front Panel Assembly (New Avocado)
21
Upper Front Panel Assembly (Golden Harvest)
23
279220 Whirlpool Clip
28
WP348023 Whirlpool Hinge
29
W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
31
8528351 Whirlpool Clip
33
279570 Whirlpool Dryer Door Latch Kit
35
280077 Whirlpool Door
36
WPL 689318
36
WPL 689315
36
Door, Front (Almond)
36
WP348205 Whirlpool Door
36
WPL 689319
37
WPL 689307
37
WPL 689583
37
Handle, Door (Golden Harvest)
37
Handle, Door (Almond)
37
WP686711 Whirlpool Door Handle
38
279264 Whirlpool Bearing and Seal Kit
40
279320 Whirlpool Dryer Rear Terminal Block Kit
51
WP8066217 Whirlpool Hinge
52
Wire, Ground
53
WP691366 Whirlpool Dryer Idler Pulley Assembly
56
341241 Whirlpool Dryer Drum Belt
57
WP348780 Whirlpool Base
58
3400500 Whirlpool Screw
59
W11618508 Whirlpool Drive Motor
59
W11233559 Whirlpool Motor Pulley
60
SCREW, SET
61
Switch (Use W/338742 Motor)
61
279827 Whirlpool Dryer Drive Motor
63
WP660658 Whirlpool Clamp
67
W11613302 Whirlpool Door Seal
87
SCREW
89
Clip, Harness (Rear Bulkhead Area)
90
279318 Whirlpool Terminal
91
WPL 685449
92
Strap, Ground
93
Screw, Ground (10-24 x 1)
94
W10080180 Whirlpool Nut
←
