LHE5700W0 04 – SECTION

LHE5700W0 04 – SECTION

Written by

in

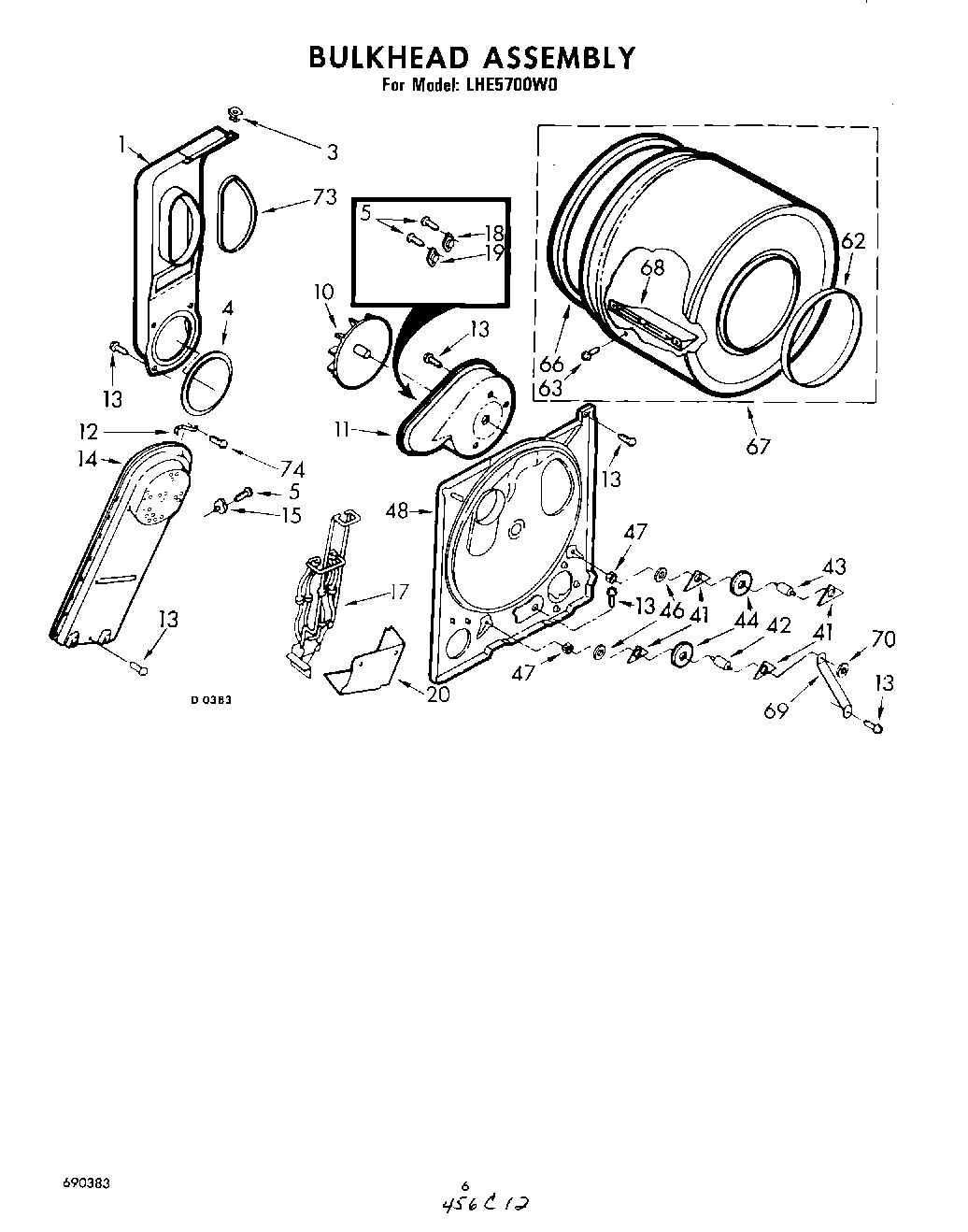

LHE5700W0 04 – SECTION

Products

PositionProduct
1279505 Whirlpool Chute
398460 Whirlpool Nut
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15279054 Whirlpool Dryer High Limit Thermostat L290 3W
17Element, Heater (Element, Heater (50 Hz.) (Use W/Model 3LE5700XKW0) (Use 279139 Jumper Wire For Heat
17WP4391960 Whirlpool Dryer Heating Element
19WP694674 Whirlpool Cycling Thermostat
20Reflector, Heat
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73SEAL
