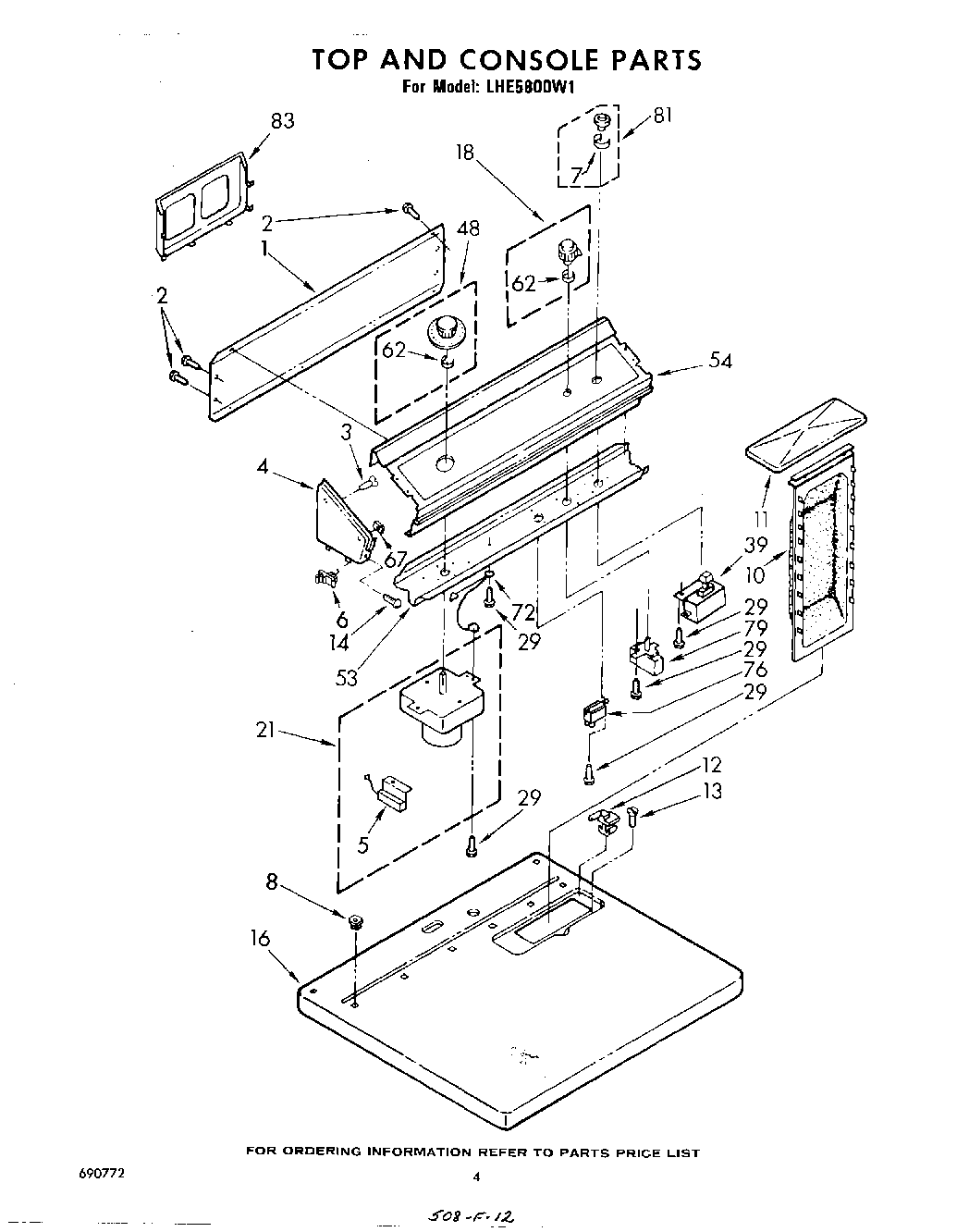

LHE5800W1 03 – SECTION
Written by
in
LHE5800W1 03 – SECTION
Products
Position
Product
Golden Harvest (Uncut)
Enamel, Coffee (1 Qt. Uncut)
Enamel, New Avocado (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
1
Panel, Rear
2
SCREW
3
WPL 355326
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4
Cap, End (L.H.) (Almond)
4
Cap, End (L.H.) (White)
4
Cap, End L.H. (Almond Cap, End R.H.)
4
End Cap Assembly, L.H. (Coffee)
4
Cap, End L.H. (Golden Harvest)
4
End Cap Assembly, L.H. (New Avocado)
4
End Cap Assembly, L.H. (Coffee)
4
Cap, End L.H. (White)
4
End Cap Assembly, L.H. (New Avocado)
5
279872 Whirlpool Resistor
6
Stop, Push-In Top
7
Clip
8
Nut, Push-In (2)
10
339392V Whirlpool Dryer Lint Filter Screen
11
Cover, Lint Screen (White)
11
Cover, Lint Screen (Coffee)
11
Cover, Lint Screen (New Avocado)
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (Golden Harvest)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
Screw, 8-18 x 1 (2)
16
Top (New Avocado)
16
top (white)
16
Top (Coffee)
16
Top (Golden Harvest)
16
Top (Almond)
18
Control Knob Assembly
21
Timer & Resistor Assembly, 60 Hz.
29
WP3390631 Whirlpool Screw
39
WPL 685067
39
Switch, Push-To-Start (Alternate)
48
Timer Knob Assembly
53
Bracket, Control
54
Panel, Control
62
WP688805 Whirlpool Spring Clip
67
WP689559 Whirlpool Nut
72
Wire, Ground
76
Buzzer, Mini
79
Switch, Temperature Selector
81
Pushbutton Assembly
83
WPL 690772
83
Leveler (Thinner) (2oz.)
83
WP72107 Whirlpool Touchup
83
72017 Whirlpool Appliance Touch-Up Paint White
83
WPL 799351
83
350956 Whirlpool Spray Assembly
83
WPL 691082
83
Rack, Literature
83
WPL 687857
83
350938 Whirlpool Spray Gun
83
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
83
Golden Harvest
83
Paint, Touch-Up 1/2 Oz. (Coffee)
83
72109 Whirlpool Dacor Avocado Touch-Up Paint
83
Instructions, Harness Rework
83
Supplement, Installation Instructions
83
Wire, 25` Roll (Red 12 Ga.)
83
Paint, Spray 13 Oz. (Avocado)
83
WPL 688643
83
WPL 688898
83
Wire, 25` Roll (Blue 16 Ga.)
83
Instructions, Wiring
83
W10851673 Whirlpool Transformer
83
350930 Whirlpool White Spray Paint
83
paint, spray 13 oz. (coffee)
←
