LHI7501W0 01 – SECTION

LHI7501W0 01 – SECTION

Written by

in

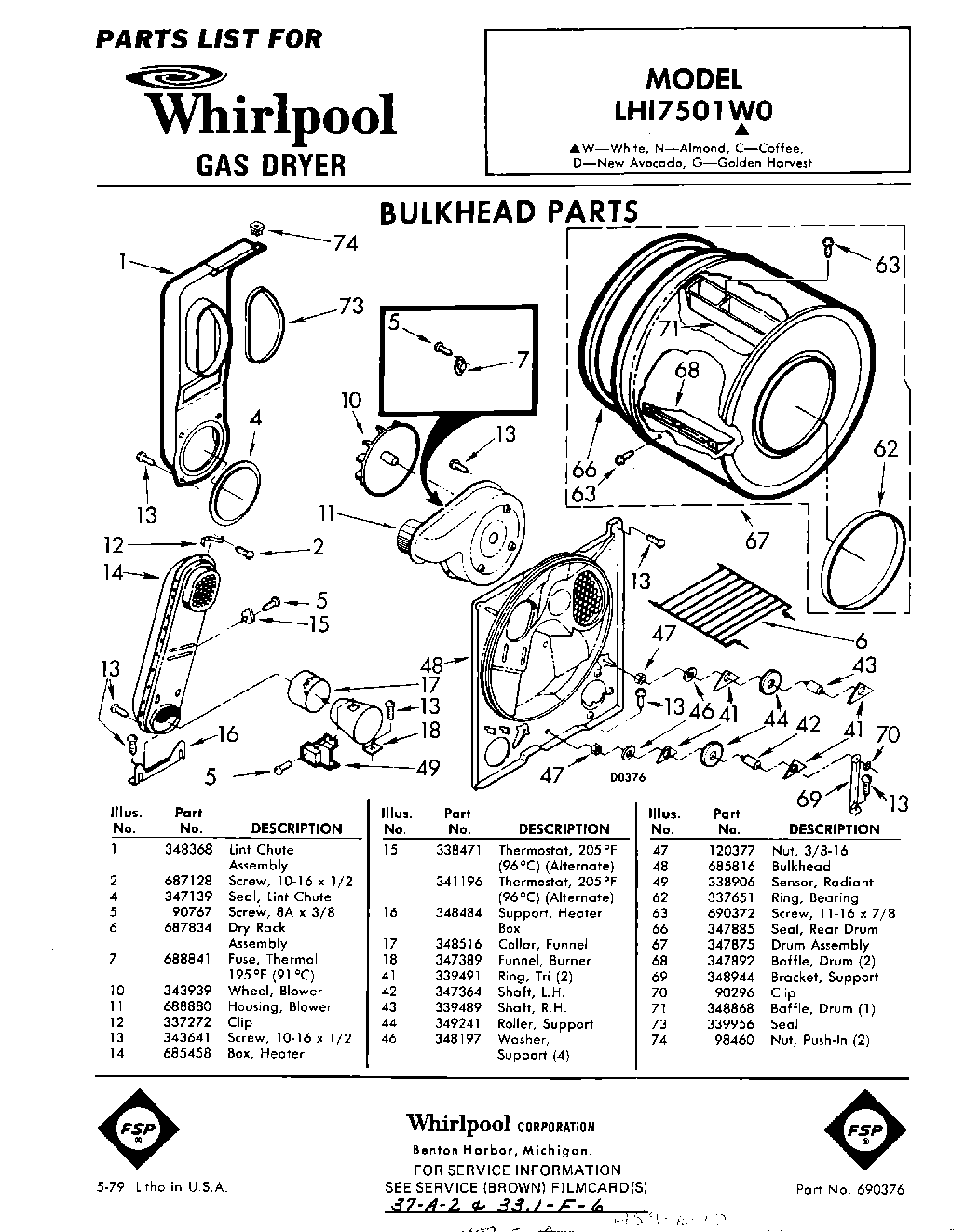

LHI7501W0 01 – SECTION

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6Dry Rack Assembly
7WP3390719 Whirlpool Dryer Thermal Fuse
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower (Domestic)
12279771 Whirlpool Clip
13SCREW
15(Alt.)
15Thermostat SPST (205)
16Support, Heater Box
18279900 Whirlpool Box O/S1
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48W11178667 Whirlpool Bulkhead Assembly
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394509 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66279408 Whirlpool Dryer Rear Drum Seal
67Drum Assembly
68Baffle, Drum (Long) (2)
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
71Baffle, Drum (Short) (1)
73SEAL
7498460 Whirlpool Nut
