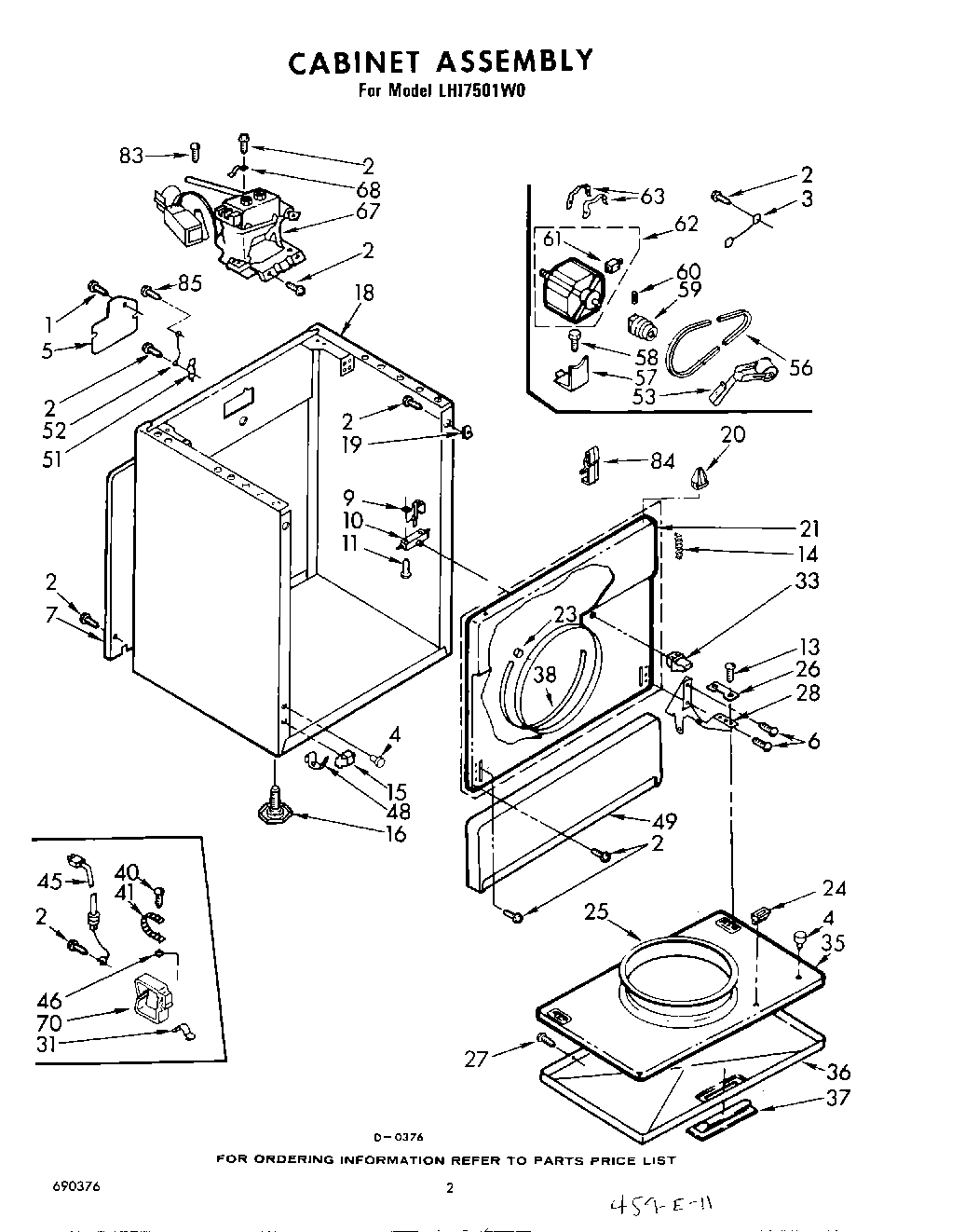

LHI7501W0 02 – SECTION

Products

Position	Product
3	Wire, Ground (Motor)
4	238614 Whirlpool Bumper Hinge
5	Cover, Terminal Block
6	Screw, 10-32 x 1/2
7	Panel, Rear
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
13	WP308685 Whirlpool Microwave Screw
14	Spring, Door (2)
15	Clip, Toe
16	49621 Whirlpool Leveling Feet
18	Cabinet (Almond)
18	Cabinet (Coffee)
18	Cabinet (Golden Harvest)
18	Cabinet (New Avocado)
18	Cabinet (White)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel Assembly, Upper Front (Coffee)
21	Upper Front Panel Assembly (New Avocado)
21	Upper Front Panel Assembly (Golden Harvest)
21	Upper Front Panel Assembly (Almond)
21	Upper Front Panel Assembly (White)
23	279220 Whirlpool Clip
25	WP3390733 Whirlpool Door Seal Assembly
26	W11252547 Whirlpool Clip Assembly
27	Screw
28	Hinge, L.H.
28	Hinge, R.H.
31	8528351 Whirlpool Clip
33	279570 Whirlpool Dryer Door Latch Kit
35	Door, Panel (Golden Harvest)
35	Door, Rear (Coffee)
35	Door, Panel (White)
35	Door, Rear (New Avocado)
35	Door, Panel (Almond)
36	Door, Front (White)
36	Door, Front (New Avocado)
36	Door, Front (Coffee)
36	Door, Front (Golden Harvest)
36	Door, Front (Almond)
37	Handle (Golden Harvest)
37	Handle, Door (Coffee)
37	WP348721 Whirlpool Handle
37	Handle (Almond)
38	279264 Whirlpool Bearing and Seal Kit
40	Screw, Ground (10-24 x 1)
41	Strap, Ground
45	W11222083 Whirlpool Power Cord
46	WPL 364089
48	WP297092 Whirlpool Clip
49	WPL 689247
49	WPL 689248
49	Panel, Toe (Golden Harvest)
49	Panel, Toe (White)
49	Panel, Toe (Almond)
51	WP8066217 Whirlpool Hinge
52	Wire, Ground
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WPL 348946
60	SCREW, SET
61	279827 Whirlpool Dryer Drive Motor
61	Switch (Use W/338742 Motor)
63	WP660658 Whirlpool Clamp
67	W10402145 Whirlpool LP Gas Connection
67	WPL 688637
67	Kit, Conversion Type 1 To Type 3 (MFD)
67	WPL 688639
68	341029 Whirlpool Clamp
70	Clip, Harness (Rear Bulkhead Area)
83	WPL 343826
84	Clip, Retainer
85	SCREW
