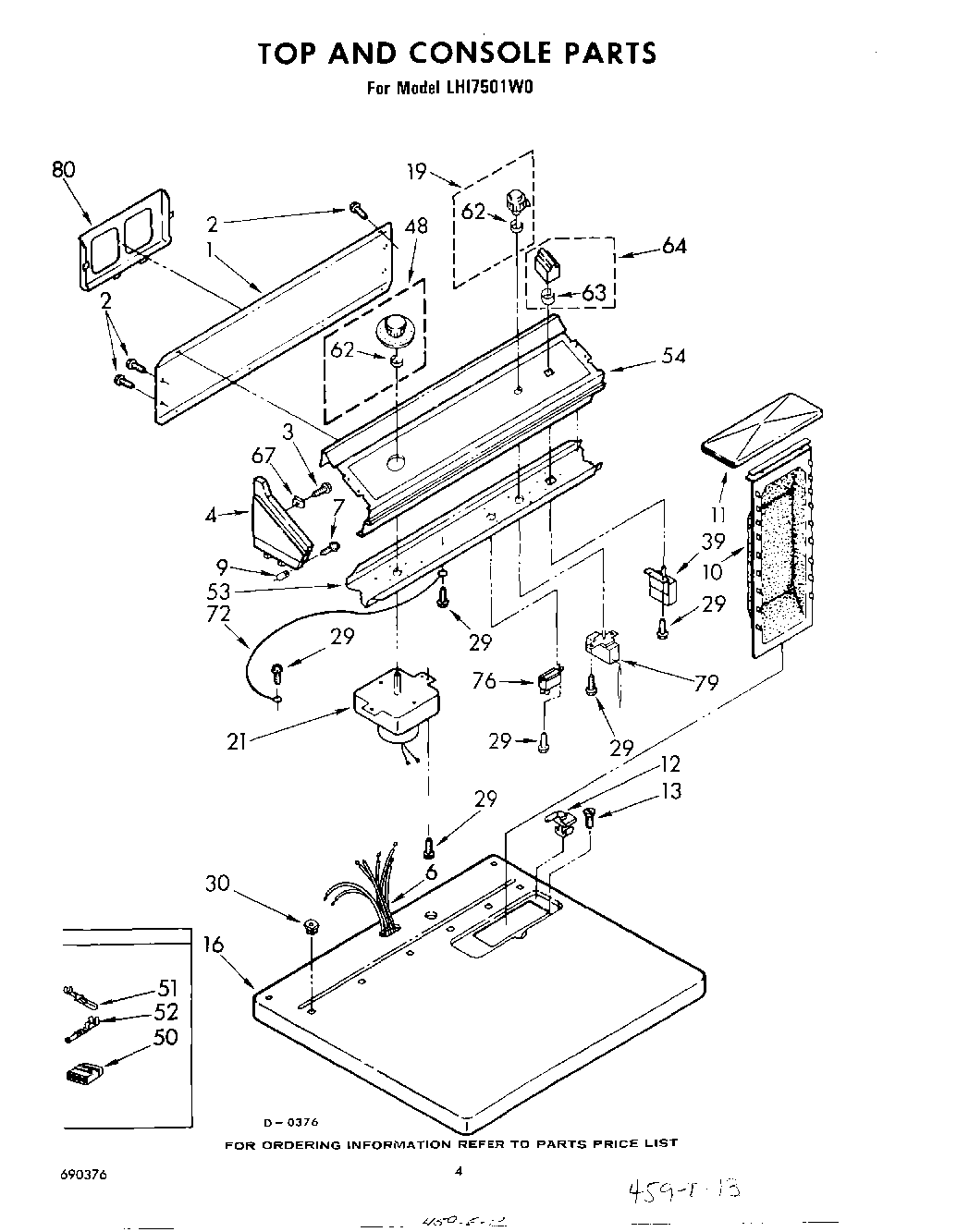

LHI7501W0 03 – SECTION

LHI7501W0 03 – SECTION

Written by

in

LHI7501W0 03 – SECTION

Products

Position	Product
	Enamel, New Avocado (1 Qt. Uncut)
	Wire, 25` Roll (Red 12 Ga.)
	Almond (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	Golden Harvest (Uncut)
1	Panel, Rear
2	SCREW
3	WPL 355326
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (Coffee)
4	End Cap Assembly, L.H. (Coffee)
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (Almond Cap, End R.H.)
6	Harness, Wiring
7	Screw, 8-18 x 1 (2)
9	Stop, Push-In Top
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (New Avocado)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Coffee)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Almond)
16	Top (New Avocado)
16	Top (Coffee)
16	top (white)
16	Top (Golden Harvest)
19	Control Knob Assembly
21	Timer Assembly 60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
39	Switch, Push-To-Start
48	Timer Knob Assembly
50	Connector (Door Switch)
50	353424 Whirlpool Connector
51	WP596797 Whirlpool Terminal
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
63	Clip
64	Button Assembly
67	WP689559 Whirlpool Nut
72	Wire, Ground
76	Buzzer, Mini
79	Thermostat, Adjustable
80	WPL 690376
80	350938 Whirlpool Spray Gun
80	Golden Harvest
80	350930 Whirlpool White Spray Paint
80	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
80	Paint, Spray 13 Oz. (Avocado)
80	350956 Whirlpool Spray Assembly
80	Leveler (Thinner)
80	72017 Whirlpool Appliance Touch-Up Paint White
80	WPL 690707
80	WP72107 Whirlpool Touchup
80	72109 Whirlpool Dacor Avocado Touch-Up Paint
80	Supplement, Installation Instructions
80	Wire, Adapter (4“ Long)
80	W10851673 Whirlpool Transformer
80	WPL 688898
80	Rack, Literature
80	Instructions, Wiring
80	WPL 799351
80	Instructions,
80	279320 Whirlpool Dryer Rear Terminal Block Kit
80	paint, spray 13 oz. (coffee)
80	Paint, Touch-Up 1/2 Oz. (Coffee)
80	Wire, Adapter (4-1/2 “ Long)
