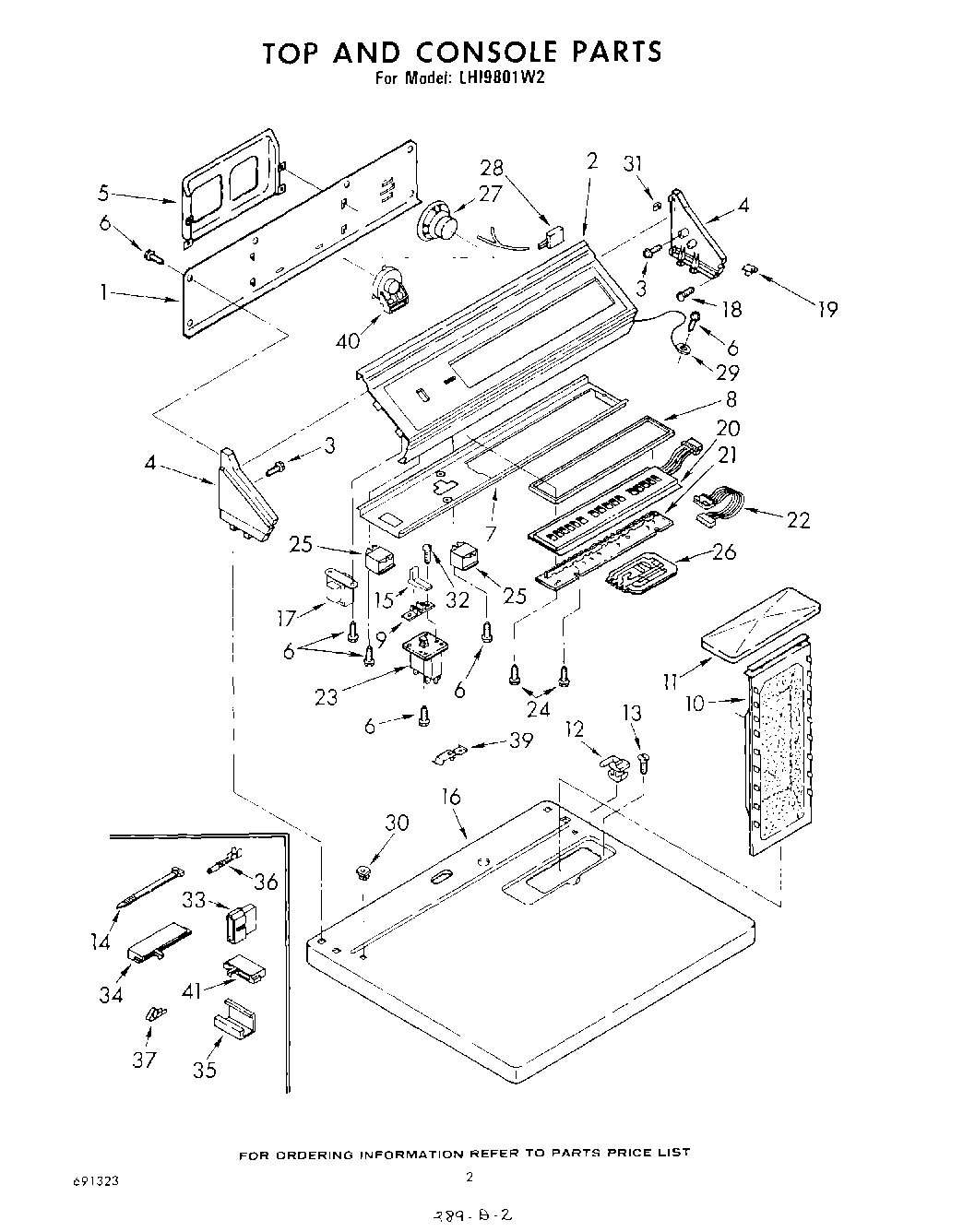

LHI9801W2 02 – TOP AND CONSOLE , LIT/OPTIONAL

Products

Position	Product
	799344 Whirlpool Refrigerator Paint
	Enamel, Coffee (1 Qt. Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Golden Harvest (Uncut)
	Almond (Uncut)
1	Panel, Rear Console
2	Panel, Control
3	WPL 355326
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (Coffee)
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	End Cap Assembly, L.H. (Coffee)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (Golden Harvest)
5	Rack, Literature
6	SCREW
7	Bracket, Control
8	Trim, Frame
9	Pivot, Lever
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (New Avocado)
11	Cover, Lint Screen (Coffee)
11	Cover, Lint Screen (Golden Harvest)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPW10339879 Whirlpool Wire Tie
15	Lever
16	Top (Golden Harvest)
16	Top (Coffee)
16	Top (New Avocado)
16	top (white)
16	Top (Almond)
17	Transformer
18	Screw, 8-18 x 1 (2)
19	Stop, Push-In Top
20	Module, Touch
21	Display Assembly
22	Harness, Display
23	Relay, Start-To-Stop
24	Screw, 8-18 x 1/2 (6)
25	Power Relay (2)
26	Microcomputer Assembly
27	Speaker
28	Speaker, Harness
29	Wire, Ground
30	Nut, Push-In (2)
31	WP689559 Whirlpool Nut
32	WPW10068250 Whirlpool Dishwasher Screw
33	Plug
34	WPL 60447
35	WPL 60719
36	WP596797 Whirlpool Terminal
36	WP94614 Whirlpool Terminal
37	Terminal
39	Clip, Wire (Tech Sheet/Top)
40	WPL 359188
41	350938 Whirlpool Spray Gun
41	WPL 60671
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	Leveler (Thinner)
41	WP72107 Whirlpool Touchup
41	WPL 691323
41	72017 Whirlpool Appliance Touch-Up Paint White
41	WPL 691255
41	350956 Whirlpool Spray Assembly
41	Instructions,
41	Golden Harvest
41	350930 Whirlpool White Spray Paint
41	WPL 688898
41	Instructions, Harness Rework
41	Supplement, Installation Instructions
41	Instructions, Wiring
41	W10851673 Whirlpool Transformer
41	WPL 799351
41	Paint, Spray 13 Oz. (Avocado)
41	paint, spray 13 oz. (coffee)
41	Paint, Touch-Up 1/2 Oz. (Coffee)
41	72109 Whirlpool Dacor Avocado Touch-Up Paint
41	WPL 691351
