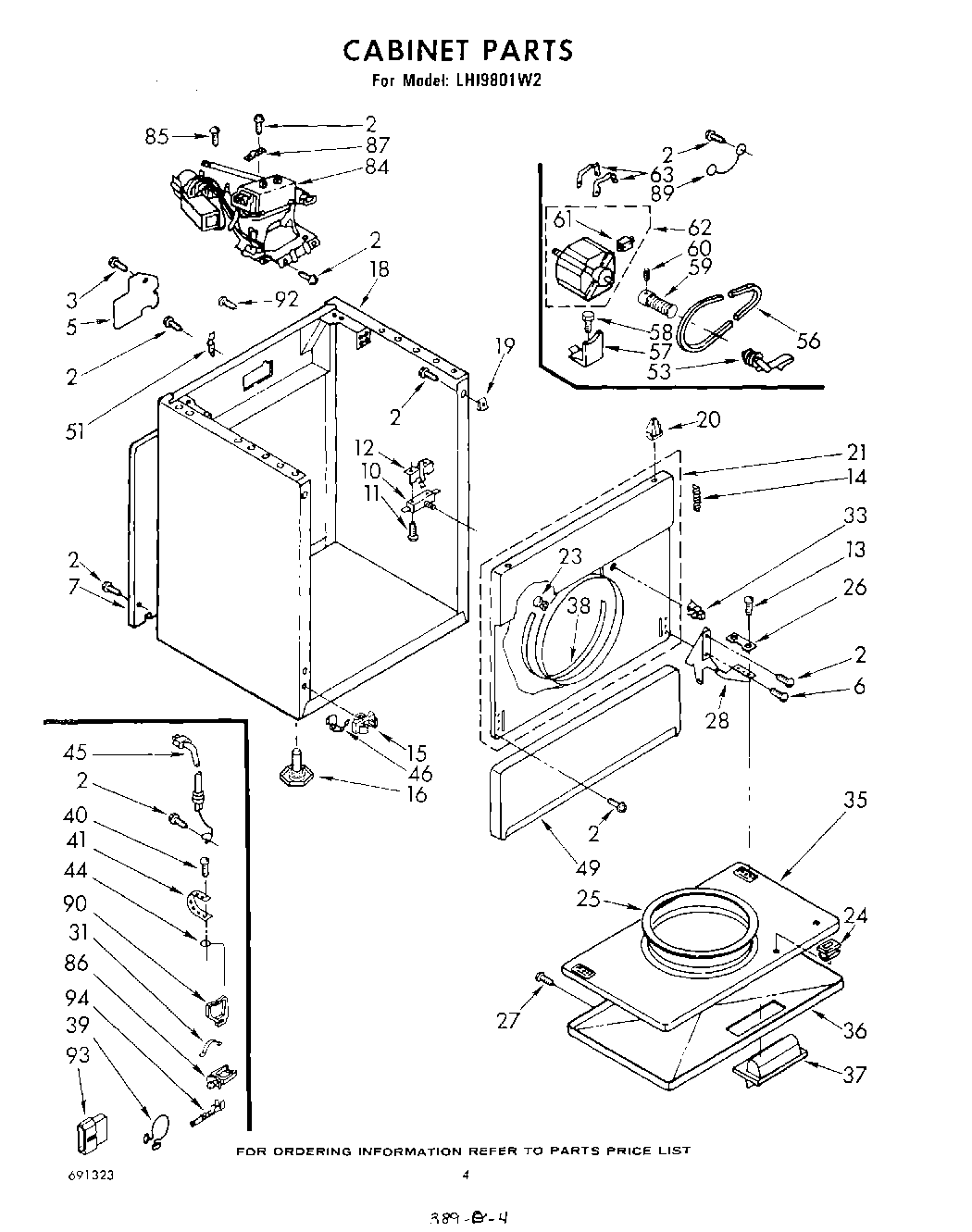

LHI9801W2 03 – CABINET

Products

Position	Product
5	W11736322 Whirlpool Cover Assembly
6	Screw, 10-32 x 1/2
7	Panel, Rear
10	Switch, Door
11	WP98129 Whirlpool Screw
12	WP691581 Whirlpool Actuator
13	WP308685 Whirlpool Microwave Screw
14	Spring, Door (2)
15	Clip, Toe Panel
16	49621 Whirlpool Leveling Feet
18	Cabinet (Coffee)
18	Cabinet (New Avocado)
18	Cabinet (Almond)
18	Cabinet (Harvest Wheat)
18	Cabinet (White)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Upper Front Panel Assembly (New Avocado)
21	Panel Assembly, Upper Front (Coffee)
21	Upper Front Panel Assembly (White)
21	Upper Front Panel Assembly (Golden Harvest)
21	Upper Front Panel Assembly (Almond)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	WP3390733 Whirlpool Door Seal Assembly
26	W11252547 Whirlpool Clip Assembly
27	Screw
28	Hinge, R.H.
28	Hinge, L.H.
31	8528351 Whirlpool Clip
35	Door, Rear (New Avocado)
35	Door, Panel (White)
35	Door, Panel (Almond)
35	Door, Panel (Golden Harvest)
35	Door, Rear (Coffee)
36	Door, Front (White)
36	Door, Front (Golden Harvest)
36	Door, Front (Almond)
36	Door, Front (New Avocado)
36	Door, Front (Coffee)
37	WP348721 Whirlpool Handle
37	Handle, Door (Coffee)
37	Handle (Almond)
37	Handle (Golden Harvest)
38	279264 Whirlpool Bearing and Seal Kit
39	Clamp, Harness
40	Screw, Ground (10-24 x 1)
41	Strap, Ground
44	WPL 364089
45	W11222083 Whirlpool Power Cord
46	WP297092 Whirlpool Clip
49	Panel, Toe (Almond)
49	Panel, Toe (Golden Harvest)
49	Panel, Toe (White)
49	WPL 689247
49	WPL 689248
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WPL 348946
60	SCREW, SET
61	279827 Whirlpool Dryer Drive Motor
61	Switch (Use W/338742 Motor)
63	WP660658 Whirlpool Clamp
84	W10402145 Whirlpool LP Gas Connection
84	WPL 688639
84	WPL 688637
84	Kit, Conversion Type 1 To Type 3 (MFD)
85	WPL 343826
86	488946 Whirlpool Air Conditioner Clamp
87	341029 Whirlpool Clamp
89	Wire, Ground (Motor)
90	Clip, Harness (Rear Bulkhead Area)
92	SCREW
93	Connector (Door Switch)
93	353424 Whirlpool Connector
94	WP94614 Whirlpool Terminal
94	WP596797 Whirlpool Terminal
