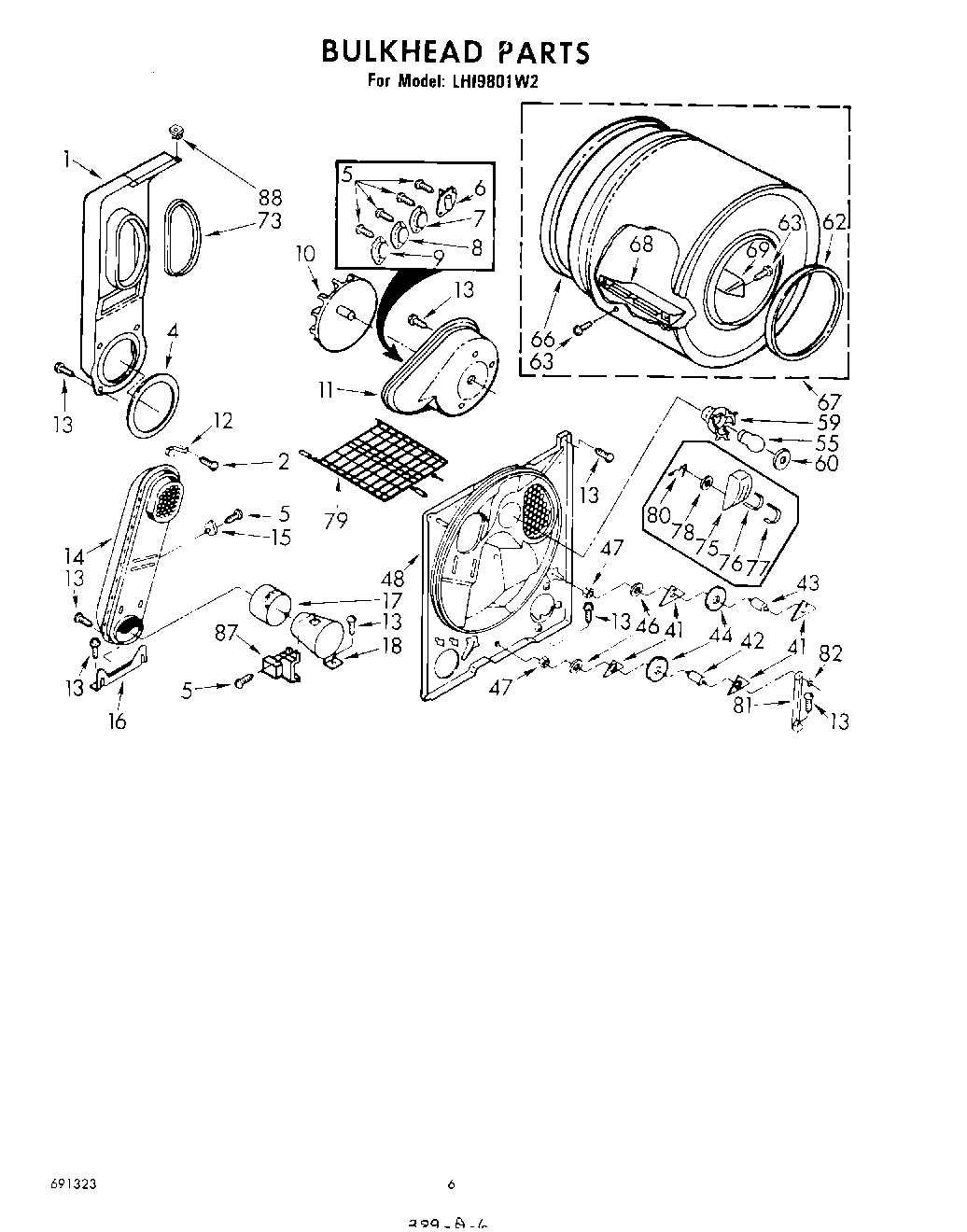

LHI9801W2 04 – BULKHEAD

LHI9801W2 04 – BULKHEAD

Written by

in

LHI9801W2 04 – BULKHEAD

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3390719 Whirlpool Dryer Thermal Fuse
7WP694674 Whirlpool Cycling Thermostat
9Operating Thermostat, 140~F (60~C)
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
15Thermostat SPST (205)
15(Alt.)
16Support, Heater Box
18279900 Whirlpool Box O/S1
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
55RANGE ONLY 40W 120V APPL BULB
59Socket Assembly
60Lens, Drum Light
62WP3394509 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66279408 Whirlpool Dryer Rear Drum Seal
67Drum Assembly
68Baffle, Drum (Long) (2)
69Baffle, Drum (Short) (1)
73SEAL
75SENSOR KIT
76WP348859 Whirlpool Electrode Assembly
77WP348860 Whirlpool Electrode
78WP298877 Whirlpool Washer
79Dry Rack Assembly
80WP342267 Whirlpool Clip
81W11684613 Whirlpool Bracket
82WP90296 Whirlpool Clip
87WP338906 Whirlpool Dryer Gas Sensor
8898460 Whirlpool Nut
