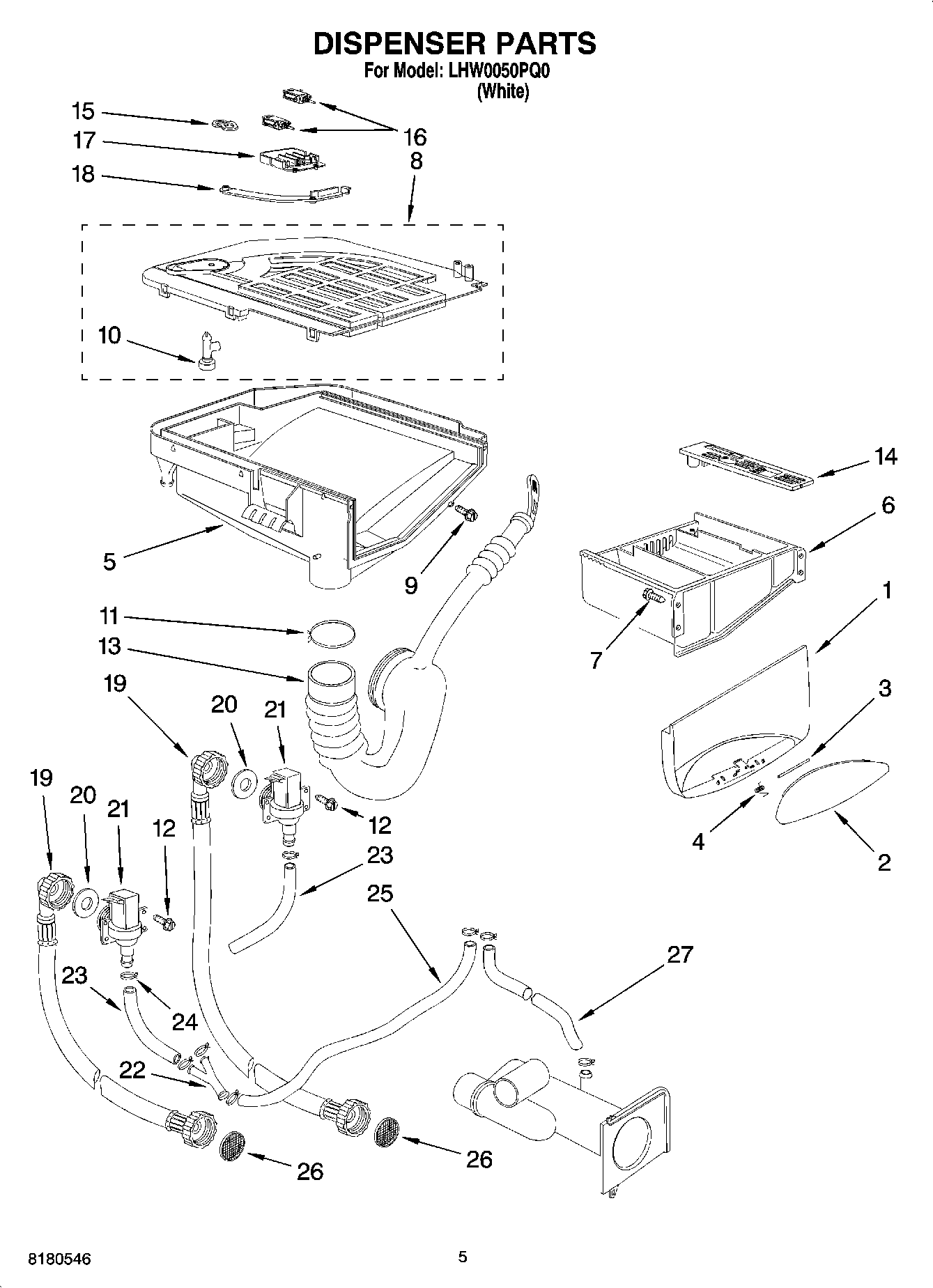

LHW0050PQ0 04 – DISPENSER PARTS

Products

PositionProduct
1Handle, Drawer
2Overlay
3Pin
4SPRING
5Housing, Dispenser
6Drawer, Detergent
7Screw
8Cover, Drawer
9Screw
10Dispenser
11WP285655 Whirlpool Hose Clamp
12Screw
13Hose, Drawer
14Cover, Bleach
15Link
16Actautor (2)
17Bracket, Actuator
18Arm
198182397 Whirlpool Fill Hose
19Hose, Fill (Cold)
20Washer
21Water Valve (Hot)
21Water Valve (Cold)
22Connector
23WP8182399 Whirlpool Hose
24Clamp, Hose (8)
26285452A Whirlpool Hose Seal and Screen
