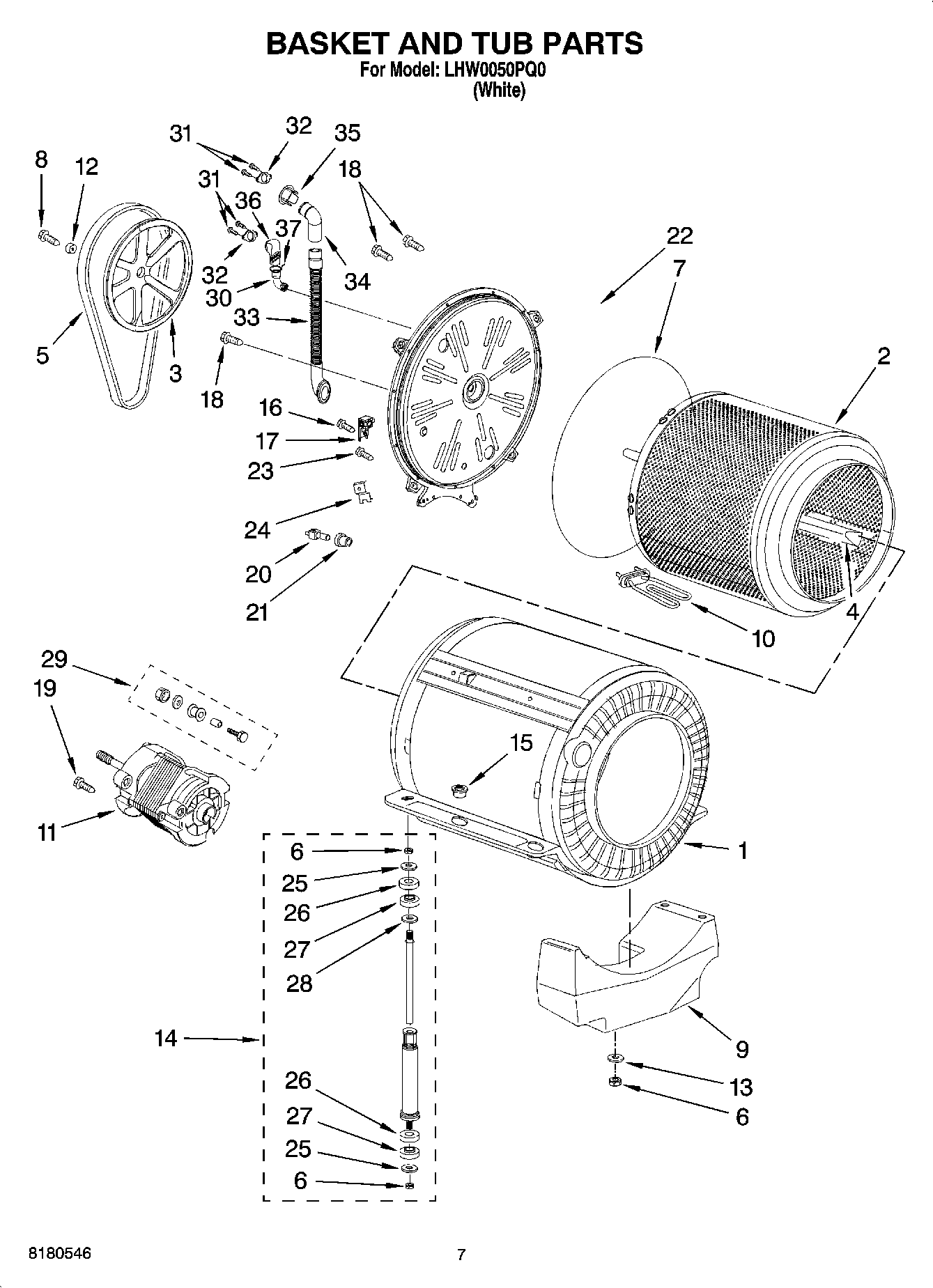

LHW0050PQ0 05 – BASKET AND TUB PARTS

Products

Position	Product
1	Tub
2	Basket
3	8182737 Whirlpool Pulley
4	Baffle
5	Drive Belt
7	Gasket, Tub
8	Screw
9	Counterweight, Bottom
10	Heater
11	Motor, Main Drive
12	Washer
13	Washer
14	Shock Absorber
15	Bushing
16	489392 Whirlpool Refrigerator Screw
17	8182456 Whirlpool Sensor Assembly
18	Screw
19	SCREW, GROUND
20	8182433 Whirlpool Sensor
21	Gasket
22	280167 Whirlpool Cover Assembly
24	Support, Element
25	Washer
26	Bushing, Upper
27	Bushing, Lower
28	Washer
29	8182739 Whirlpool Kit
30	280163 Whirlpool Hose
31	WP12990527 Whirlpool Microwave Screw
32	Ring, Locking
33	Vent Tube, Lower
34	WPL 8055063
35	WP8055228 Whirlpool Washer
37	Clamp, Hose
