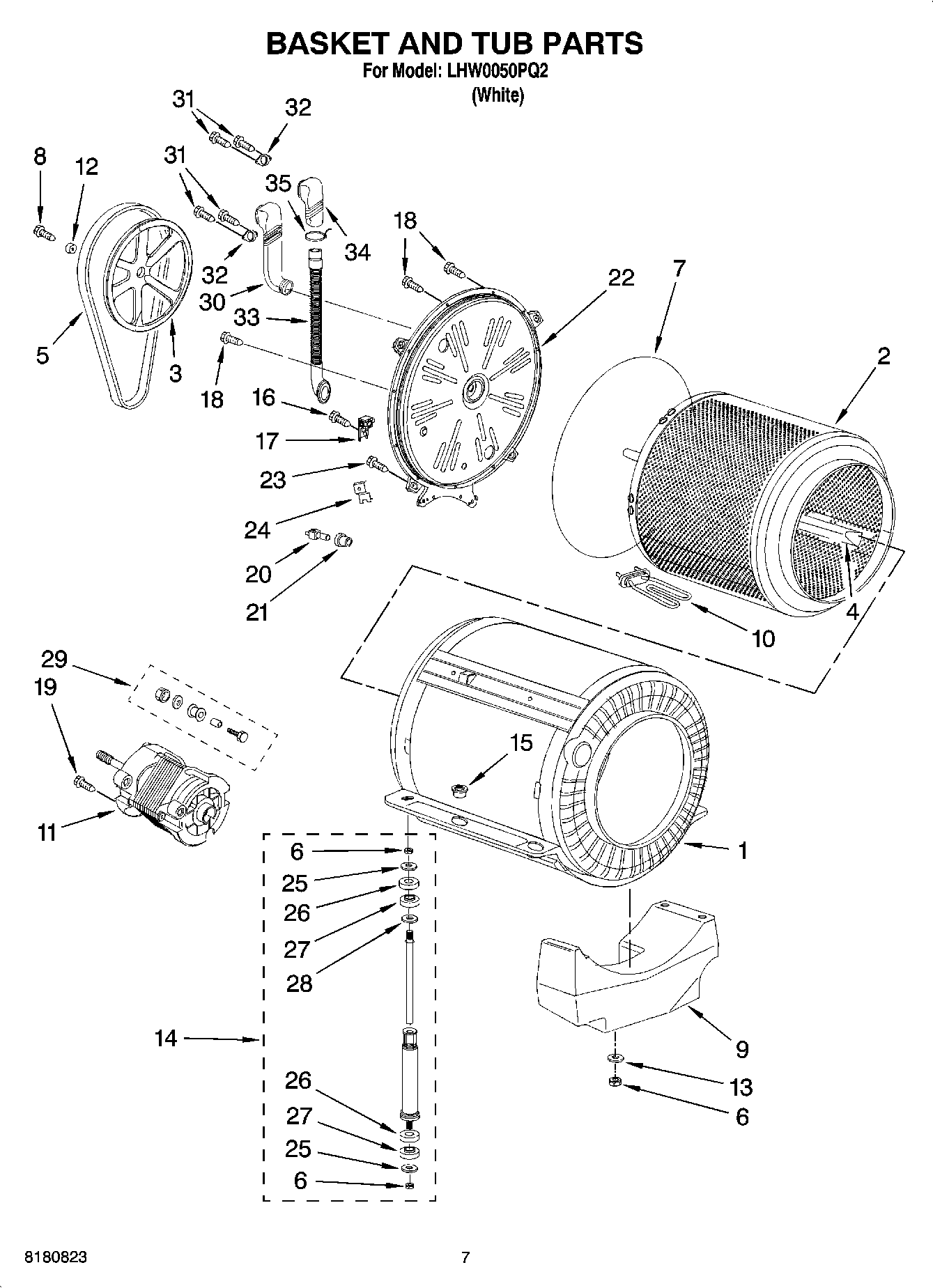

LHW0050PQ2 05 – BASKET AND TUB PARTSadmin2025-04-26T12:19:18+00:00LHW0050PQ2 05 – BASKET AND TUB PARTS
Products
| Position | Product |
|---|
| 1 | Tub |
| 2 | Basket |
| 3 | 8182737 Whirlpool Pulley |
| 4 | Baffle |
| 5 | Drive Belt |
| 6 | 8182739 Whirlpool Kit |
| 7 | Gasket, Tub |
| 8 | Screw |
| 9 | Counterweight, Bottom |
| 10 | Heater |
| 11 | Motor, Main Drive |
| 12 | Washer |
| 13 | Washer |
| 14 | Shock Absorber |
| 15 | Bushing |
| 16 | 489392 Whirlpool Refrigerator Screw |
| 17 | 8182456 Whirlpool Sensor Assembly |
| 18 | Screw |
| 19 | SCREW, GROUND |
| 20 | 8182433 Whirlpool Sensor |
| 21 | Gasket |
| 22 | 280167 Whirlpool Cover Assembly |
| 24 | Support, Element |
| 25 | Washer |
| 26 | Bushing, Upper |
| 27 | Bushing, Lower |
| 28 | Washer |
| 30 | Vent Tube, Upper |
| 31 | WP12990527 Whirlpool Microwave Screw |
| 32 | Ring, Locking |
| 33 | Vent Tube, Lower |
| 34 | Elbow, Right |
| 35 | Clamp, Hose |
