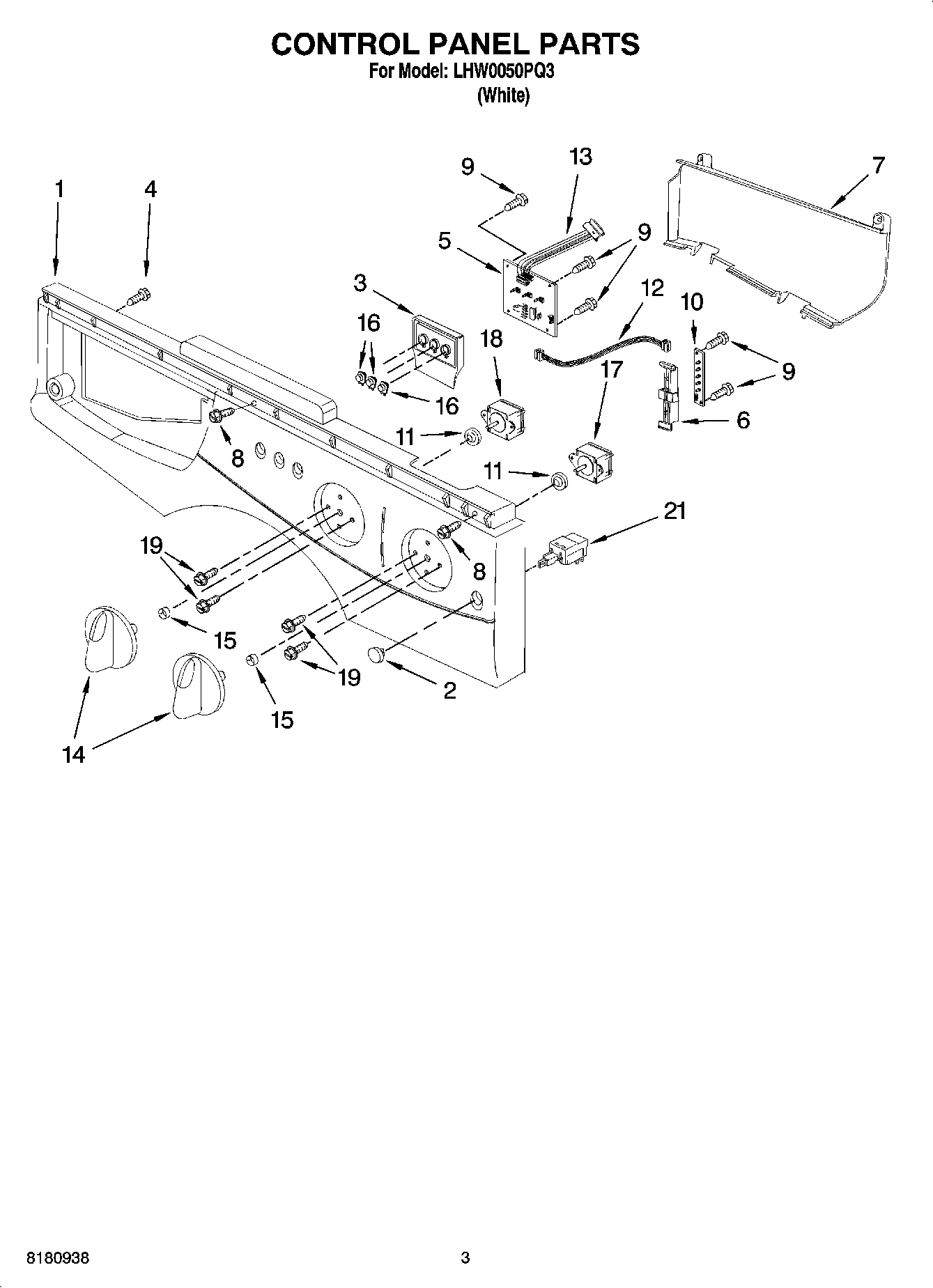

LHW0050PQ3 02 – CONTROL PANEL PARTS

LHW0050PQ3 02 – CONTROL PANEL PARTS

Written by

in

LHW0050PQ3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel
2	Button
3	Housing
4	Screw
5	Control, PCB
6	Support
7	Shield
8	WP98006631 Whirlpool Screw
9	WPW10253196 Whirlpool Screw
10	8182356 Whirlpool Light
11	Gasket
12	Cable
13	8182359 Whirlpool Wire Harness
14	Knob (2)
15	WP8182361 Whirlpool Spring
16	Push Button (3)
17	Switch, Cycle
18	Switch, Spin Speed
19	8169479 Whirlpool Microwave Screw
21	WP8182395 Whirlpool PB Switch
