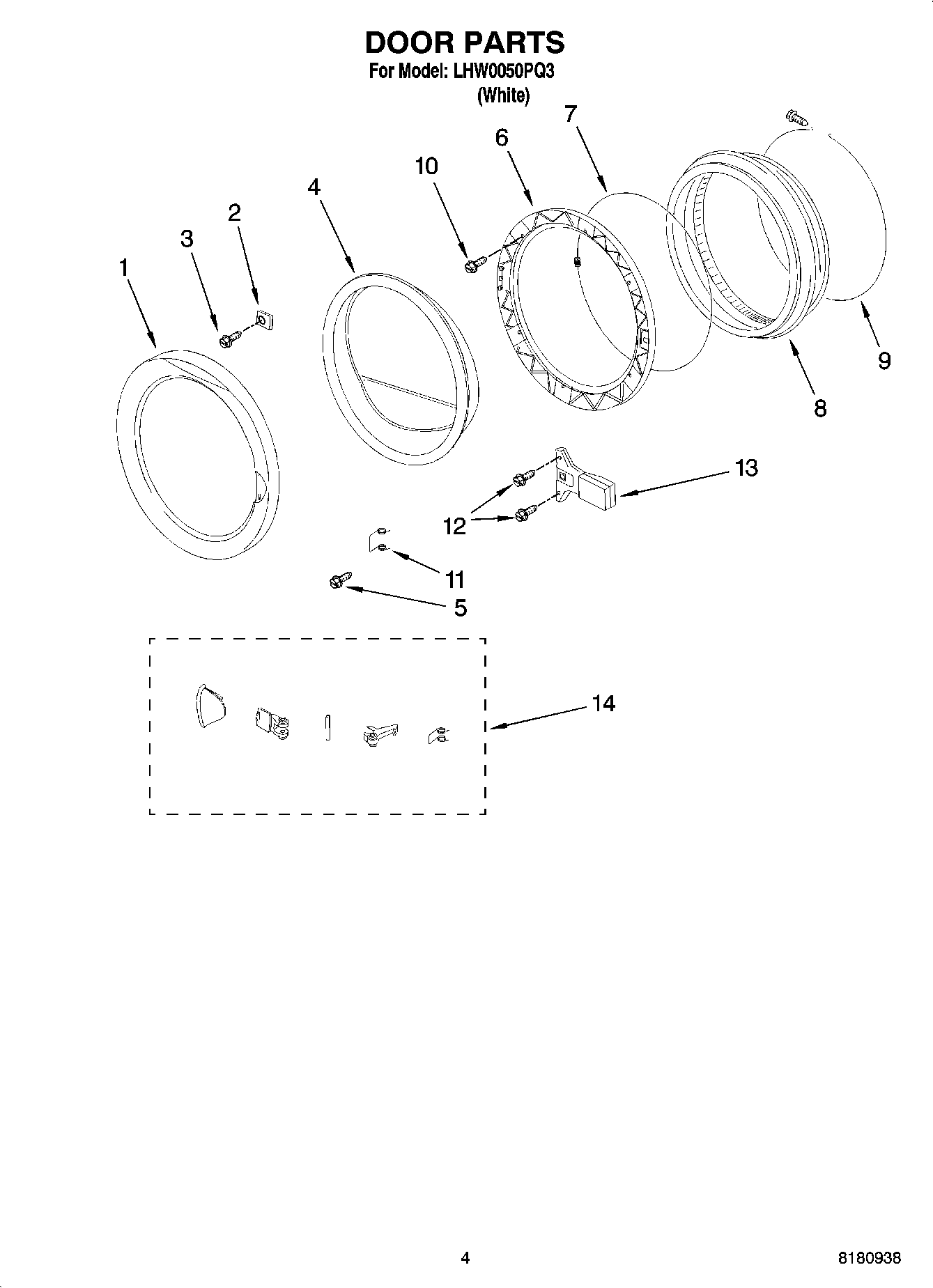

LHW0050PQ3 03 – DOOR PARTS

Written by

Products

Position	Product
1	WP8182406 Whirlpool Frame
2	Retainer Insert (Glass Door)
3	WPW10253196 Whirlpool Screw
4	Door Glass
5	WP12990527 Whirlpool Microwave Screw
6	Frame, Inner Door
7	Inner Ring
8	Door Gasket
9	Outer Ring
10	8183089 Whirlpool Screw
11	Spring, Door Catch
12	8182401 Whirlpool Screw
13	Microswitch & Bracket Assembly
14	Door Handle
