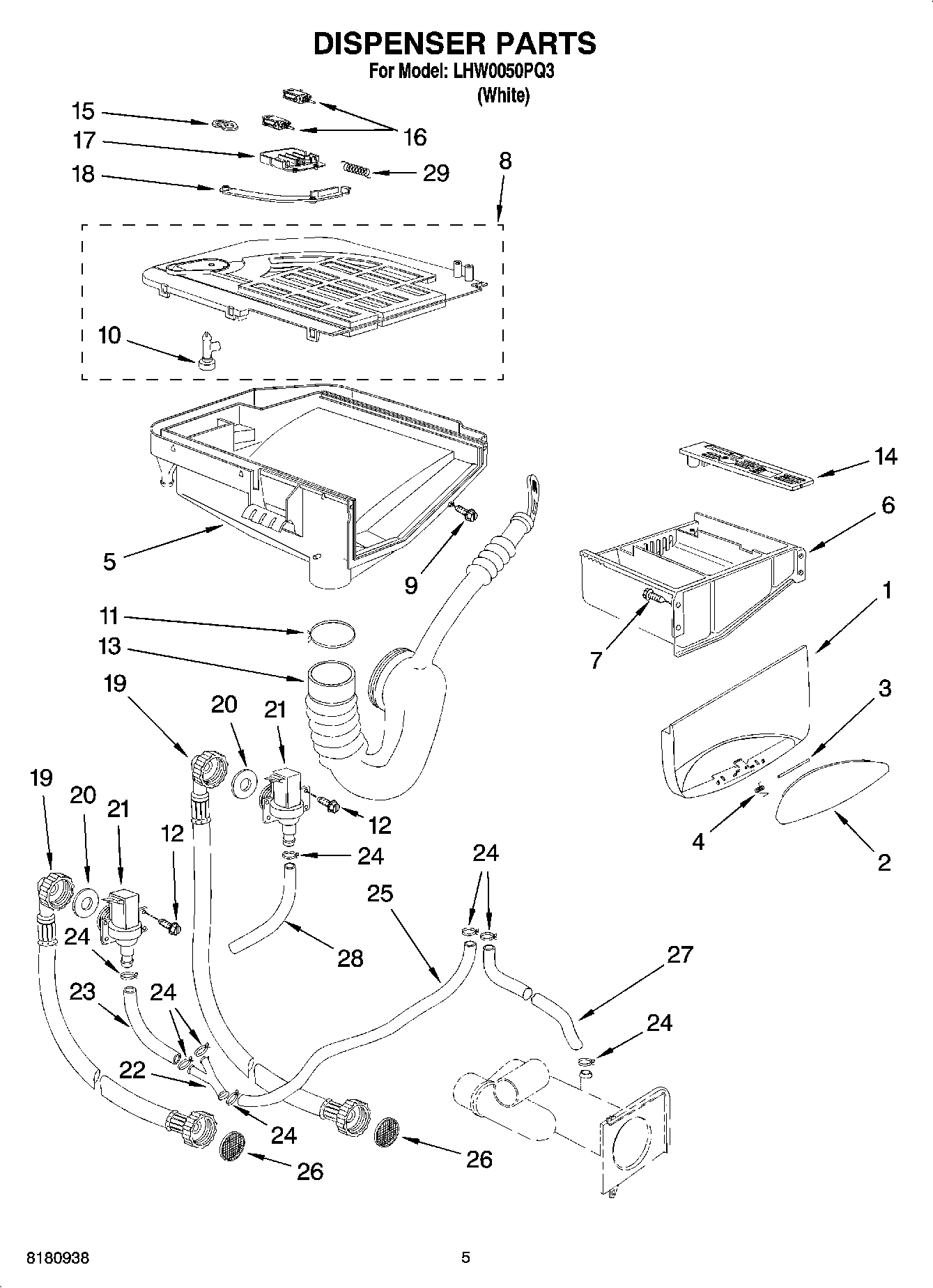

LHW0050PQ3 04 – DISPENSER PARTS

Products

Position	Product
1	Handle, Drawer
2	Overlay
3	Pin
4	8182730 Whirlpool Washer Spring
5	Housing, Dispenser
6	Drawer, Detergent
7	Screw
8	Cover, Drawer
9	Screw
10	Dispenser
11	WP285655 Whirlpool Hose Clamp
12	Screw
13	Hose, Drawer
14	Cover, Bleach
15	Link
16	Actautor (2)
17	Bracket, Actuator
18	Arm
19	Hose, Fill (Cold)
19	8182397 Whirlpool Fill Hose
20	Washer
21	Water Valve (Hot)
21	Water Valve (Cold)
22	Connector
23	WP8182399 Whirlpool Hose
24	Clamp, Hose (8)
26	285452A Whirlpool Hose Seal and Screen
29	Spring
