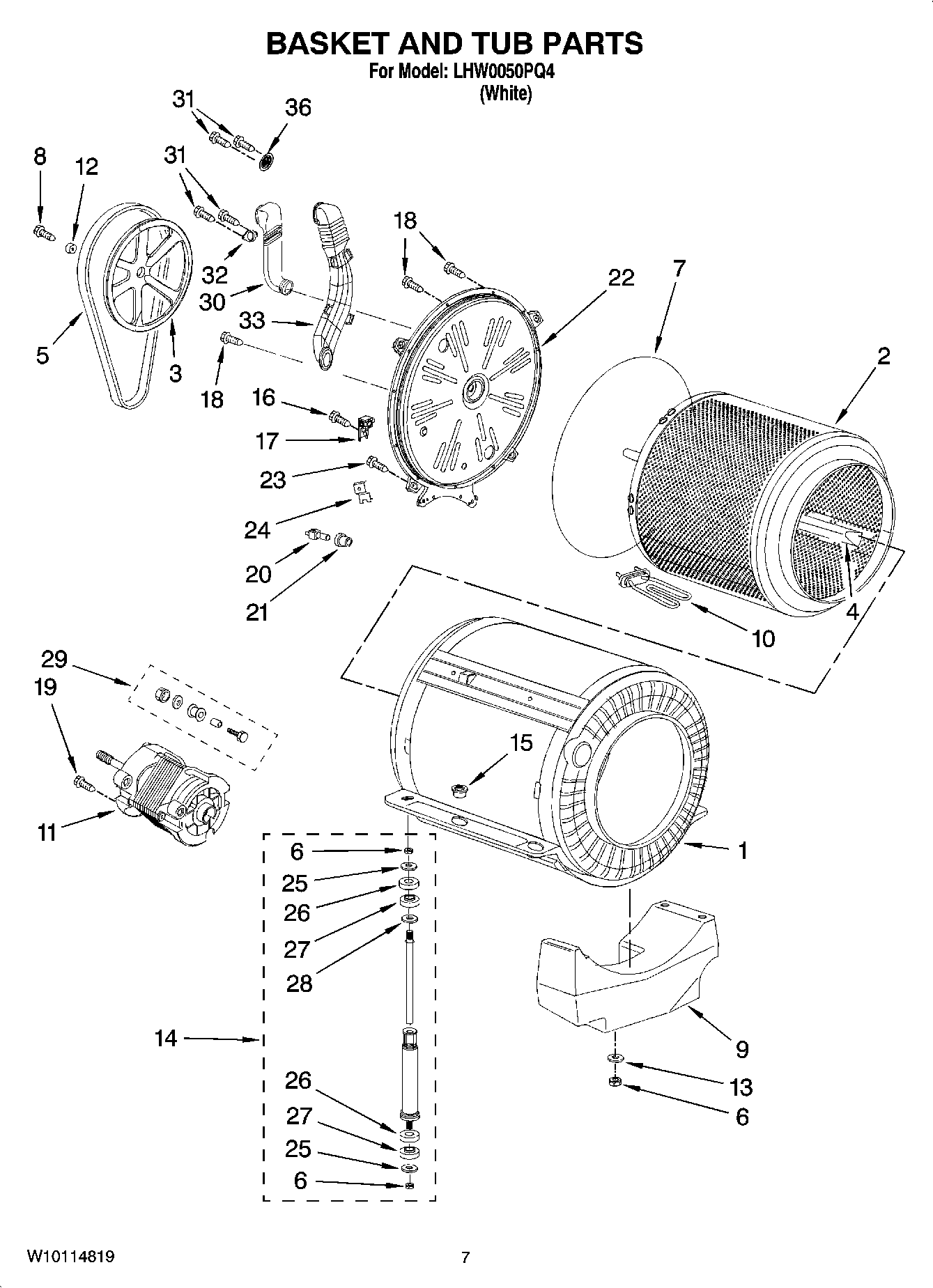

LHW0050PQ4 05 – BASKET AND TUB PARTS

Products

Position	Product
1	Tub
2	Basket
3	8182737 Whirlpool Pulley
4	Baffle
5	Drive Belt
6	8182739 Whirlpool Kit
7	Gasket, Tub
8	Screw
9	Counterweight, Bottom
10	Heater
11	Motor, Main Drive
12	Washer
13	Washer
14	Shock Absorber
15	Bushing
16	489392 Whirlpool Refrigerator Screw
17	8182456 Whirlpool Sensor Assembly
18	Screw
19	SCREW, GROUND
20	8182433 Whirlpool Sensor
21	Gasket
22	Cover, Rear Tub (Includes Seal & Bearings)
24	Support, Element
25	Washer
26	Bushing, Upper
27	Bushing, Lower
28	Washer
30	Vent Tube, Upper
31	WP12990527 Whirlpool Microwave Screw
32	Ring, Locking
33	8183133 Whirlpool Hose
36	Plate, Air Passage
