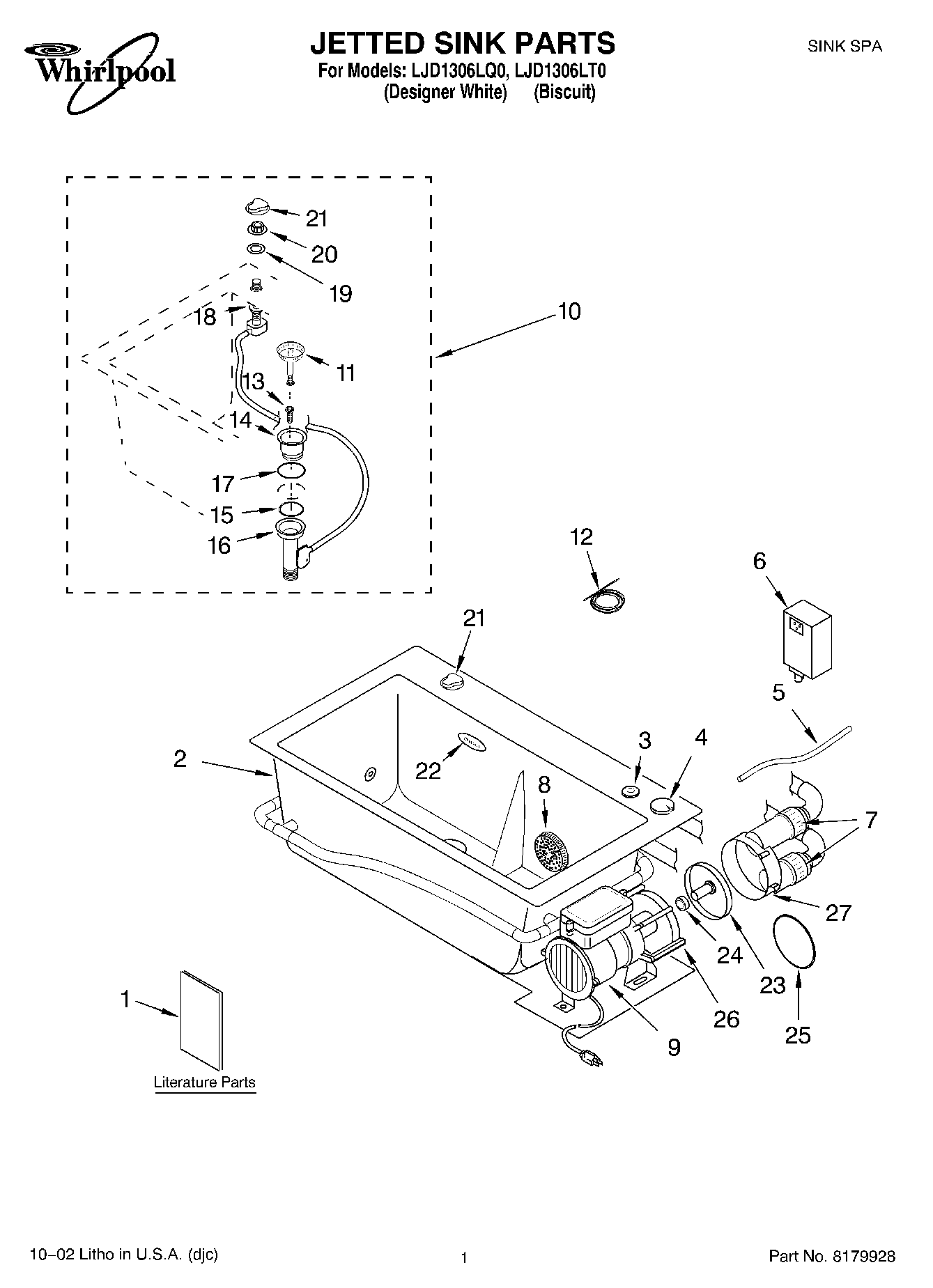

LJD1306LQ0 01 – JETTED SINK PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
2Tub (Not Serviced)
3On/Off Button (Includes Illus. 12) (White)
3On/Off Button (Includes Illus. 12) (Biscuit)
4Flow Adjust Control (Biscuit)
4Flow Adjust Control (White)
5Tubing, Flow Adjust
6Box, Timer Control
7Connectors, Pump Union (Pair)
8Suction Cover & Screw (Biscuit)
8Suction Cover & Screw (White)
9Pump
10Pop-Up Drain, Complete (White)
10Pop-Up Drain, Complete (Biscuit)
11Basket/Strainer & Screw (White)
11Basket/Strainer & Screw (Biscuit)
12Hose, Air
13Screw, Fixing
14Grating-Flange
15Gasket Seal
16Basket Body (Includes Cable)
17Seal, Sponge
18Lock Nut
19Fit Seal
20Top Nut
21Knob, Torque (Biscuit)
21Knob, Torque (White)
22Badge, Assembly
23IMPELLER
24Impeller Seal Assembly
25O-Ring
26Impeller Housing (Includes Housing Seal & O-Ring)
27Outlet Housing
