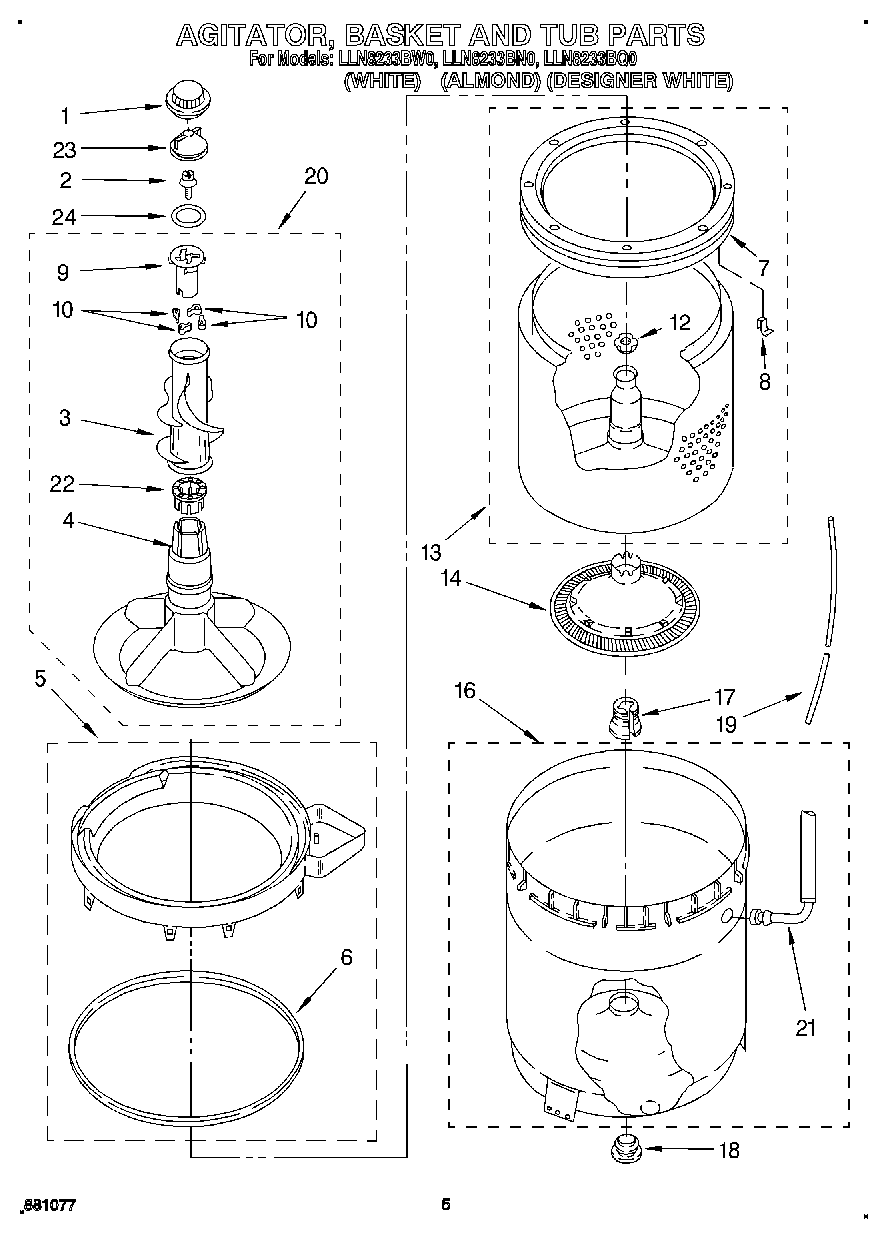

LLN8233BW0 03 – AGITATOR, BASKET AND TUB

LLN8233BW0 03 – AGITATOR, BASKET AND TUB

Written by

in

LLN8233BW0 03 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP3349019 Whirlpool Upper Agitator
4WP3350830 Whirlpool Agitator Assembly
5Tub Ring & Gasket Assembly
6WP3359586 Whirlpool Tub Seal
7WP8519815 Whirlpool Washer Balance Ring Clip
8WP3956205 Whirlpool Balance Ring
9285811 Whirlpool Washer Agitator Repair Kit
1080040 Whirlpool Washer Agitator Dog Kit
12WP21366 Whirlpool Spanner Nut
13Basket & Balance Ring
14285868 Whirlpool Washer Filter Plug Kit
16Tub
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20Agitator (Complete)
21Hose, Bleach
22285587 Whirlpool Thrust Washer
23WPW10074580 Whirlpool Agitator Inner Cap and Seal
24WPW10072840 Whirlpool Seal Assembly
