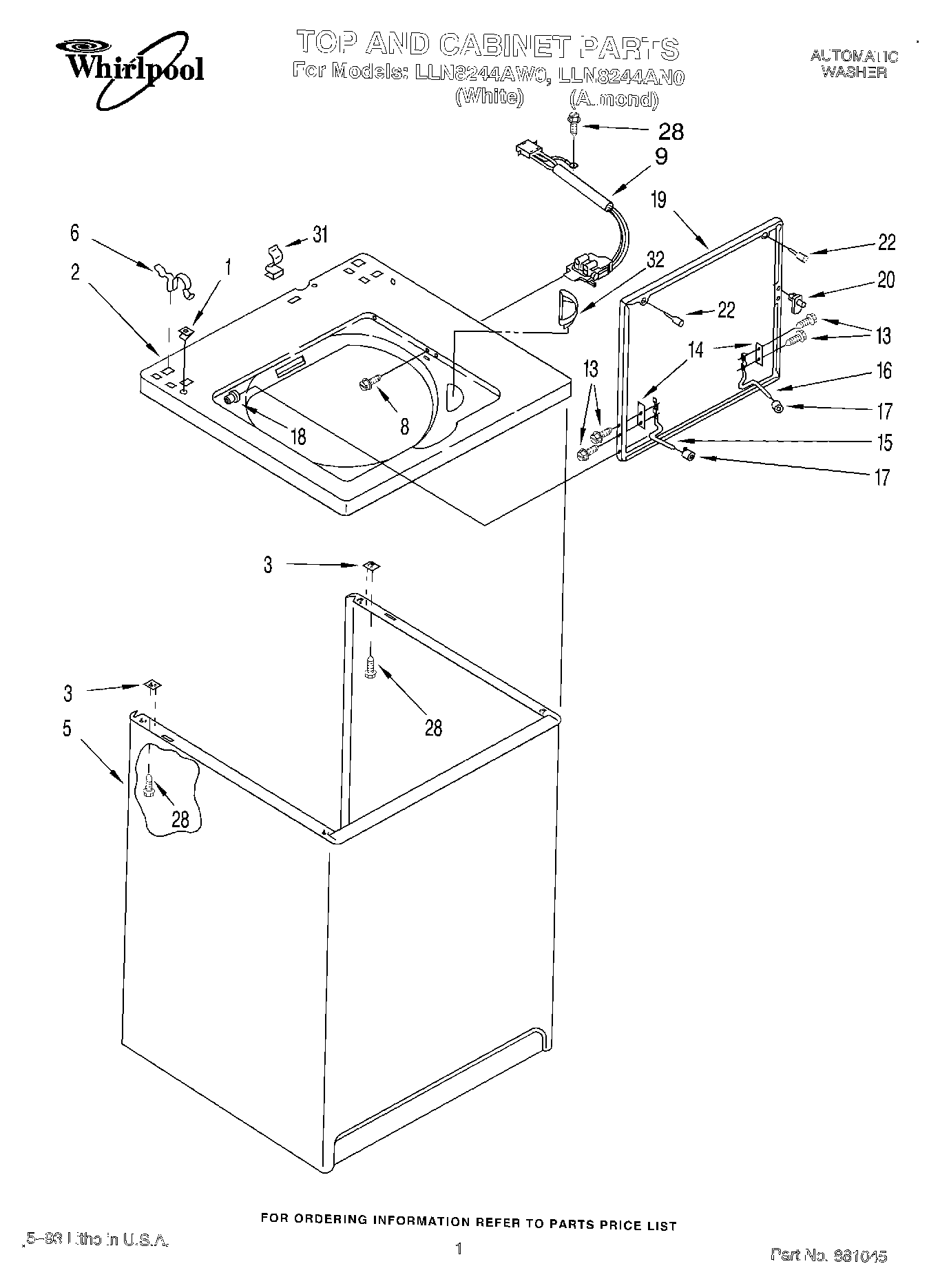

LLN8244AW0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	Label, Wiring Diagram
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	WPL 89121
	WPL LIT3358964
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	Energy Guide
	Manual, (Washer) Do-It-Yourself
	Guide, Use and Care
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	Drain Protector (Not Included)
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	285320 Whirlpool Washer Siphon Break Kit
	Almond (Uncut)
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
1	WP357213 Whirlpool Hinge Stopper
2	Top (For Almond Model)
2	Top (For White & Desinger White Models)
3	WP62750 Whirlpool Spacer
5	Cabinet (Almond)
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
9	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (For Almond Model)
19	Lid (For White And Designer White Models)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
28	SCREW
31	WP90016 Whirlpool Clip
32	WP3362952 Whirlpool Bezel
