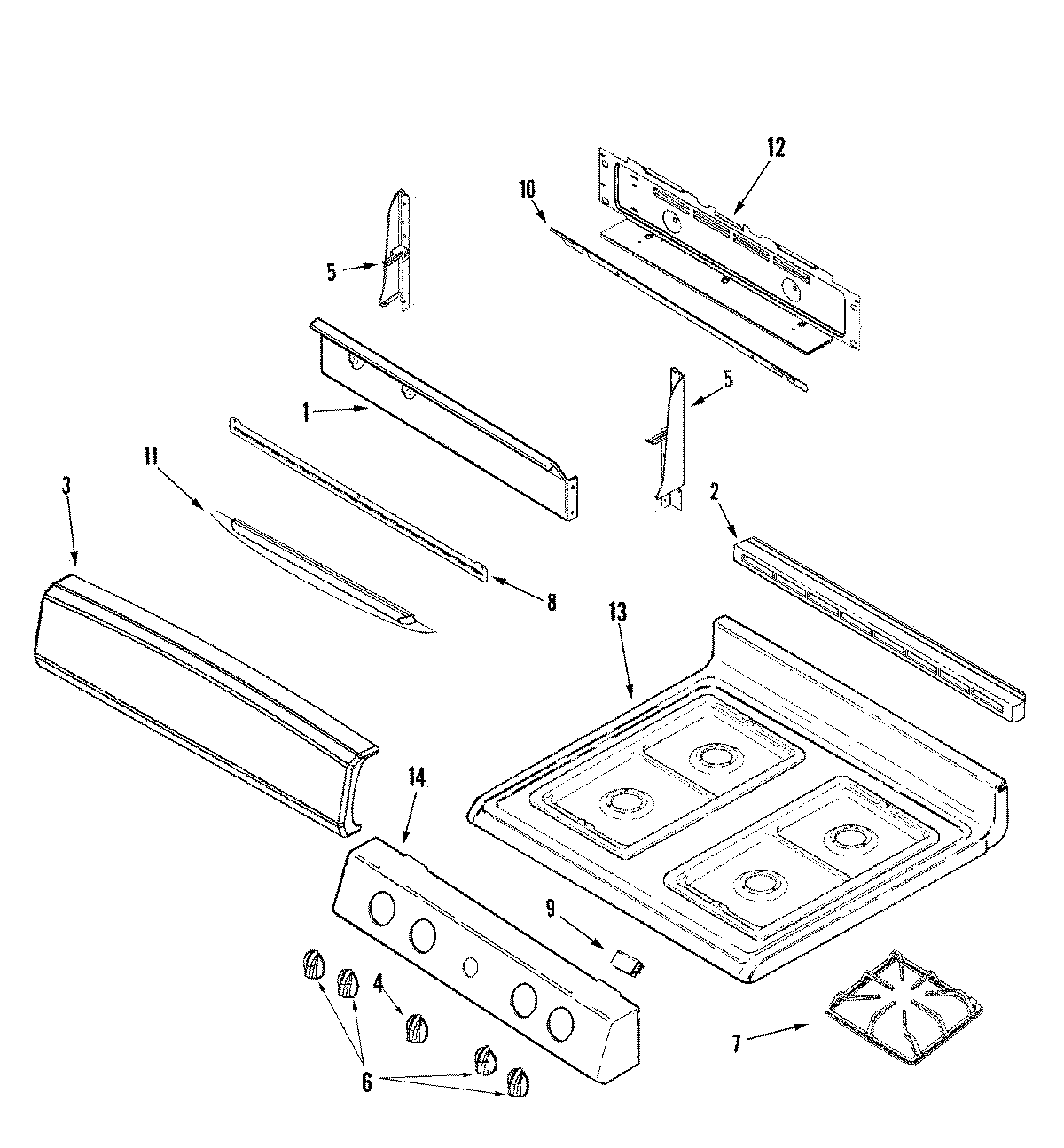

LLR1415AJW 02 – CONTROL PANEL/TOP ASSEMBLY

LLR1415AJW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

LLR1415AJW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 7101P147-60
1MAY 74009779
2SCREW (10ABX1/4P TR ZN)
2MAY 74009797
3MAY 74010735
4MAY 74010725
4MAY 74010733
5MAY 74010212
5MAY 74010713
5WP74003976 Whirlpool Screw
5WP98008545 Whirlpool Screw
7WP2003X030-00 Whirlpool Burner Grate
8MAY 74009780
9MAY 74004827
10SCREW
10MAY 74009978
11MAY 74009799
11WP98008544 Whirlpool Screw Assembly
12MAY 74006536
12WP90767 Whirlpool Screw
12MAY 74009943
12MAY 71001394
13W11189172 Whirlpool Glide Drawer
13WP74005546 Whirlpool RU Spacer
13MAY 74010710
14MAY 74010441
