LLR4451AJS 01 – BODY

LLR4451AJS 01 – BODY

Written by

in

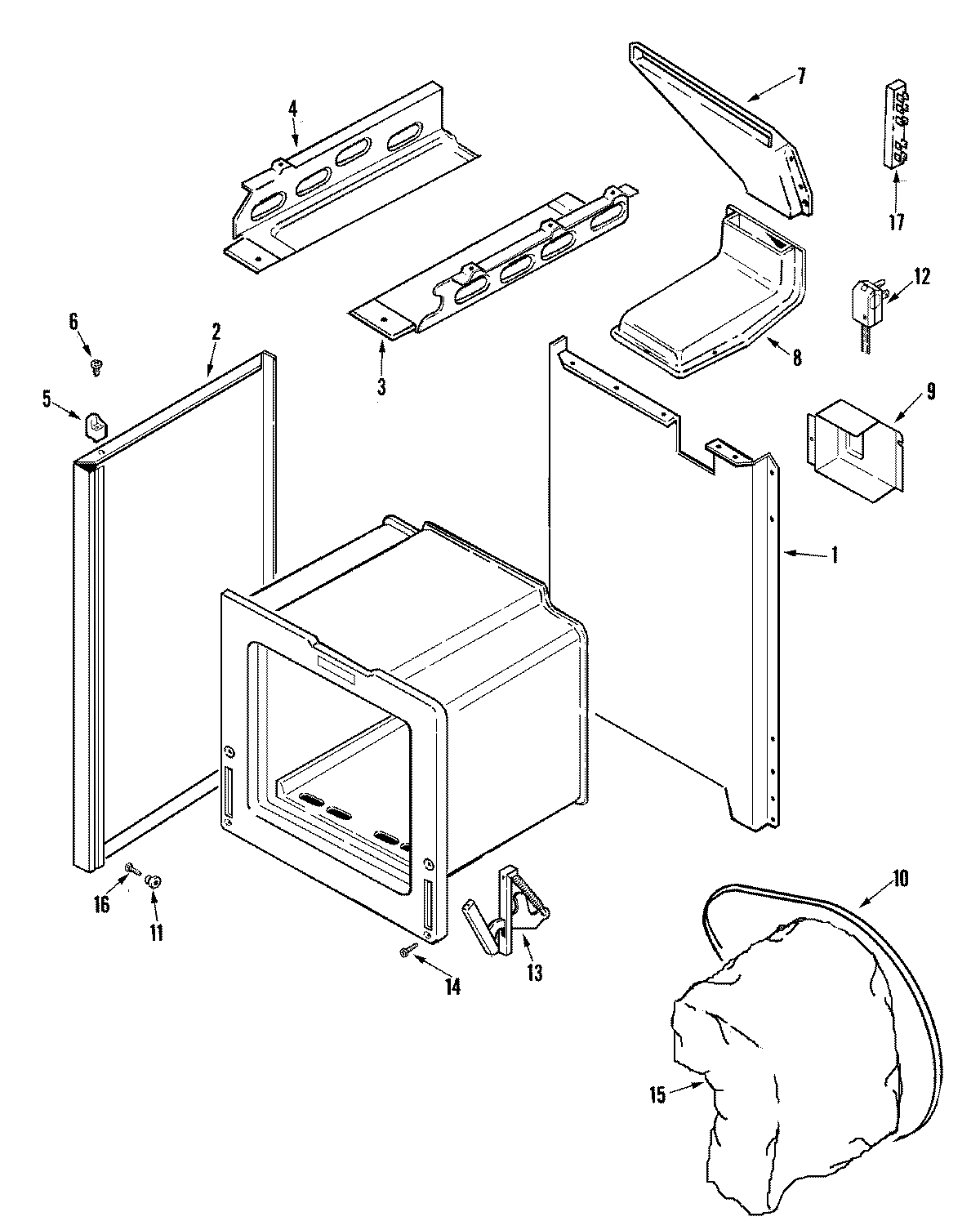

LLR4451AJS 01 – BODY

Products

PositionProduct
1WP3400074 Whirlpool Dishwasher Screw
1MAY 74009884
1GROMMET
2MAY 74003236
3MAY 74009767
4MAY 74009768
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6SCREW
7MAY 4022W007-19
8WP74003976 Whirlpool Screw
8MAY 74006420
9MAY 74004591
10MAY 74002369
11MAY 8004P024-60
12MAY 74007556
13W10876639 Whirlpool Door Hinge Assembly
14SCREW (10-24X5/16-NI)
15MAY 74002634
15MAY 74002370
16W11693756 Whirlpool Screw Assembly
17SCREW (8BX3/8-NI)
17MAY 7401P037-60
