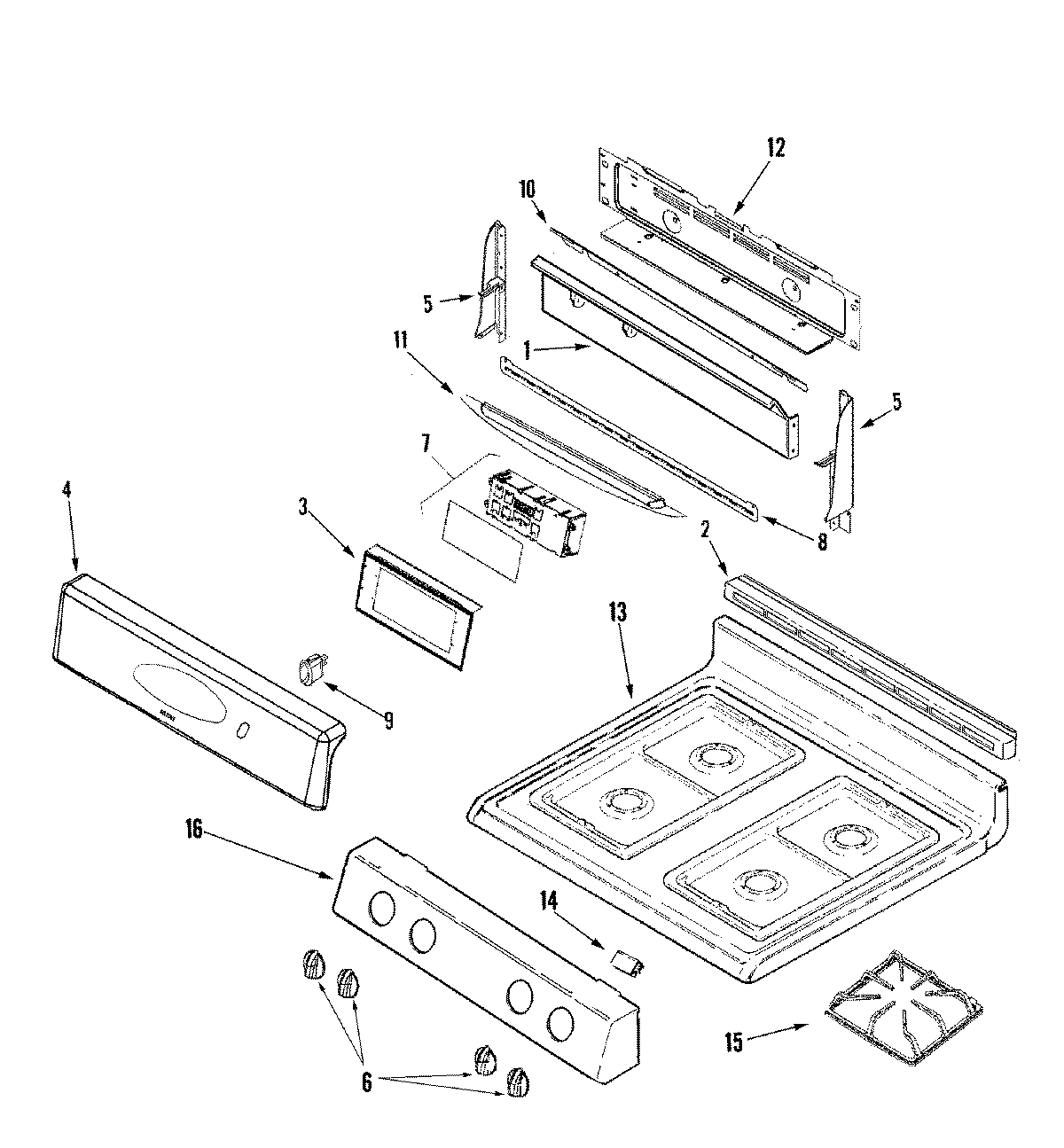

LLR4451AJW 02 – CONTROL PANEL/TOP ASSEMBLY

LLR4451AJW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

LLR4451AJW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009779
1MAY 7101P147-60
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3MAY 74008716
4MAY 74010739
5MAY 74010211
5WP98008544 Whirlpool Screw Assembly
5MAY 74010212
6WP74009775 Whirlpool Burner Knob
7WP74003976 Whirlpool Screw
7MAY 74010453
7MAY 74011147
8MAY 74009780
9WP74010226 Whirlpool RO Switch
10MAY 74009708
10SCREW
11MAY 74009799
11MAY 74009802
12MAY 74009943
12WP90767 Whirlpool Screw
12MAY 71001394
12MAY 74006536
13WP74005546 Whirlpool RU Spacer
13MAY 74010710
13W11189172 Whirlpool Glide Drawer
14MAY 74004827
15MAY 74001769
16MAY 74009829
